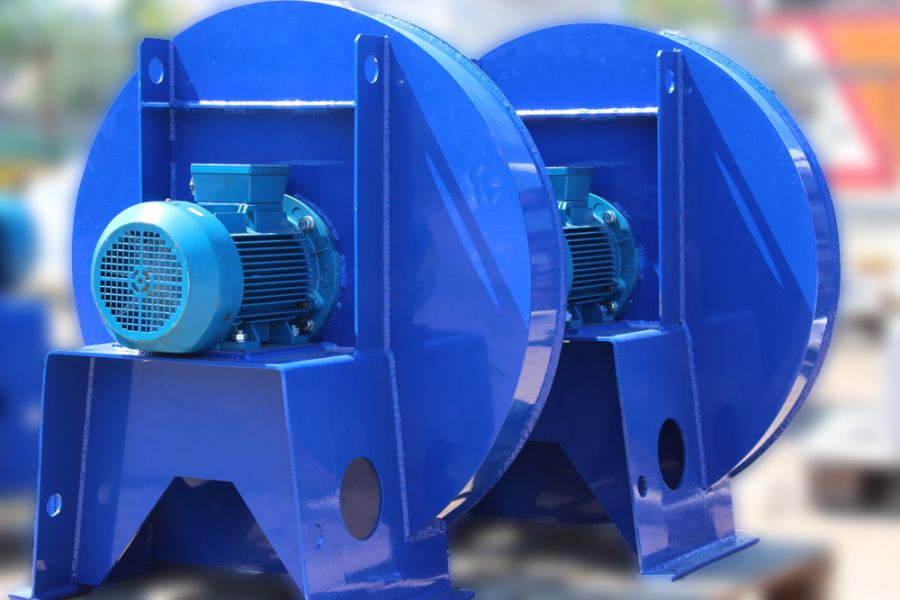

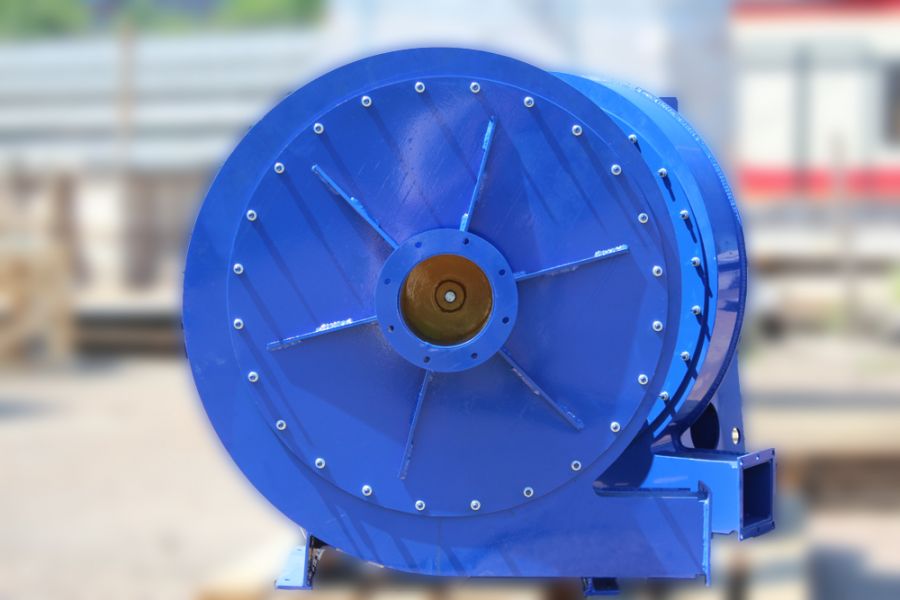

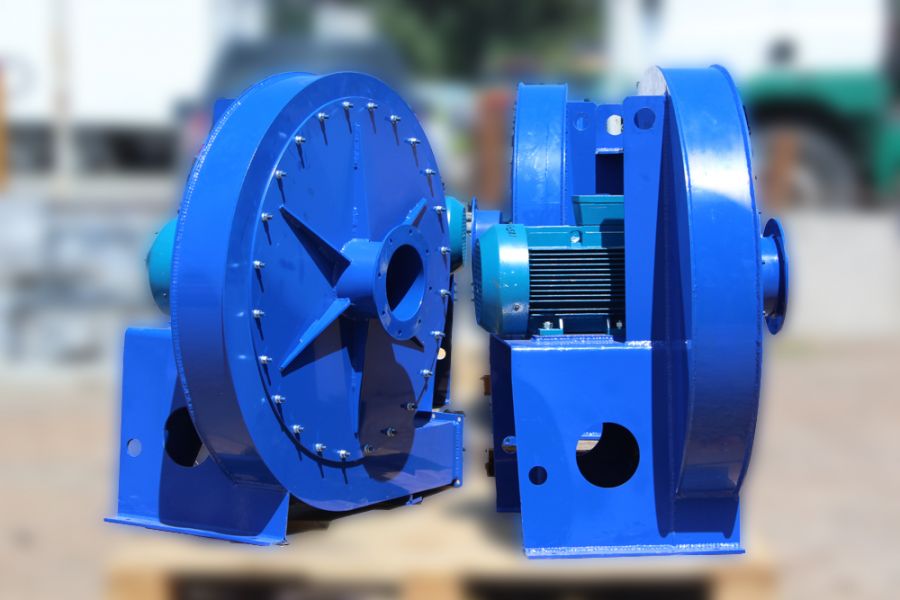

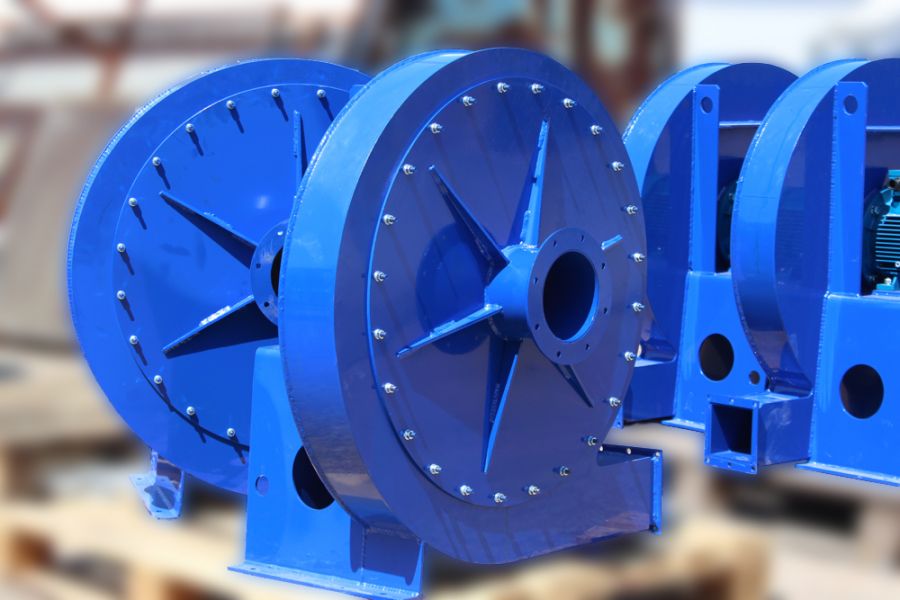

VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm

Centrifugal fan high pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm
VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm
VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm
VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm
VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm
VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm
VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm
VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm
VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm
VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm
On order
Product Code: ID35784
negotiable

High-pressure centrifugal fan series VVT-6.3 with electric motor Electric motor AIR 160 S2 15.0 Power kW 3000 Vol./Min Fan working point.: 6300 m3/hour at a pressure of 6100 Pa.

Productivity, м³/h:6300
Pressure, Pa:6100
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VVT-6.3 w/motor AIR 160 S2 15 kW 3000 rpm
Specifications
Common
Model
VVT-6.3
Productivity, м³/h
6300
Pressure, Pa
6100
Electric motor AIR 160 S2
Common
Model
AIR 160 S2
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
38
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
15.0
Vol./Min
3000
n, vol./Min
2925
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
88,4
Power factor, cosφ
0,88
Weight, kg
120
Consumed nominal current, In (A)
30
Dimension (height of rotation axis), mm
160
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,4
The ratio of starting current to the nominal, Istart/In
7,1
The ratio of starting torque to rated power, Mstart/Mn
2,2
