VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm

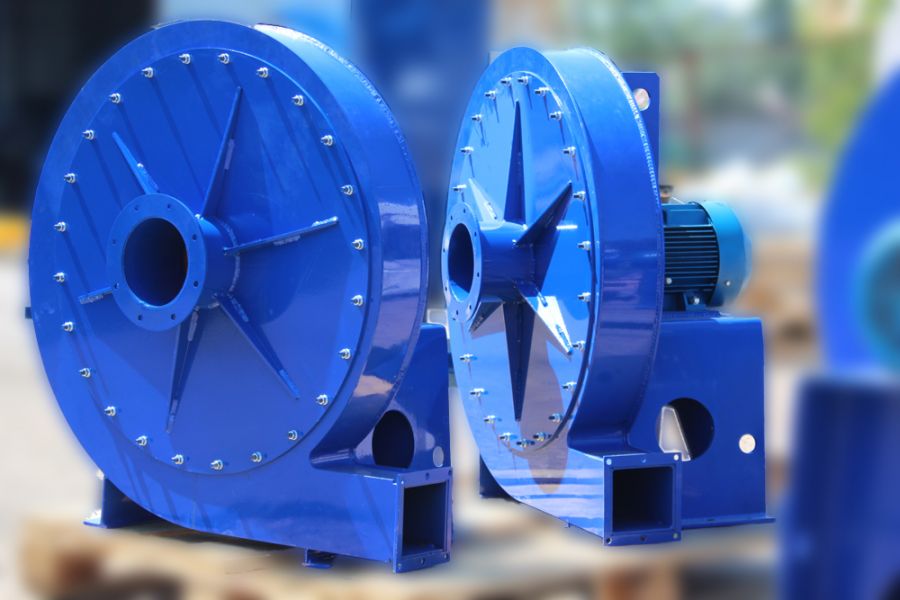

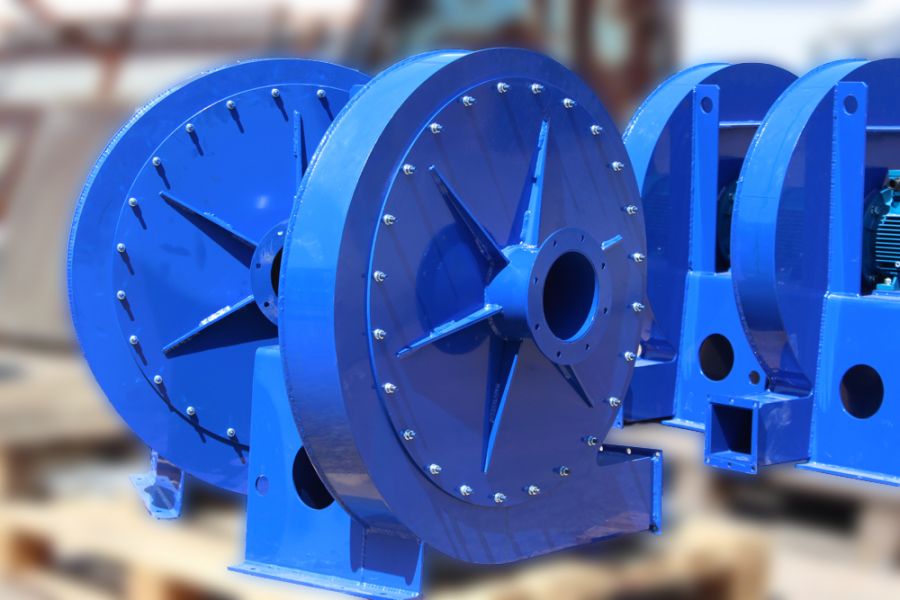

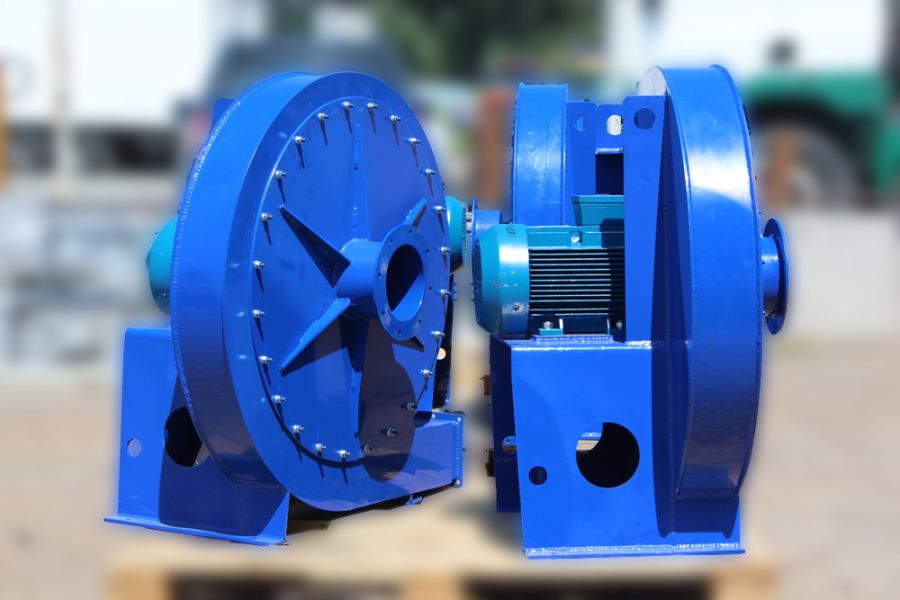

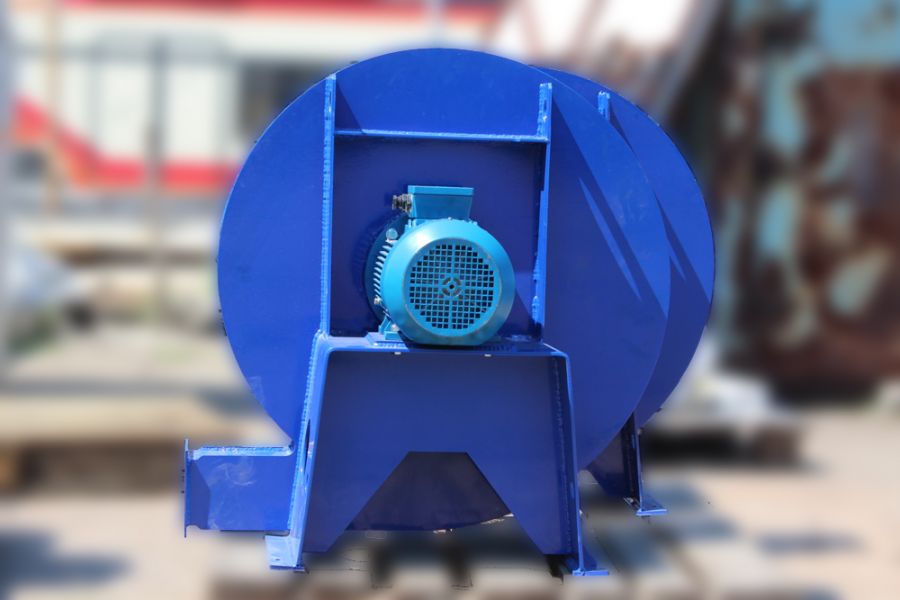

Centrifugal fan high pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm
VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm
VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm
VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm
VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm
VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm
VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm
VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm
VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm
VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm
On order
Product Code: ID35783
negotiable

High-pressure centrifugal fan series VVT-6.3 with electric motor Electric motor AIR 132 M2 11.0 Power kW 3000 Vol./Min. Fan working point.: 3200 m3/hour at a pressure of 7500 Pa.

Productivity, м³/h:3200
Pressure, Pa:7500
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VVT-6.3 w/motor AIR 132 M2 11 kW 3000 rpm
Specifications
Common
Model
VVT-6.3
Productivity, м³/h
3200
Pressure, Pa
7500
Electric motor AIR 132 M2
Common
Model
AIR 132 M2
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
38
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
11.0
Vol./Min
3000
n, vol./Min
2900
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
87,4
Power factor, cosφ
0,9
Weight, kg
83,0
Consumed nominal current, In (A)
21,8
Dimension (height of rotation axis), mm
132
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
7,2
The ratio of starting torque to rated power, Mstart/Mn
2,2
