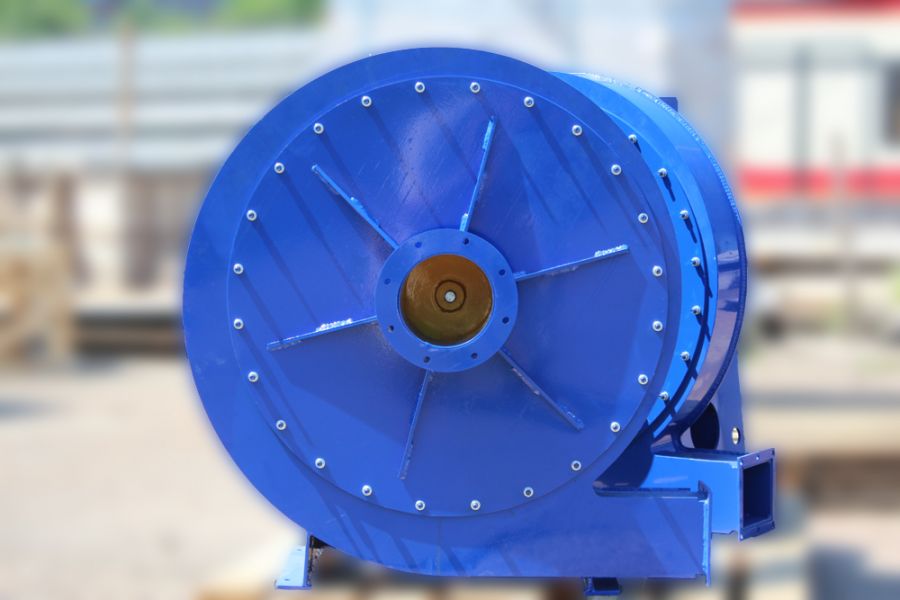

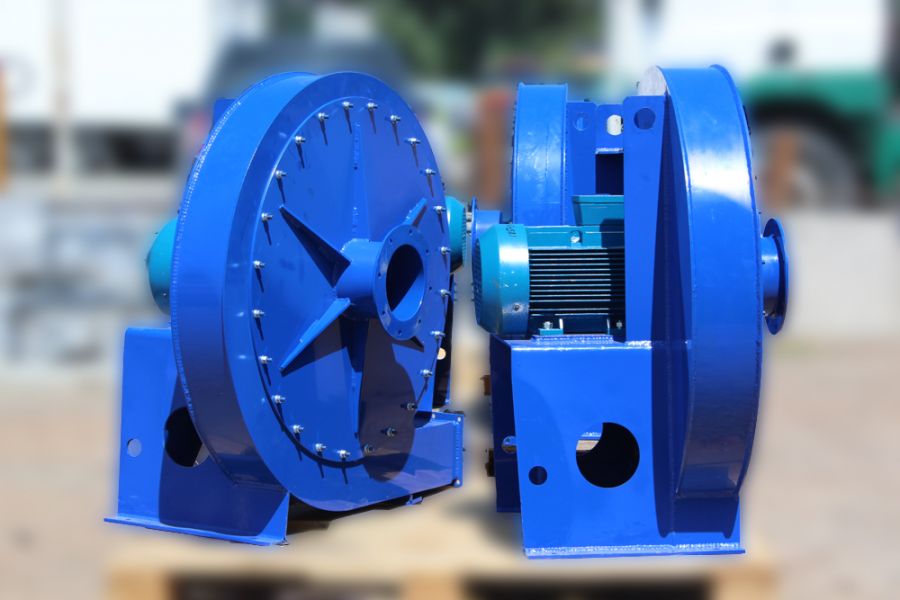

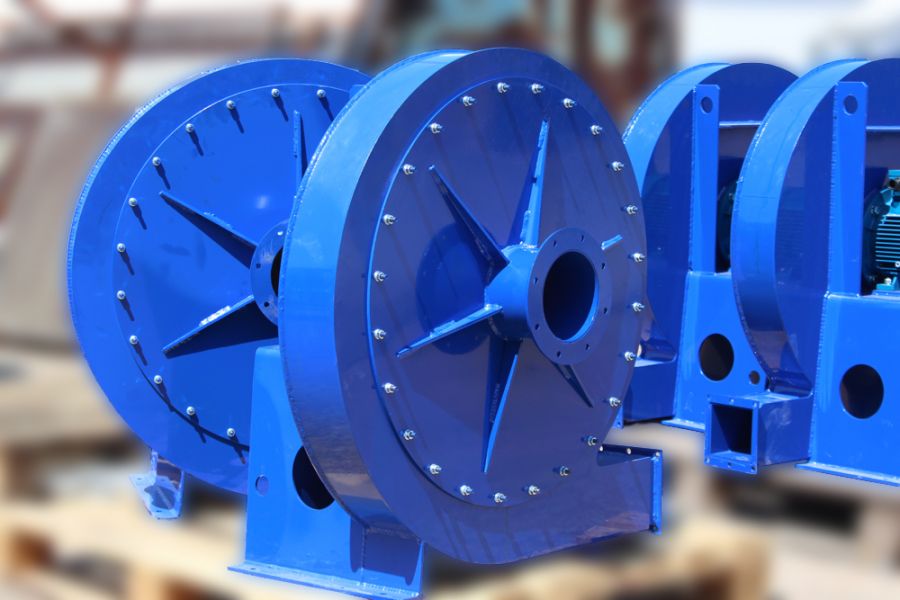

VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm

Centrifugal fan high pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm
VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm
VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm
VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm
VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm
VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm
VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm
VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm
VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm
VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm
On order
Product Code: ID35782
negotiable

High-pressure centrifugal fan series VVT-5 with electric motor Electric motor AIR 112 M2 7.5 Power kW 3000 Vol./Min. Fan working point.: 4200 m3/hour at a pressure of 5500 Pa.

Productivity, м³/h:4200
Pressure, Pa:5500
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VVT-5 w/motor AIR 112 M2 7.5 kW 3000 rpm
Specifications
Common
Model
VVT-5
Productivity, м³/h
4200
Pressure, Pa
5500
Electric motor AIR 112 M2
Common
Model
AIR 112 M2
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
32
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
7.5
Vol./Min
3000
n, vol./Min
2880
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
85,4
Power factor, cosφ
0,88
Weight, kg
49
Consumed nominal current, In (A)
15,2
Dimension (height of rotation axis), mm
112
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,4
The ratio of starting current to the nominal, Istart/In
7,2
The ratio of starting torque to rated power, Mstart/Mn
2,2
