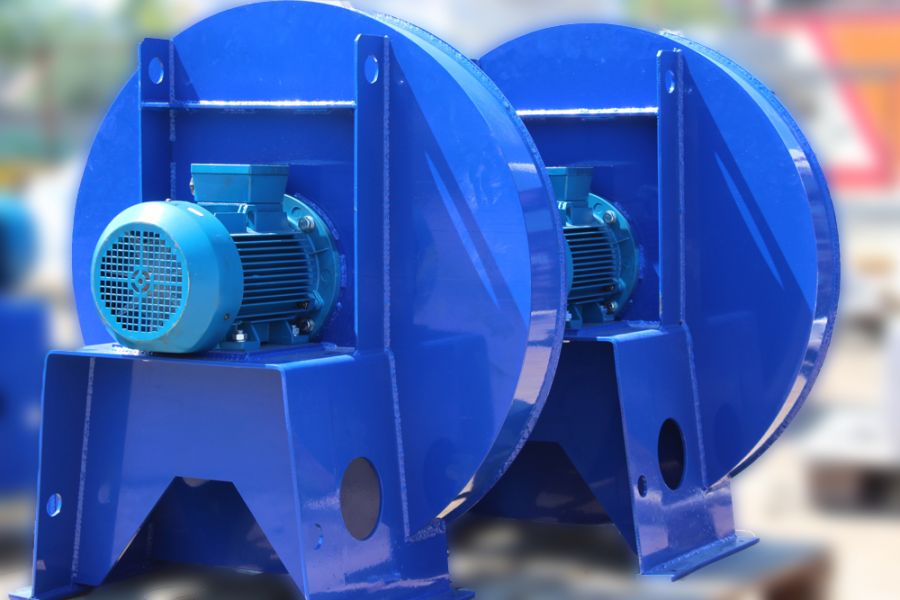

VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm

Centrifugal fan high pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm
VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm
VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm
VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm
VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm
VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm
VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm
VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm
VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm
VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm
In Stock
Product Code: ID35781
63 024₴
Found cheaper?

High-pressure centrifugal fan series VVT-5 with electric motor Electric motor AIR 100 L2 5.5 Power kW 3000 Vol./Min. Fan working point.: 2500 m3/hour at a pressure of 6000 Pa.

Productivity, м³/h:2500
Pressure, Pa:6000
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VVT-5 w/motor AIR 100 L2 5.5 kW 3000 rpm
63 024₴
Specifications
Common
Model
VVT-5
Productivity, м³/h
2500
Pressure, Pa
6000
Electric motor AIR 100 L2
Common
Model
AIR100L2
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
28
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
5.5
Vol./Min
3000
n, vol./Min
2870
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
84,8
Power factor, cosφ
0,89
Weight, kg
38
Consumed nominal current, In (A)
11
Dimension (height of rotation axis), mm
100
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
7,5
The ratio of starting torque to rated power, Mstart/Mn
2,2
