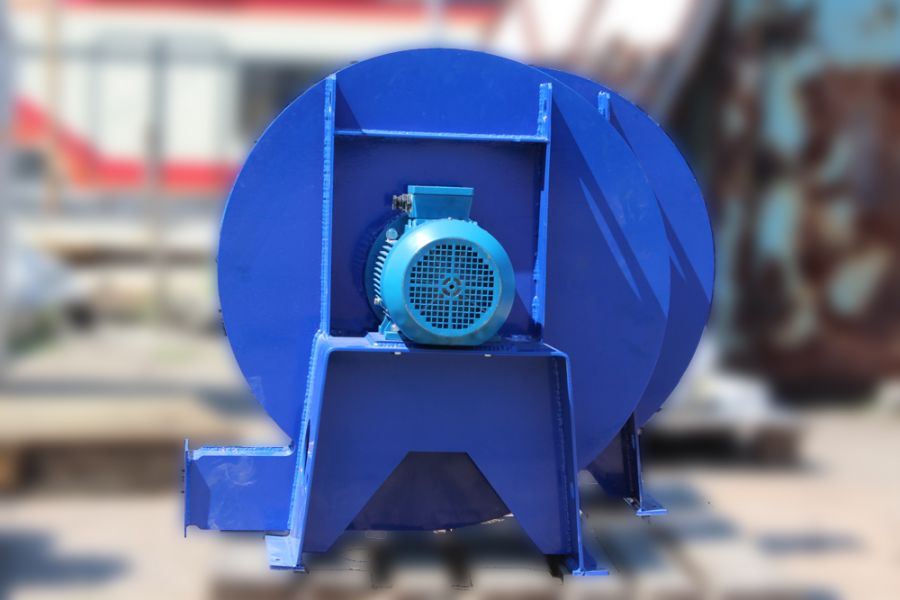

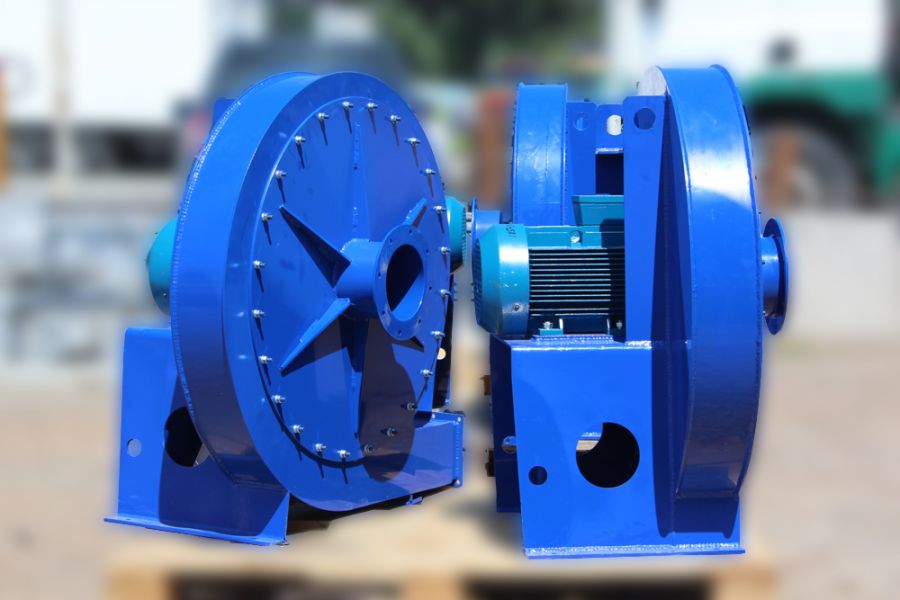

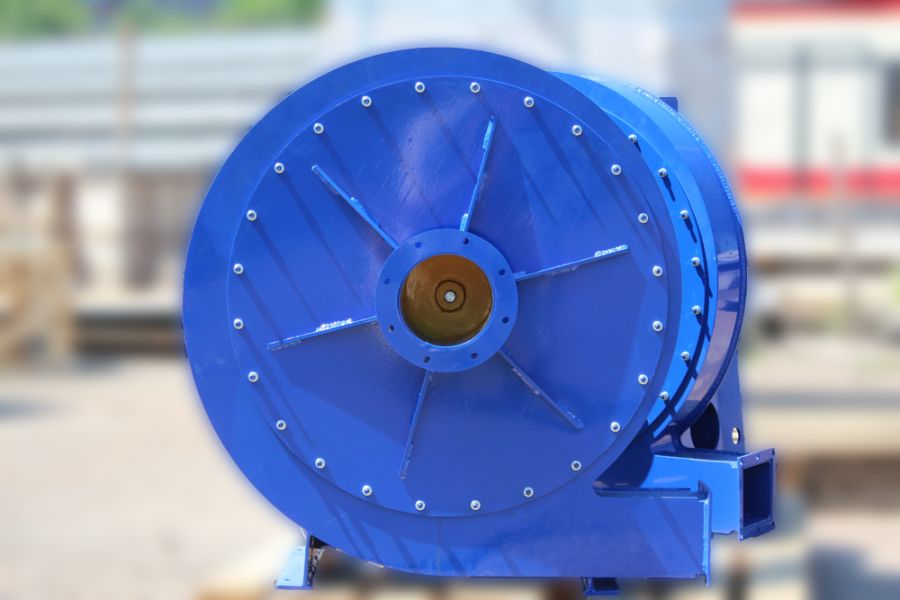

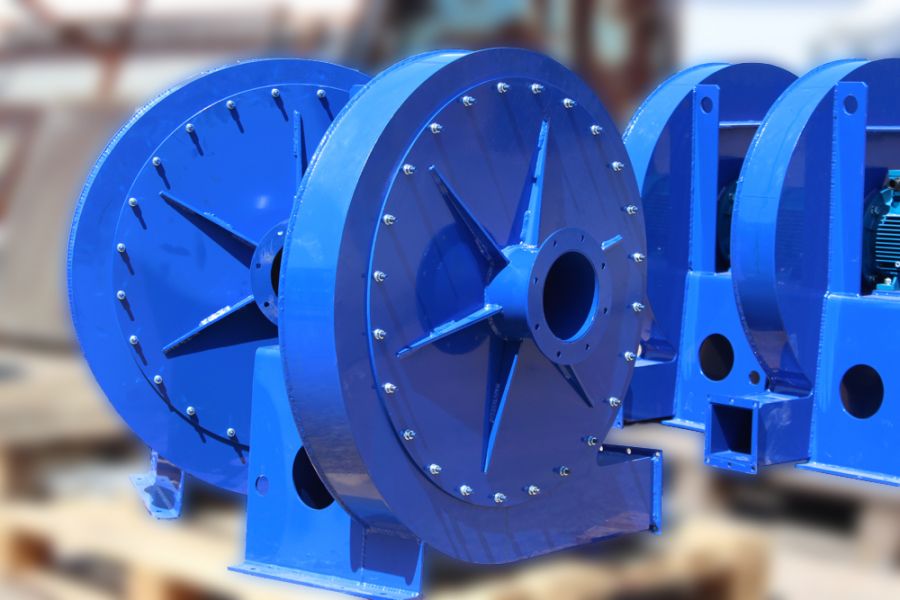

VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm

Centrifugal fan high pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm
VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm
VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm
VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm
VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm
VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm
VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm
VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm
VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm
VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm
On order
Product Code: ID35780
negotiable

High-pressure centrifugal fan series VVT-3.5 with electric motor Electric motor AIR 100 S2 4.0 Power kW 3000 Vol./Min. Fan working point.: 5500 m3/hour at a pressure of 3500 Pa.

Productivity, м³/h:5500
Pressure, Pa:3500
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VVT-3.5 w/motor AIR 100 S2 4,0 kW 3000 rpm
Specifications
Common
Model
VVT-3.5
Productivity, м³/h
5500
Pressure, Pa
3500
Electric motor AIR 100 S2
Common
Model
AIR 100 S2
Motor type
asynchronous
Kind
general industrial
Motor series
AIR
Shaft diameter, mm
28
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
4.0
Vol./Min
3000
n, vol./Min
2870
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
83,7
Power factor, cosφ
0,88
Weight, kg
33
Consumed nominal current, In (A)
8,4
Dimension (height of rotation axis), mm
100
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
7,5
The ratio of starting torque to rated power, Mstart/Mn
2,2
