VVSM-3-I

Mill centrifugal fan

Brand: КВЗ
0
All about product
Description
Specification
Aerodynamic Characteristics
Dimensions
Reviews 0
Questions0
Popular
VVSM-3-I
VVSM-3-I
VVSM-3-I
VVSM-3-I
VVSM-3-I
VVSM-3-I
VVSM-3-I
VVSM-3-I
VVSM-3-I
VVSM-3-I
VVSM-3-I
VVSM-3-I
On order
Product Code: ID16464
negotiable

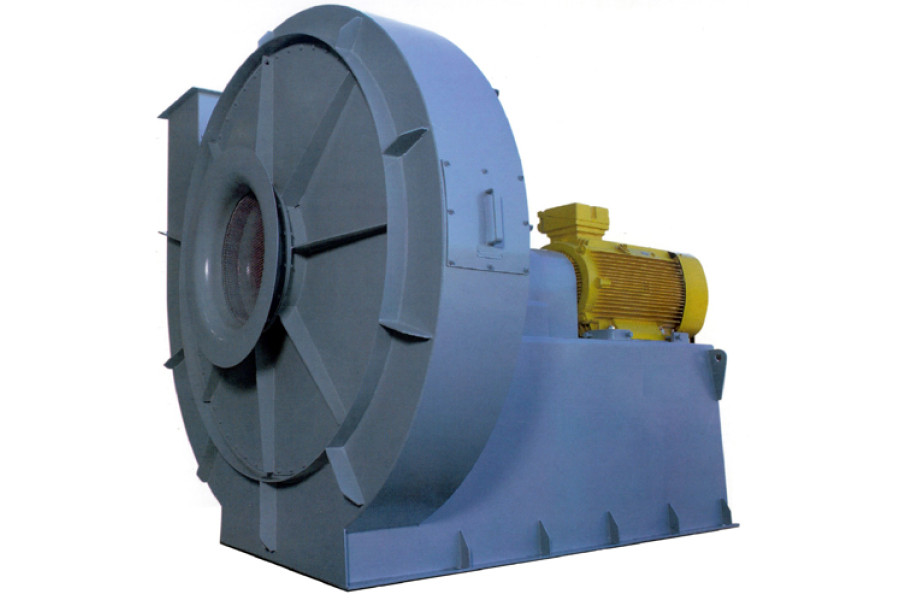

Centrifugal mill fan VVSM-3-I. Performance: 60000 m 3/hour; Total pressure: 4658 Pa.

Vol./Min:1000
Produc­tivity, m³/h:60000
Ultimate pressure, Pa:4658
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VVSM-3-I
Description

Purpose of Mill Fans VVSM-3-I

Single-inlet centrifugal mill fans VVSM-3-I are designed for pneumatic transportation of coal dust in fuel preparation systems on solid fuel-fired boilers, where fuel is ground in drum-ball mills. They can also be used in technological lines for metal production at ferrous and non-ferrous metallurgy plants. These fans generate high pressure at relatively low capacity and are subject to intensive abrasive wear from coal dust.

General Information about Mill Fans VVSM-3-I

  • Direct drive
  • Spiral-turning volute casing
  • Single-side suction
  • Number of blades – 12
  • Forward-curved blades
  • Direction of rotation – right and left

Operating Conditions for Mill Fans VVSM-3-I

The fan design allows installation after separators and cyclones and supports air flow dust content up to 80 g of coal dust per 1 m3 of air. Operation is allowed at rotational speeds up to 1000 rpm. The maximum temperature of the handled medium is 200 °C.

Casing Rotation of Mill Fans VVSM-3-I

The casing of radial mill fans can be rotated from 0° to 270° in 15° increments. Additional casing stiffeners that interfere with fixing at a specific angle are trimmed if necessary.

Right rotation (viewed from the motor side)
Casing rotation of mill fan VVSM-3-I

Left rotation (viewed from the motor side)
Casing rotation of mill fan VVSM-3-I

Specifications
Common
Model
VVSM-3-I
Motor type
AIR
Vol./Min
1000
Max. transported air temperature, °C
200
Pollution limits, mg/m3
80
Weight, kg
4420
Max. transported air temperature during 120 min, °C
80
Maximum efficiency, ηmax (%)
62
Produc­tivity, m³/h
60000
Ultimate pressure, Pa
4658

Aerodynamic Characteristics VVSM-3-I
LEGEND
Q – Capacity, thousand m3/h
H – Total pressure, daPa
Ny – Installed power, kW
η – Impeller rotation speed, rpm

Overall Dimensions of the VVSM-3-I Fan

Model Overall Dimensions, mm
A A1 a a1* B b D D1 D2 d N H h h1 h2
VVSM-3-I 2174 1514 480 300 3009 1170 1800 1100 1175 14 16 2634 950 1175 555

Model Mounting Dimensions, mm
d3 L1 L2 L3 L4 L5 L6
VVSM-3-I M24 1100 1370 700 225 700 620

Model Connection Dimensions, mm
C E N2 d2 n1 n2 t1 t2 T1 T2 T3 T4
VVSM-3-I 900 540 16 18 4 2 200 200 800 400 978 618
Reviews

There are no reviews for this product.

There are no reviews for this product, be the first to leave your review.

Answers & questions
Add your question and we will answer as soon as possible.

No questions about this product, be the first and ask your question.
