VVSM-2-I

Mill centrifugal fan

Brand: КВЗ
0
All about product
Description
Specification
Aerodynamic Characteristics
Dimensions
Reviews 0
Questions0
Popular
VVSM-2-I
VVSM-2-I
VVSM-2-I
VVSM-2-I
VVSM-2-I
VVSM-2-I
VVSM-2-I
VVSM-2-I
VVSM-2-I
VVSM-2-I
VVSM-2-I
VVSM-2-I
On order
Product Code: ID16463
negotiable

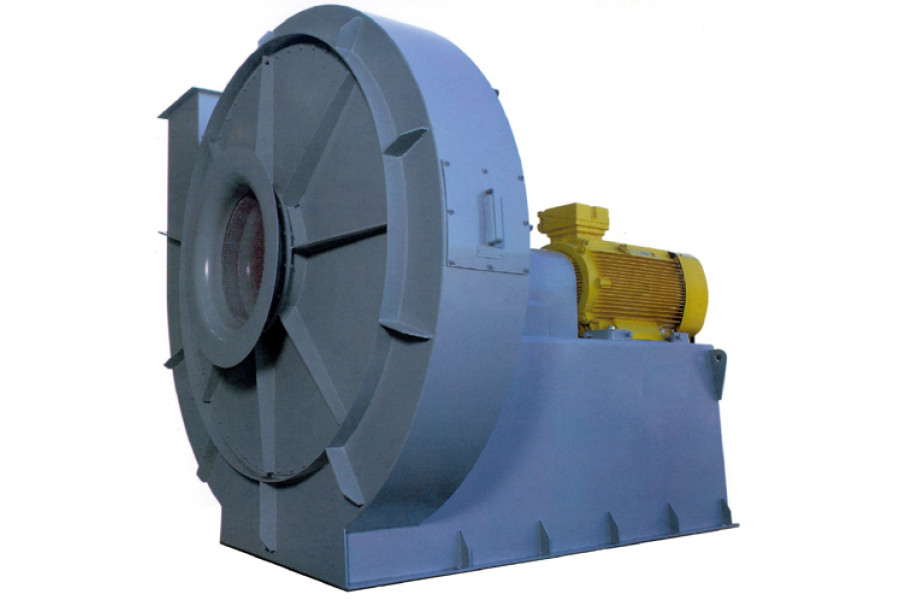

Centrifugal mill fan VVSM-2-I. Performance: 33000 m 3/hour; Total pressure: 5021 Pa.

Vol./Min:1000
Produc­tivity, m³/h:33000
Ultimate pressure, Pa:5021
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VVSM-2-I
Description

Purpose of Mill Fans VVSM-2-I

Centrifugal single-inlet mill fans VVSM-2-I are designed for pneumatic transportation of coal dust in fuel preparation systems for solid-fuel-fired boilers using drum-ball mills for grinding. They can also be used in technological lines for metal production at ferrous and non-ferrous metallurgy enterprises. These fans generate high pressure at relatively low capacity and are subject to intensive abrasive wear from coal dust.

General Information about Mill Fans VVSM-2-I

  • Direct drive
  • Spiral-scroll housing
  • Single-side suction
  • Number of blades – 12
  • Forward-curved blades
  • Direction of rotation – right and left

Operating Conditions for Mill Fans VVSM-2-I

The fan design allows installation after separators and cyclones and permits an air dust concentration of up to 80 g of coal dust per 1 m3 of air. Operation is allowed at rotation speeds up to 1000 RPM. The maximum allowable temperature of the transported medium for mill fans is 200 °C.

Housing Rotation Angles of Mill Fans VVSM-2-I

The housing of radial mill fans can be rotated from 0° to 270° in 15° increments. Additional stiffening ribs that interfere with angle fixing can be trimmed if needed.

Right rotation (viewed from the motor side)
Casing rotation of mill fan VVSM-2-I

Left rotation (viewed from the motor side)
Casing rotation of mill fan VVSM-2-I

Specifications
Common
Model
VVSM-2-I
Motor type
AIR
Vol./Min
1000
Max. transported air temperature, °C
200
Pollution limits, mg/m3
80
Weight, kg
3950
Max. transported air temperature during 120 min, °C
80
Maximum efficiency, ηmax (%)
62
Produc­tivity, m³/h
33000
Ultimate pressure, Pa
5021

Aerodynamic characteristics VVSM-2-I
LEGEND
Q - Capacity, thousand m3/h
H - Total pressure, daPa
Ny - Installed power, kW
η - Impeller speed, RPM

Overall dimensions of fan VVSM-2-I

Model Overall dimensions, mm
A A1 a a1* B b D D1 D2 d N H h h1 h2
VVSM-2-I 2086 1426 480 300 2850 1062 1700 1100 1175 14 16 2430 1600 1048 555

Model Mounting dimensions, mm
d3 L1 L2 L3 L4 L5 L6
VVSM-2-I M24 650 650 458 258 700 620

Model Connection dimensions, mm
C E N2 d2 n1 n2 t1 t2 T1 T2 T3 T4
VVSM-2-I 906 340 20 18 7 3 140 140 980 420 980 420
