VVSM-1-I

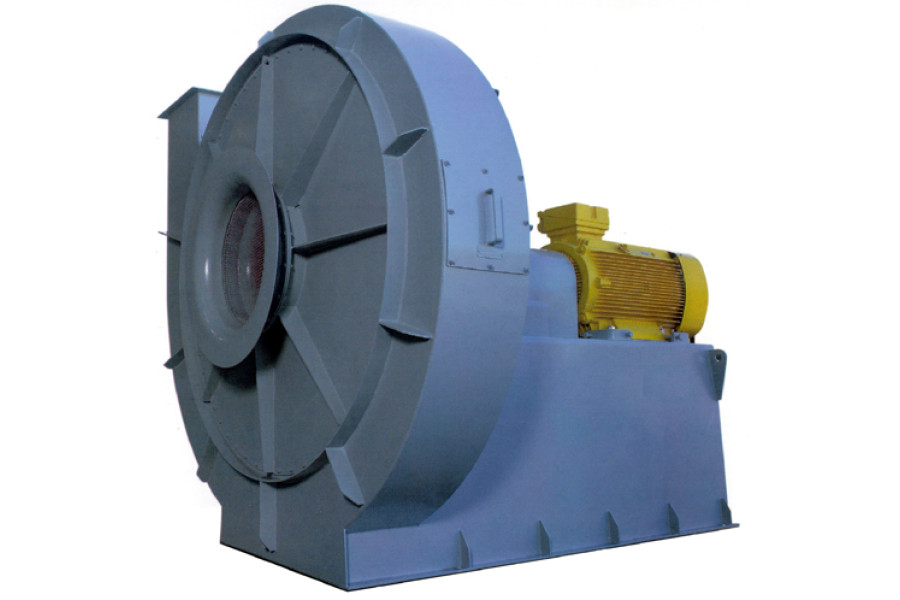

Mill centrifugal fan

Brand: КВЗ
0
All about product
Description
Specification
Aerodynamic Characteristics
Dimensions
Reviews 0
Questions0
Popular
VVSM-1-I
VVSM-1-I
VVSM-1-I
VVSM-1-I
VVSM-1-I
VVSM-1-I
VVSM-1-I
VVSM-1-I
VVSM-1-I
VVSM-1-I
VVSM-1-I
VVSM-1-I
On order
Product Code: ID16462
negotiable

Centrifugal mill fan VVSM-1-I. Performance: 14000 m3/h; Total pressure: 5198 Pa.

Vol./Min:1500
Produc­tivity, m³/h:14000
Ultimate pressure, Pa:5198
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VVSM-1-I
Description

Purpose of Mill Fans VVSM-1-I

Centrifugal single-inlet mill fans VVSM-1-I are designed for pneumatic transportation of coal dust in fuel preparation systems of solid fuel boilers using drum-ball mills. They can also be used in metal production lines at ferrous and non-ferrous metallurgy plants. These fans generate high pressure at relatively low capacity and are subject to intense abrasive wear from coal dust.

General Information about Mill Fans VVSM-1-I

  • Direct drive
  • Spiral scroll housing
  • Single-side suction
  • Number of blades – 12
  • Forward-curved blades
  • Direction of rotation – right and left

Operating Conditions of Mill Fans VVSM-1-I

The fan design is intended for installation after separators and cyclones and allows an air stream dust concentration of up to 80 g of coal dust per 1 m3 of air. Operation is allowed at speeds up to 1500 rpm. The maximum temperature of the transported medium for mill fans is 200 °C.

Casing Rotation of Mill Fans VVSM-1-I

The casing of centrifugal mill fans can be rotated from 0° to 270° in 15° increments. If additional stiffening ribs prevent angle fixation, they must be trimmed.


Right rotation (viewed from the motor side)
Casing rotation of mill fan VVSM-1-I

Left rotation (viewed from the motor side)
Casing rotation of mill fan VVSM-1-I

Specifications
Common
Model
VVSM-1-I
Motor type
AIR
Vol./Min
1500
Max. transported air temperature, °C
200
Pollution limits, mg/m3
80
Weight, kg
1850
Max. transported air temperature during 120 min, °C
80
Maximum efficiency, ηmax (%)
62
Produc­tivity, m³/h
14000
Ultimate pressure, Pa
5198

Aerodynamic characteristics VVSM-1-I
LEGEND
Q - Capacity, thousand m3/h
H - Total pressure, daPa
Ny - Installed power, kW
η - Impeller speed, rpm

Overall dimensions of the fan VVSM-1-I

Model Overall dimensions, mm
A A1 a a1* B b D D1 D2 d N H h h1 h2
VVSM-1-I 1955 1410 360 365 2540 1000 1500 830 875 12 16 2150 1400 928 555
Model Mounting dimensions, mm
d3 L1 L2 L3 L4 L5 L6
VVSM-1-I M24 650 650 418 262 700 620
Model Connection dimensions, mm
C E N2 d2 n1 n2 t1 t2 T1 T2 T3 T4
VVSM-1-I 822 300 20 18 7 3 130 130 910 390 910 390
