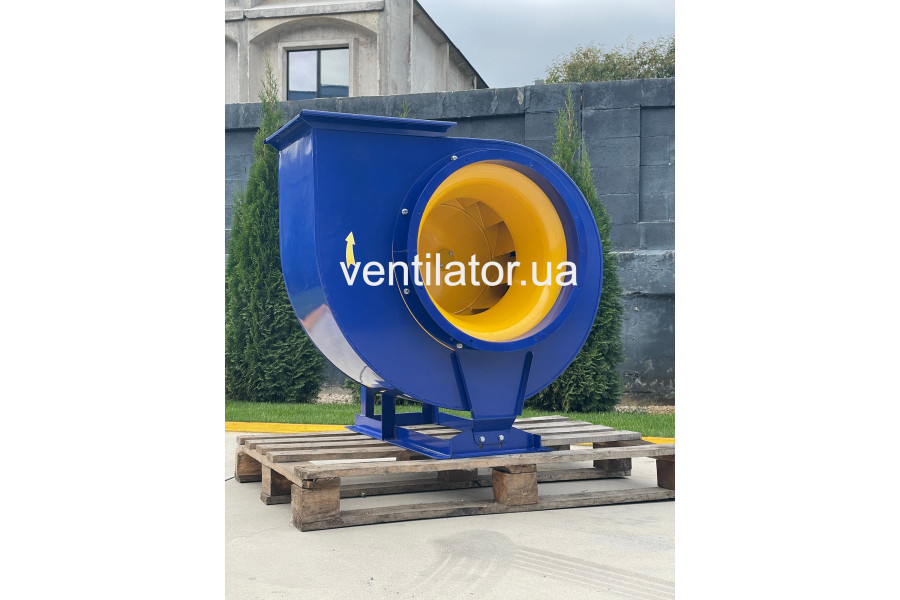

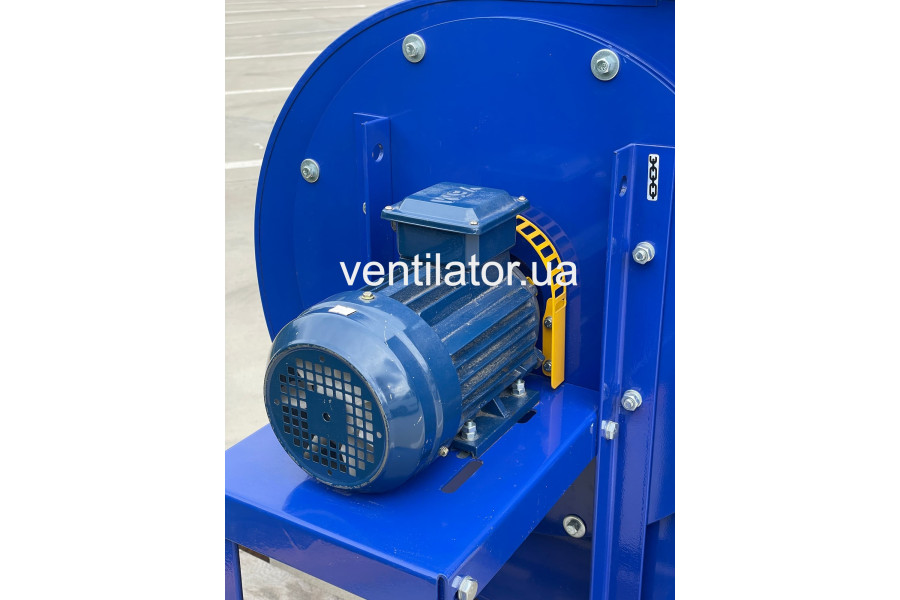

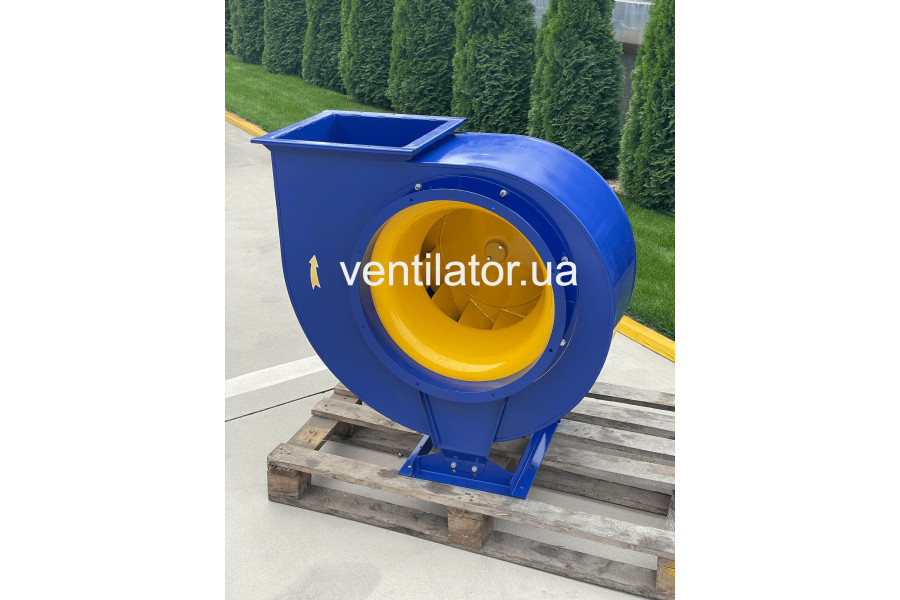

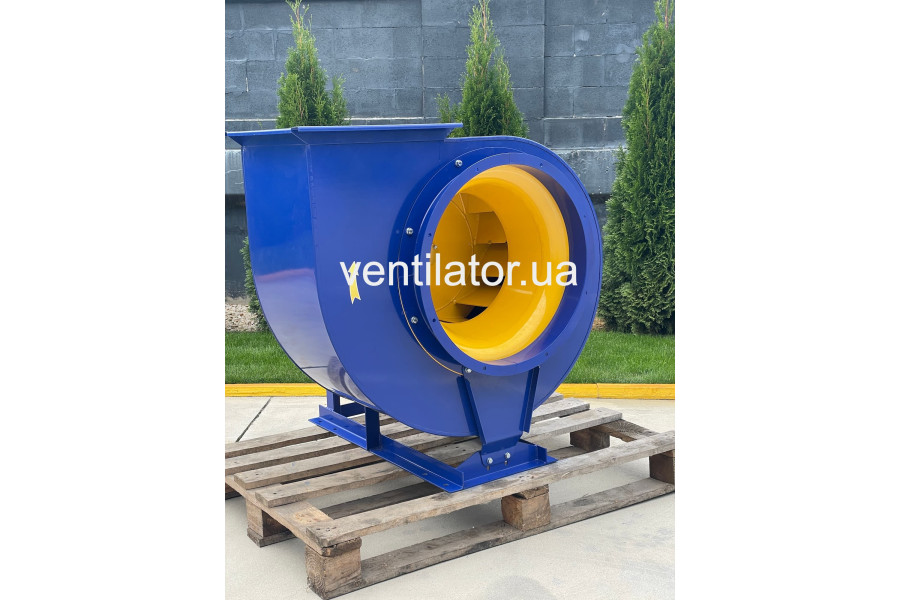

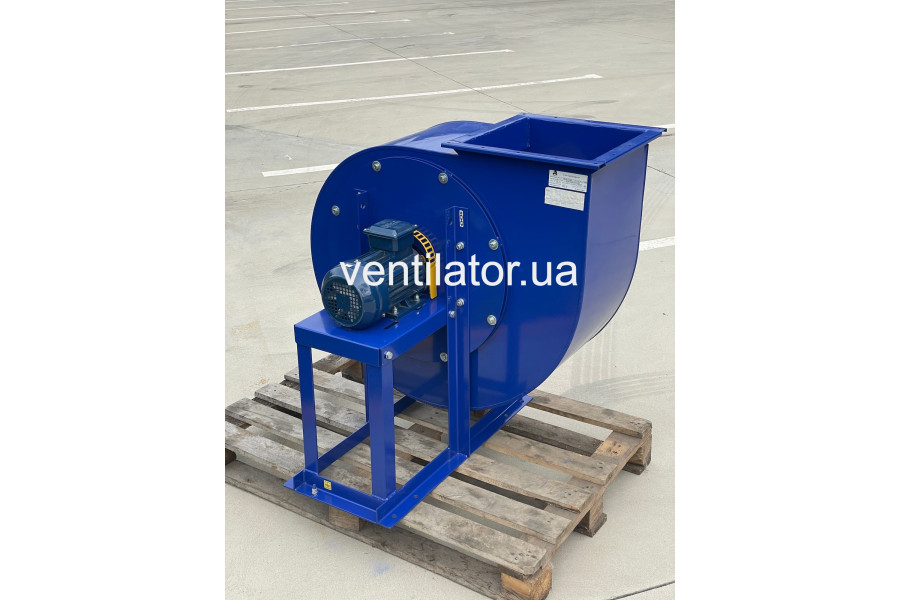

VR 80-75-5 DV w/motor AIR 71 A6 0.37 kW 1000 rpm, execution 1

VR 80-75-5 DV w/motor AIR 71 A6 0.37 kW 1000 rpm – effective fire protection

VR 80-75-5 DV w/motor AIR 71 A6 0.37 kW 1000 rpm are used for removing combustion products and smoke during a fire, as well as for transporting gas-vapor-air mixtures with high humidity and aggressive impurities. This equipment ensures stable and safe operation in smoke extraction systems of buildings and structures for various purposes.

Technical characteristics:

• Operation at smoke gas temperatures up to 600°C for 120 minutes.
• Purpose – removal of smoke and hot gases in case of fire.
• Manufactured in accordance with DSTU EN 12101-3:2017 (EN 12101-3:2015, IDT).
• Classification and testing according to DSTU EN 13501-4:2024 (EN 13501-4:2016, IDT).

Advantages of VR 80-75-5 DV w/motor AIR 71 A6 0.37 kW 1000 rpm:

• Withstand high temperature loads – proven ability to operate in fire-resistant mode.
• Certified according to European and national standards.
• Designed for use in smoke control systems in residential, public, and industrial buildings.
• Reliability in critical conditions – ensure the safety of people and preservation of building structures.

Application areas:

• smoke extraction systems;
• shopping centers, hospitals, warehouses, offices;
• industrial facilities with fire risk;
• residential complexes and public buildings.

Operating conditions:

• Permissible dust and solid impurities in the transported medium – up to 100 mg/m³.
• Not allowed for transporting sticky, fibrous, abrasive, or explosive substances.
• Gas-air mixtures must not cause damage to fan materials or coatings.

The presence of certificates confirms the possibility of using VR 80-75-5 DV w/motor AIR 71 A6 0.37 kW 1000 rpm in different types of buildings, ensuring their efficiency and compliance with current standards.
