VO 10-360 #3.55 w/motor AIR 56 B4 0.18 kW 1500 rpm

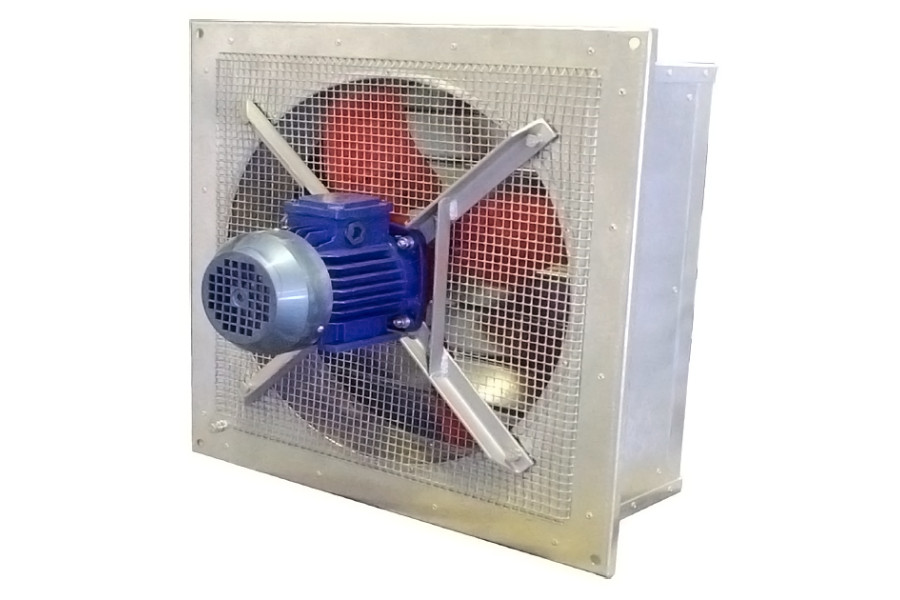

Medium Pressure Axial Fan of the VO 10-360 #3.55 w/motor AIR 56 B4 0.18 kW 1500 rpm Series, made of galvanized steel.

The axial fan VO 10-360 # 3,55 is designed for moving air through ventilation ducts and for direct supply or exhaust of air from premises of industrial, public, municipal, and agricultural buildings and structures.

General Information about VO 10-360 #3.55 w/motor AIR 56 B4 0.18 kW 1500 rpm Axial Fans:

• For general and agricultural applications;
• Designed for installation in window and wall openings;
• Medium pressure;
• Design version No. 2 – air flow direction: from the motor side to the impeller;
• Number of impeller blades: 4 pcs.;
• Casing material: galvanized steel;
• Motor: asynchronous, general purpose.

Operating Conditions for VO 10-360 #3.55 w/motor AIR 56 B4 0.18 kW 1500 rpm Medium Pressure Axial Fans:

• Ambient temperature from -40°C to +40°C;
• Operation in regions with moderate climate, categories 2 and 3 of placement;
• The air handled by the fan must not contain sticky or fibrous materials;
• Content of dust and other solid impurities not more than 10 mg/m³;
• The root mean square value of the fan's vibration velocity must not exceed 6.3 mm/s.

Design and Installation Features of the Medium Pressure Axial Fan VO 10-360 # 3,55:

Fans for poultry houses VO 10-360 # 3,55 with electric motor Electric motor AIR 56 B4 0.18 Power kW 1500 Vol./Min consist of the following main assemblies:

• Casing with support plate;
• Impeller;
• Aerodynamic valve;
• Protective guard;
• Bracket for mounting the motor;
• Electric motor AIR 56 B4

The poultry house fan VO-10-360 is installed in the walls, window openings of buildings, on building structures, and directly into the ventilation network. When installing in a ventilation system, the axial fan is mounted on brackets fixed to the building structures. Air ducts are connected to the fan flanges via flexible joints. The fan is installed on vibration isolators.

To prevent outside air from entering and drafts from forming in the room (when not in operation), the fan has an aerodynamic valve (louvers) which are mounted in the casing.

A design feature of this fan is that all louvers are connected by a single axis. This eliminates the "slamming" effect during fan operation. In working condition, the louver blades open under the action of the moving air stream. During operation, the fan removes air from the room and exhausts it outside.
