VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm

Axial fan Low Pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm
Out of stock
Product Code: ID11408
19 517₴

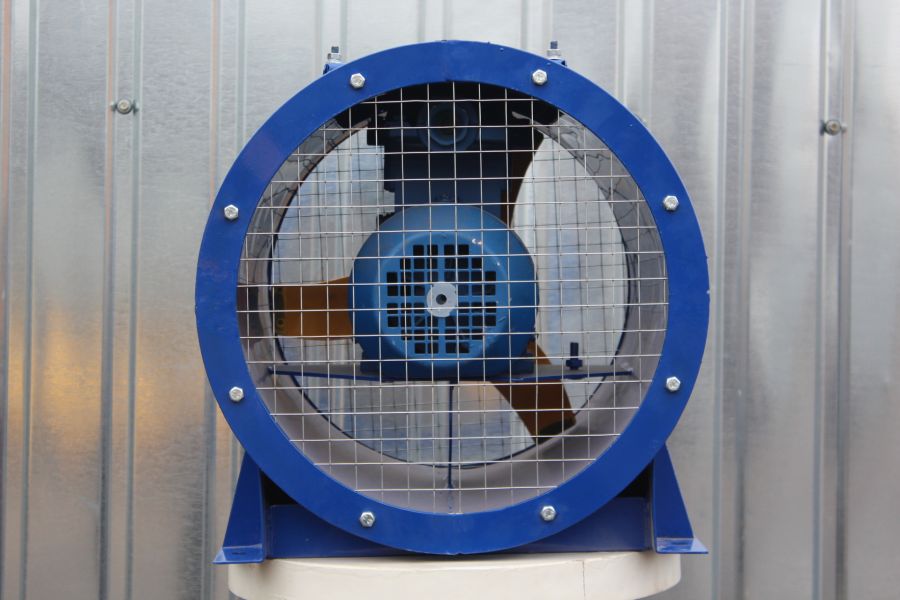

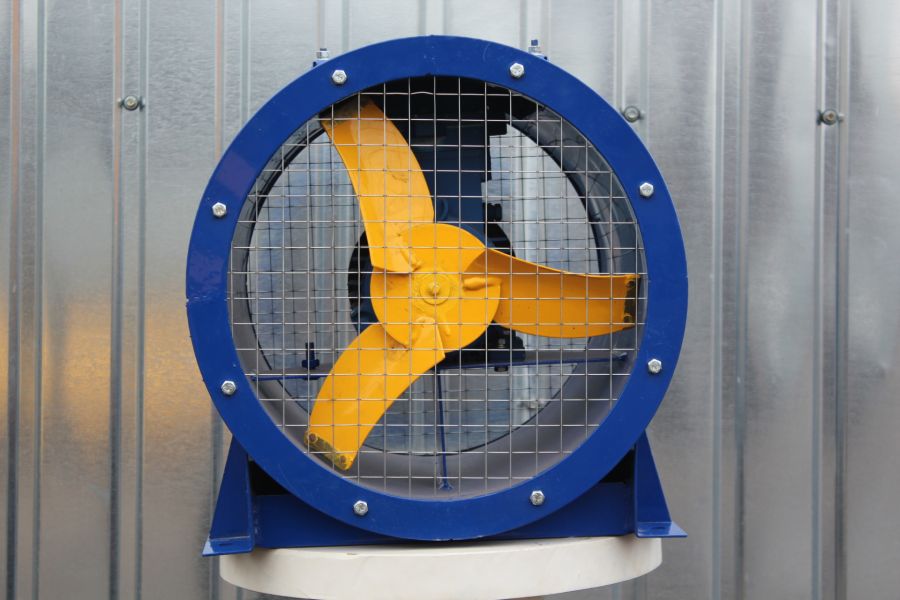

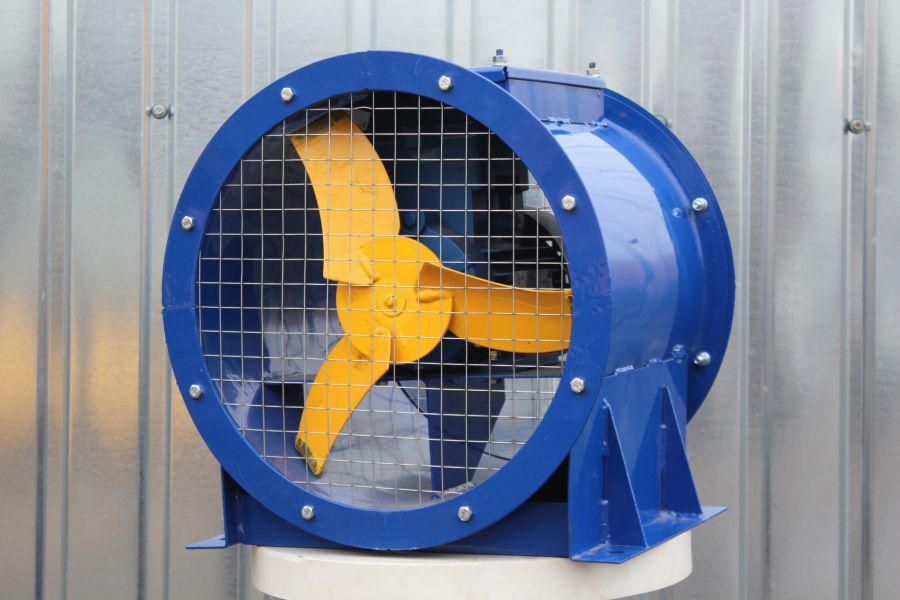

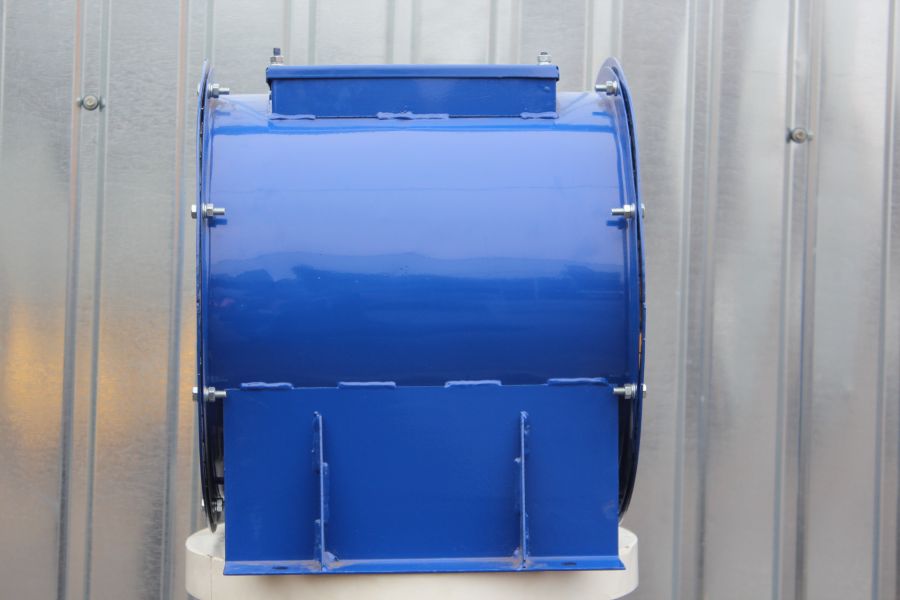

Axial fan series VO 06-300 (VO 13-290) #6,3 with electric motor Electric motor 4VR 90 L4 2.2 Power kW 1500 Vol./Min industrial application made of dissimilar metals for explosive environments

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VO 06-300 (VO 13-290) VZ #6.3 w/ motor 4VR 90 L4 2.2 kW 1500 rpm
19 517₴
Specifications
Common
Model
VO 06-300 (VO 13-290) #6,3
Electric motor 4VR 90 L4
Common
Model
4VR 90 L4
Motor type
asynchronous
Kind
explosion-proof
Motor series
4VR
Shaft diameter, mm
24
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
2.2
Vol./Min
1500
n, vol./Min
1430
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
80,0
Power factor, cosφ
0,81
Weight, kg
24,0
Consumed nominal current, In (A)
5,3
Dimension (height of rotation axis), mm
90
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,0
The ratio of starting current to the nominal, Istart/In
6,0
The ratio of starting torque to rated power, Mstart/Mn
2,4
