VO 06-300 (VO 13-290) VZ #6.3 w/motor 4VR 71 A6 0.37 kW 1000 rpm

Axial fan of the VO 06-300 (VO 13-290) #6,3 (VO 12-300) series with electric motor Electric motor 4VR 71 A6 0.37 Power kW 1000 Vol./Min, designed for general industrial use, is made of dissimilar metals for explosive environments.

This axial fan, like other VO series axial fans, moves air or gas along the axis of the impeller, which is driven by an electric motor. The VO series axial fan is intended for the transportation of explosive gas-vapor-air mixtures of category 1 and 2, groups T1, T2, T3, according to the classification of the "Rules for Electrical Installations" (PEU). The transported medium must not cause accelerated corrosion of the fan's flow path materials. It can also be used for air with temperatures ranging from –40 °C to +40 °C (up to +45 °C for tropical versions), and must be free of dust and other solid particles exceeding 10 mg/m³, as well as fibrous or sticky substances.

The fan is designed for operation in moderate (U) and tropical (T) climates, placement category 2.

The root mean square vibration speed must not exceed 6.3 mm/s. Installation on foundations subject to vibrations greater than 2 mm/s is not allowed.

The fan must be installed in locations protected from atmospheric precipitation.

This model is an analogue of the following low-pressure axial fans: VO 12-300, VO 13-300, VO 12-290, VO 12-330, VO 13-290, VO 14-300, VO 14-320, VO 13-320.

Application of axial fans VO 06-300 (VO 13-290) VZ #6.3 w/motor 4VR 71 A6 0.37 kW 1000 rpm (VO 12-300) for explosive environments:

The fan is used in air heating systems, supply and exhaust ventilation, air conditioning, and various technological installations that may contain explosive substances; in machinery and equipment, provided the requirements match the fan’s specifications; as well as in residential ventilation and air heating systems. The axial fan VO 06-300 (VO 13-290) VZ #6.3 w/motor 4VR 71 A6 0.37 kW 1000 rpm (VO 12-300) is also applicable for other sanitary and industrial purposes in explosive environments.

Axial fans are used in:

• air conditioning systems;
• supply and exhaust ventilation systems;
• air heating systems;
• various technological installations;
• other sanitary and industrial purposes.

Axial fan VO 06-300 (VO 13-290) #6,3 (VO 12-300) consists of the following components (can be purchased separately):

- axial fan VO 06-300 (VO 13-290) #6,3 (VO 12-300) without electric motor;
- impeller of axial fan VO 06-300 (VO 13-290) #6,3;
- fan casing (shroud) VO 06-300 (VO 13-290) #6,3 (VO 12-300);
- electric motor Electric motor 4VR 71 A6 0.37 Power kW 1000 Vol./Min for fan VO 06-300 (VO 13-290) #6,3.

General information about axial fans VO 06-300 (VO 13-290) VZ #6.3 w/motor 4VR 71 A6 0.37 kW 1000 rpm:

• low pressure;
• single-side suction;
• number of blades – 3 pcs;
• rotation direction – right-hand;
• material – dissimilar metals;

Purpose of axial fans VO 06-300 (VO 12-300):

Designed for ventilation and air heating systems, as well as for moving gas mixtures that are not aggressive to standard-grade carbon steel, at temperatures from –40 °C to +40 °C (up to +45 °C for tropical execution). The medium must be free of dust and other solid impurities not exceeding 10 mg/m³, and must not contain fibrous or sticky materials.

Design and operation principle of axial fans VO 06-300 (VO 13-290) #6,3 (VO 12-300):

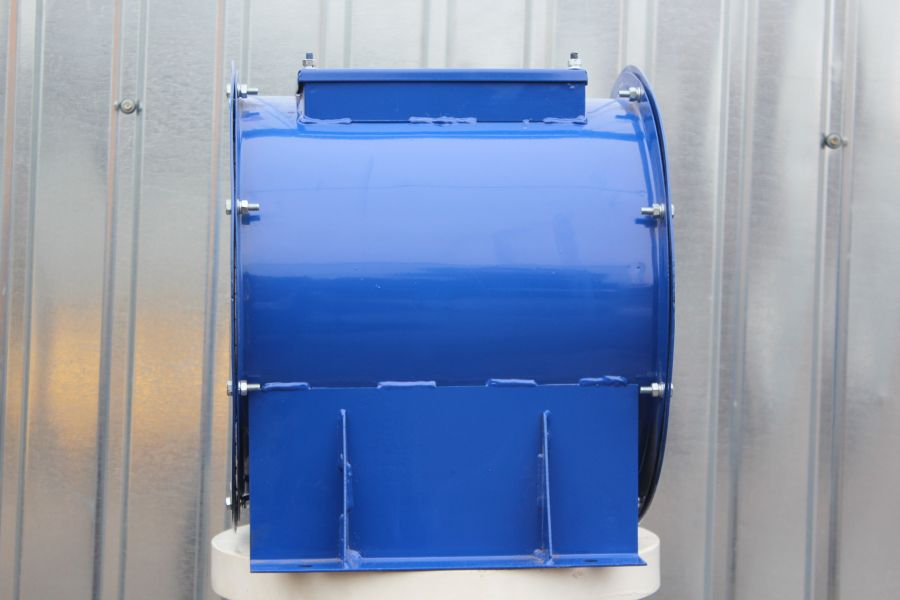

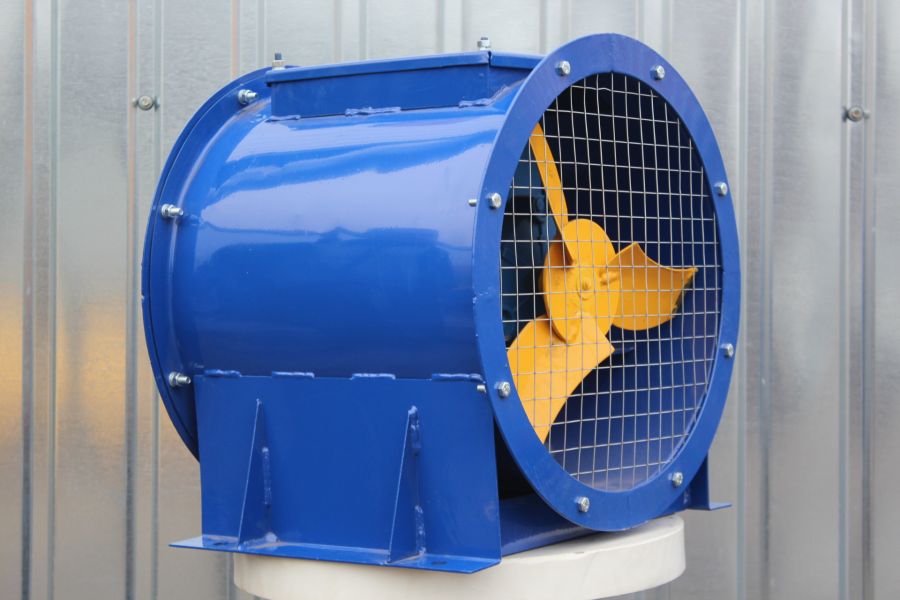

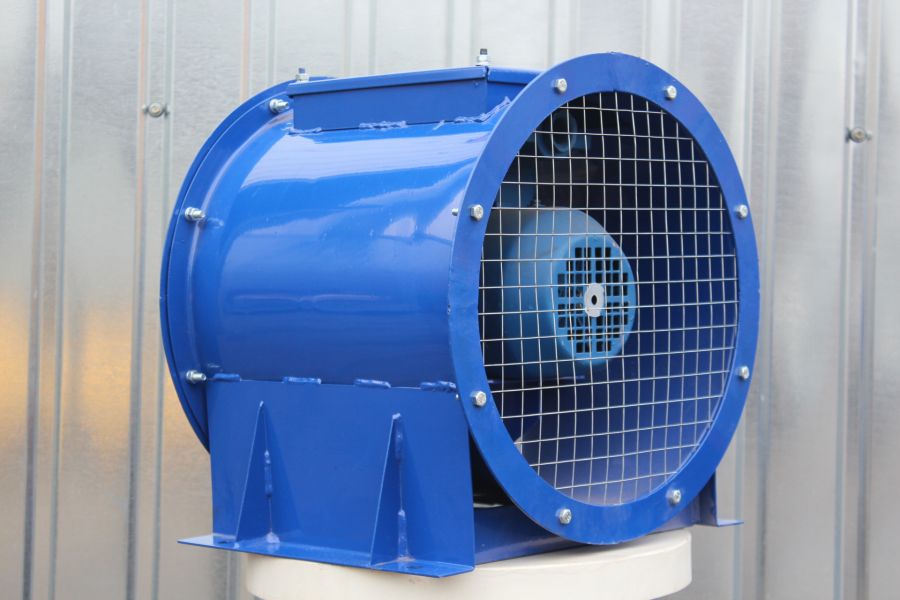

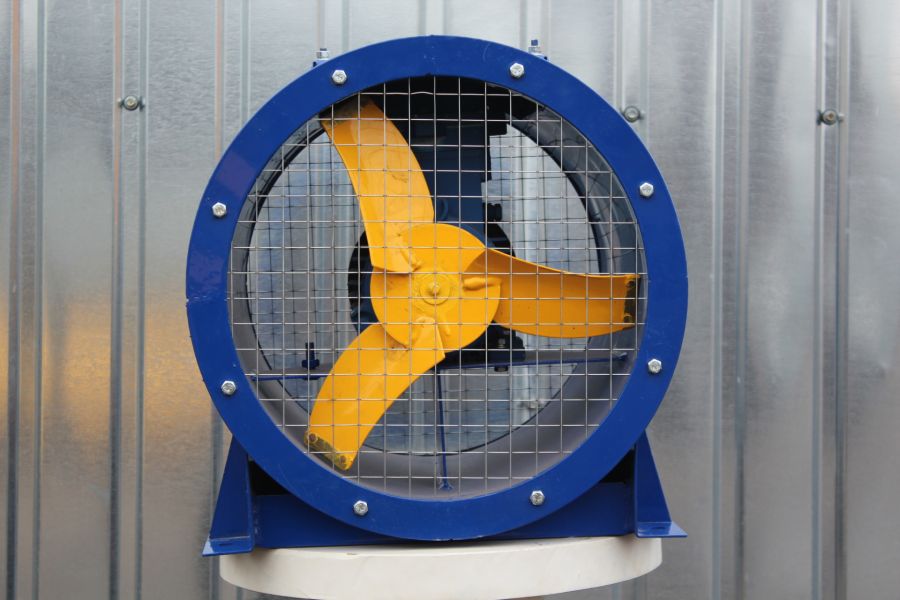

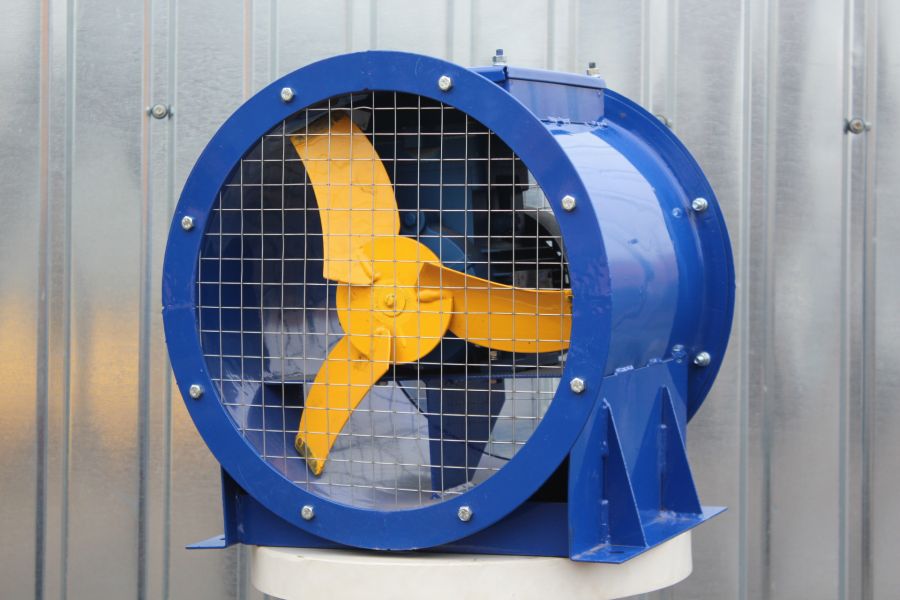

The VO 06-300 (VO 13-290) VZ #6.3 w/motor 4VR 71 A6 0.37 kW 1000 rpm (VO 12-300) axial fan has an impeller mounted directly on the motor shaft. The fan housing is cylindrical and flanged on both ends for duct connection. A support bracket is provided for installation on the foundation. The impeller consists of a shroud, disk, hub, and three blades welded to the shroud. The fan is manufactured with right-hand rotation.

Air is moved by transferring the rotational energy from the impeller, which is driven by the electric motor, along the axial direction of the impeller.

Delivery set of axial fan VO 06-300 (VO 13-290) #6,3 (VO 12-300) with electric motor Electric motor 4VR 71 A6 0.37 Power kW 1000 Vol./Min:

The axial fan VO 06-300 (VO 13-290) VZ #6.3 w/motor 4VR 71 A6 0.37 kW 1000 rpm (VO 12-300), complete with electric motor Electric motor 4VR 71 A6 0.37 Power kW 1000 Vol./Min, consists of the following main components:

• fan housing, cylindrical with flanges on both sides;
• impeller mounted directly on the motor shaft;
• electric motor Electric motor 4VR 71 A6 0.37 Power kW 1000 Vol./Min;
• support frame (base) for mounting the fan on a foundation.
