VO 06-300 (VO 13-290) VZ #12.5 w/ motor 4VR 132 4 S8 750 kW rpm

Axial fan Low Pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VO 06-300 (VO 13-290) VZ #12.5 w/ motor 4VR 132 4 S8 750 kW rpm
VO 06-300 (VO 13-290) VZ #12.5 w/ motor 4VR 132 4 S8 750 kW rpm
VO 06-300 (VO 13-290) VZ #12.5 w/ motor 4VR 132 4 S8 750 kW rpm
VO 06-300 (VO 13-290) VZ #12.5 w/ motor 4VR 132 4 S8 750 kW rpm
VO 06-300 (VO 13-290) VZ #12.5 w/ motor 4VR 132 4 S8 750 kW rpm
VO 06-300 (VO 13-290) VZ #12.5 w/ motor 4VR 132 4 S8 750 kW rpm
VO 06-300 (VO 13-290) VZ #12.5 w/ motor 4VR 132 4 S8 750 kW rpm
VO 06-300 (VO 13-290) VZ #12.5 w/ motor 4VR 132 4 S8 750 kW rpm
On order
Product Code: ID11416
negotiable

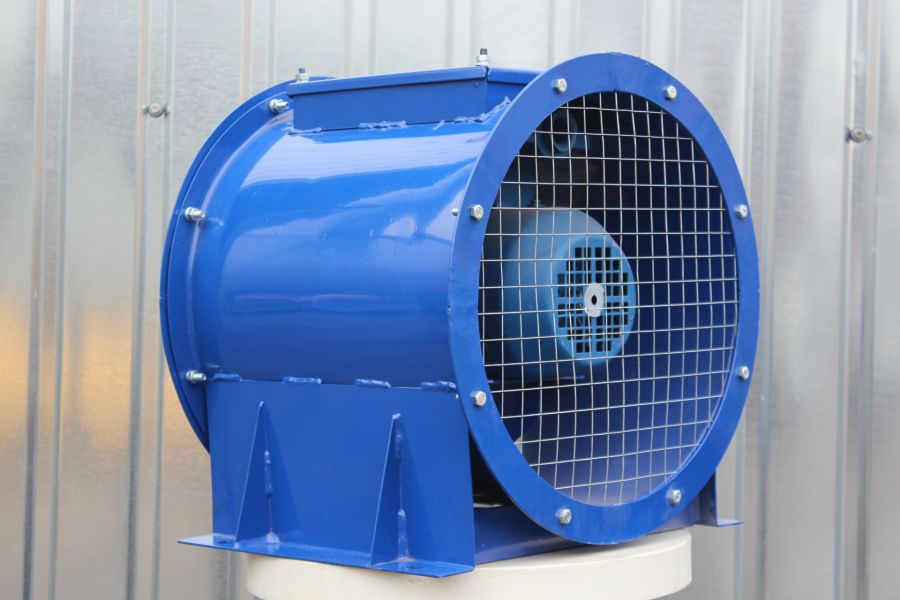

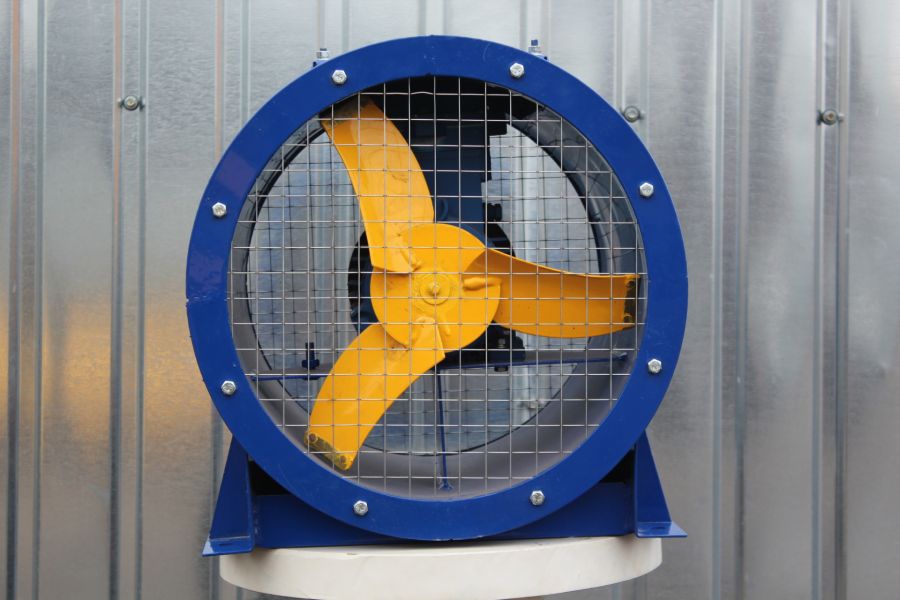

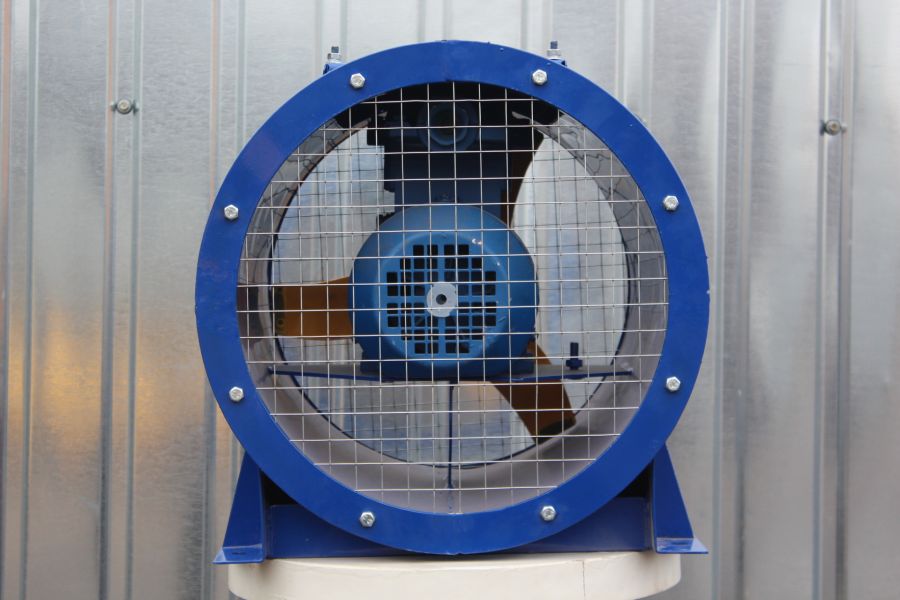

Axial fan series VO 06-300 (VO 13-290) #12,5 with electric motor Electric motor 4VR 132 S8 4.0 Power kW 750 Vol./Min industrial application made of dissimilar metals for explosive environments

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VO 06-300 (VO 13-290) VZ #12.5 w/ motor 4VR 132 4 S8 750 kW rpm
Specifications
Common
Model
VO 06-300 (VO 13-290) #12,5
Electric motor 4VR 132 S8
Common
Model
4VR 132 S8
Motor type
asynchronous
Kind
explosion-proof
Motor series
4VR
Shaft diameter, mm
38
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
4.0
Vol./Min
750
n, vol./Min
700
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
83,0
Power factor, cosφ
0,78
Weight, kg
87,2
Consumed nominal current, In (A)
11,0
Dimension (height of rotation axis), mm
132
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
1,8
The ratio of starting current to the nominal, Istart/In
6,0
The ratio of starting torque to rated power, Mstart/Mn
2,2
