VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm

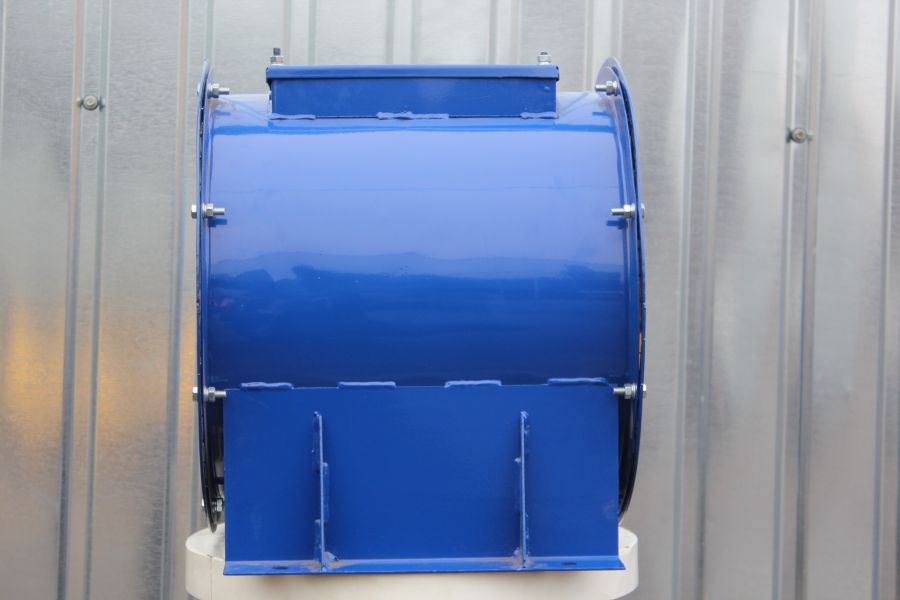

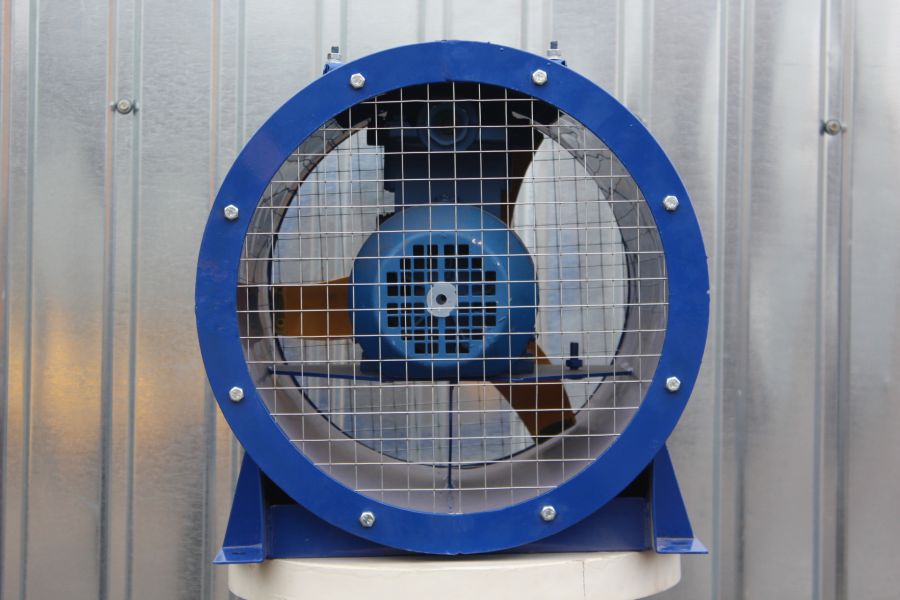

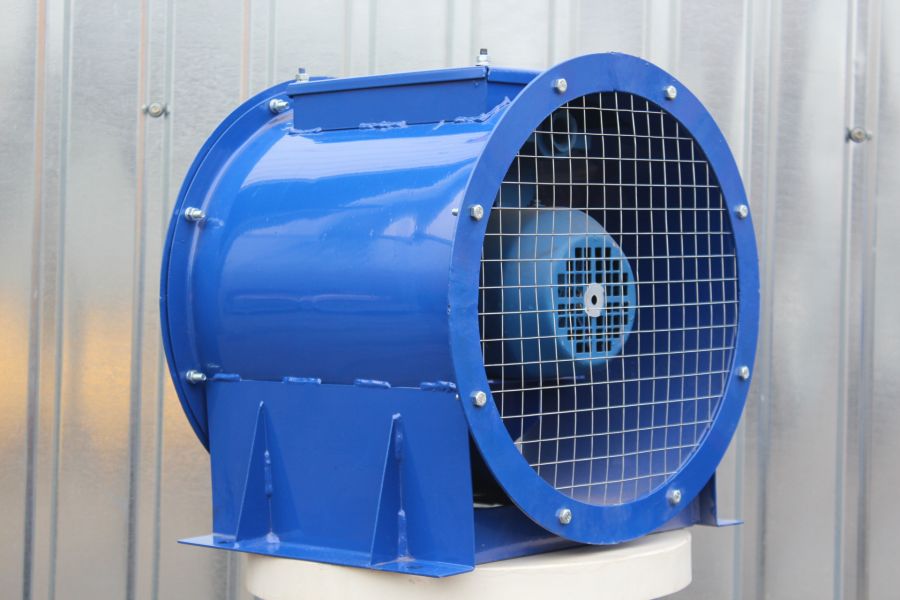

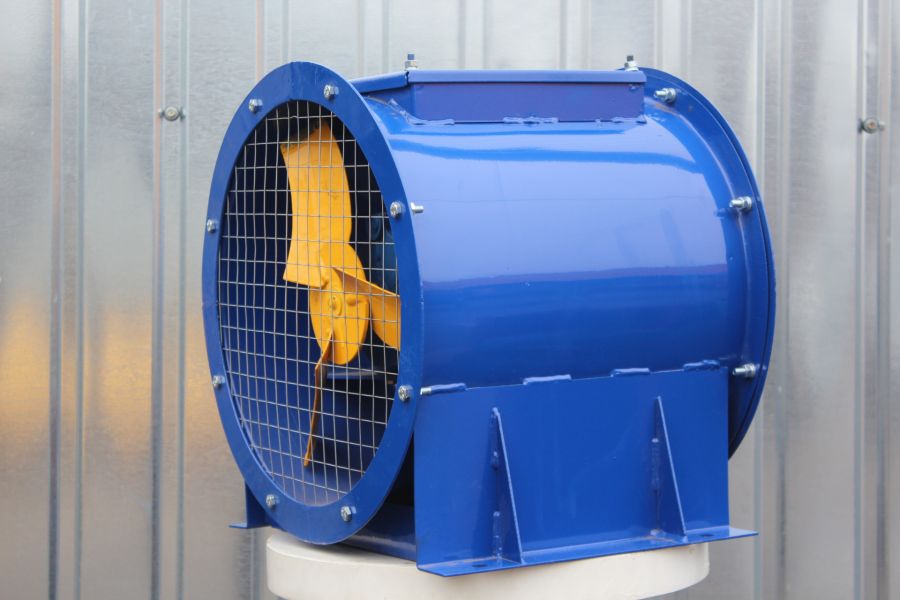

Axial fan Low Pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm
VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm
VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm
VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm
VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm
VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm
VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm
VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm
VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm
VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm
On order
Product Code: ID11412
negotiable

Axial fan series VO 06-300 (VO 13-290) #10 with electric motor Electric motor 4VR 100 L6 2.2 Power kW 1000 Vol./Min industrial application made of dissimilar metals for explosive environments

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VO 06-300 (VO 13-290) VZ #10 w/ motor 4VR 100 L6 2.2 kW 1000 rpm
Specifications
Common
Model
VO 06-300 (VO 13-290) #10
Electric motor 4VR 100 L6
Common
Model
4VR 100 L6
Motor type
asynchronous
Kind
explosion-proof
Motor series
4VR
Shaft diameter, mm
28
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
2.2
Vol./Min
1000
n, vol./Min
940
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
81,5
Power factor, cosφ
0,76
Weight, kg
32,6
Consumed nominal current, In (A)
5,9
Dimension (height of rotation axis), mm
100
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
1,9
The ratio of starting current to the nominal, Istart/In
6,0
The ratio of starting torque to rated power, Mstart/Mn
2,2
