VO 06-300 (VO 13-290) #8 w/ motor AIR 80 750 B8 0.55 kW rpm

Axial fan Low Pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
On order
Product Code: ID37779
negotiable

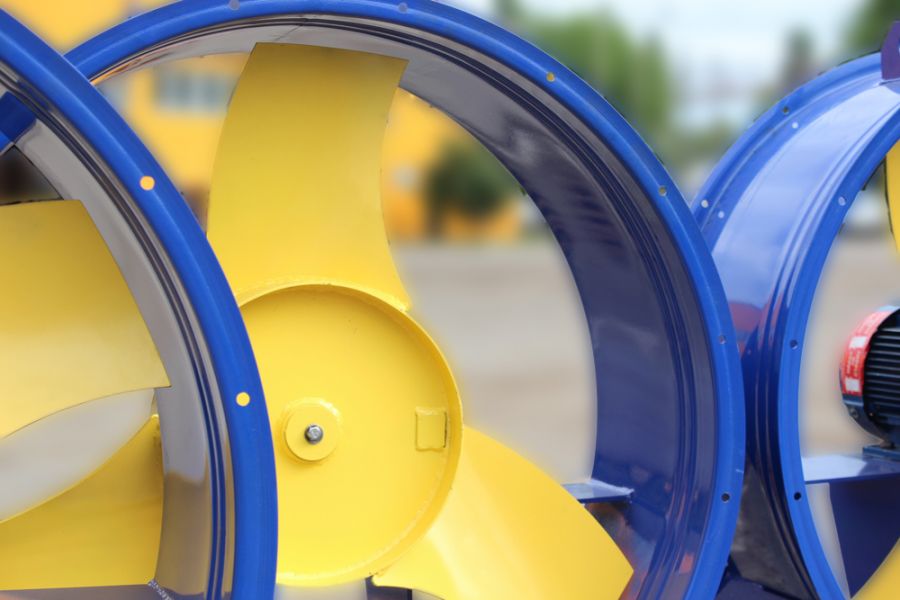

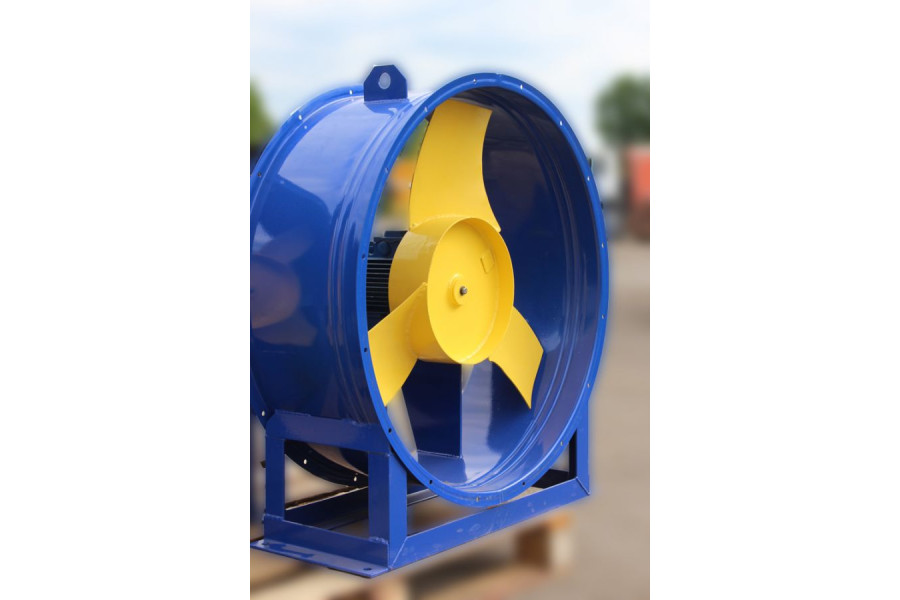

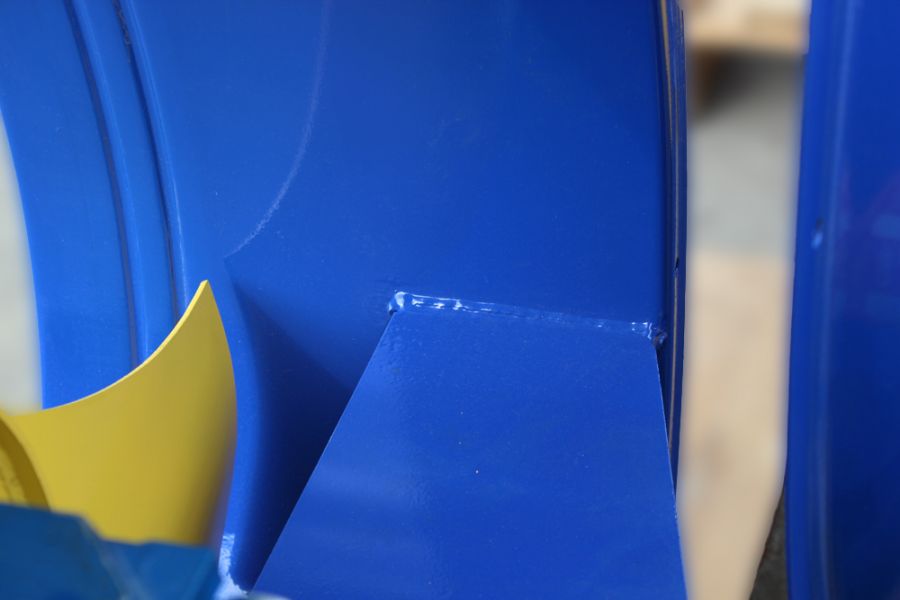

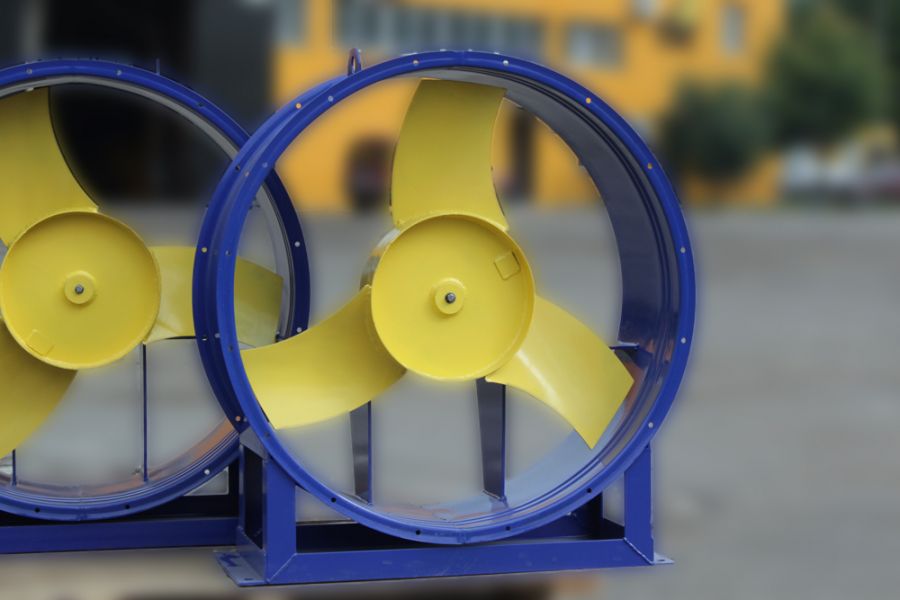

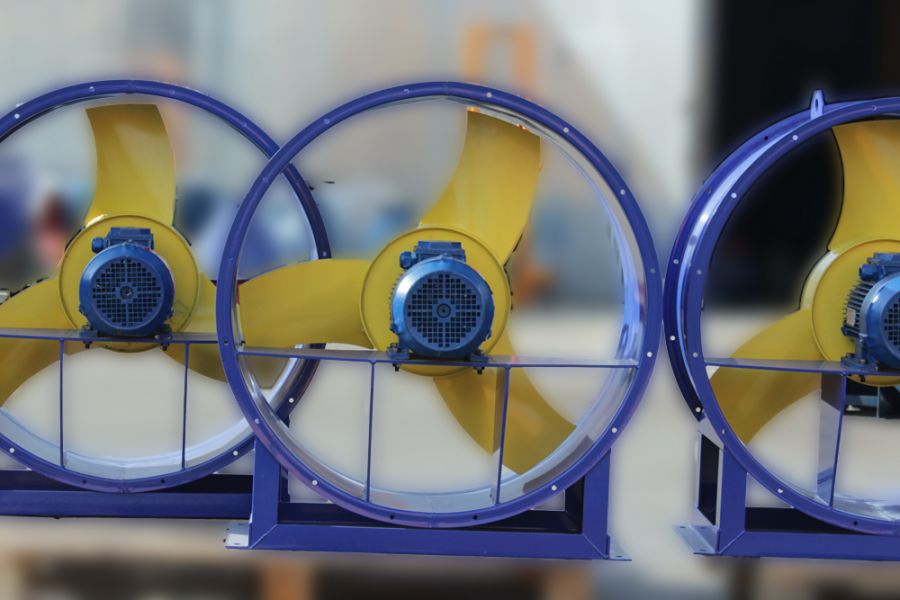

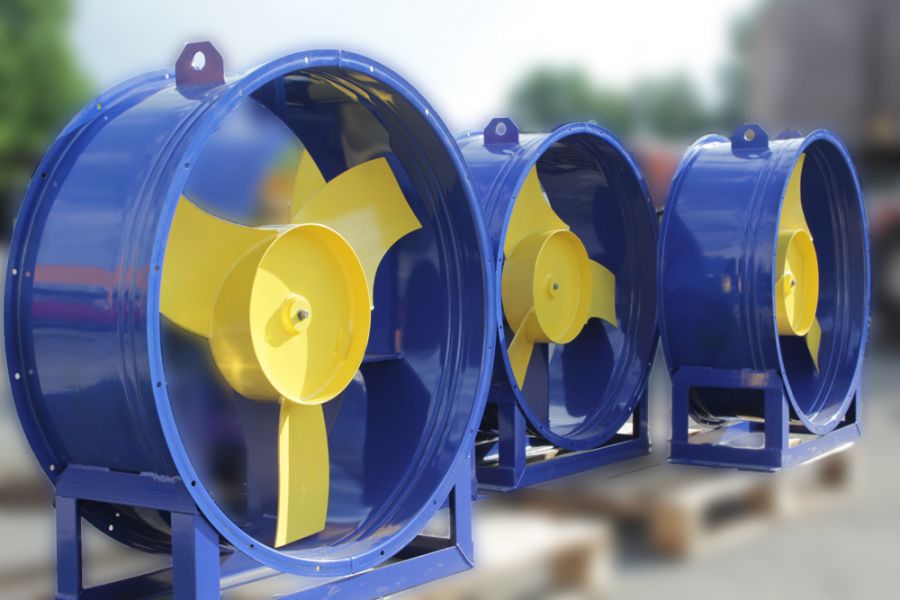

Axial fan series VO 06-300 (VO 13-290) #8 with electric motor Electric motor AIR 80 B8 0.55 Power kW 750 Vol./Min for general industrial use, made of carbon steel.

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VO 06-300 (VO 13-290) #8 w/ motor AIR 80 750 B8 0.55 kW rpm
Specifications
Common
Model
VO 06-300 (VO 13-290) #8
Electric motor AIR 80 B8
Common
Model
AIR 80 B8
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
22
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
0.55
Vol./Min
750
n, vol./Min
675
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
62,9
Power factor, cosφ
0,62
Weight, kg
18,9
Consumed nominal current, In (A)
2,2
Dimension (height of rotation axis), mm
80
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2
The ratio of starting current to the nominal, Istart/In
4
The ratio of starting torque to rated power, Mstart/Mn
1,8
