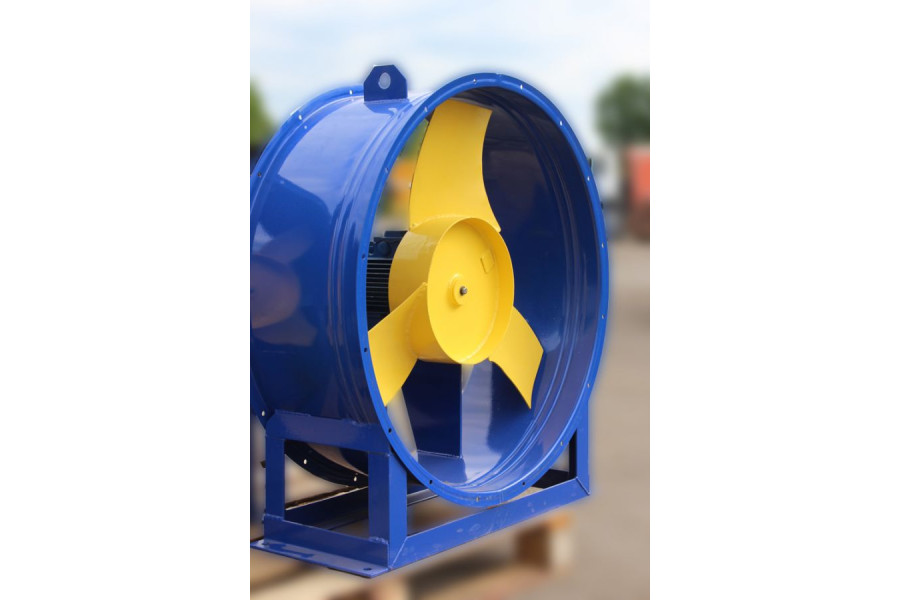

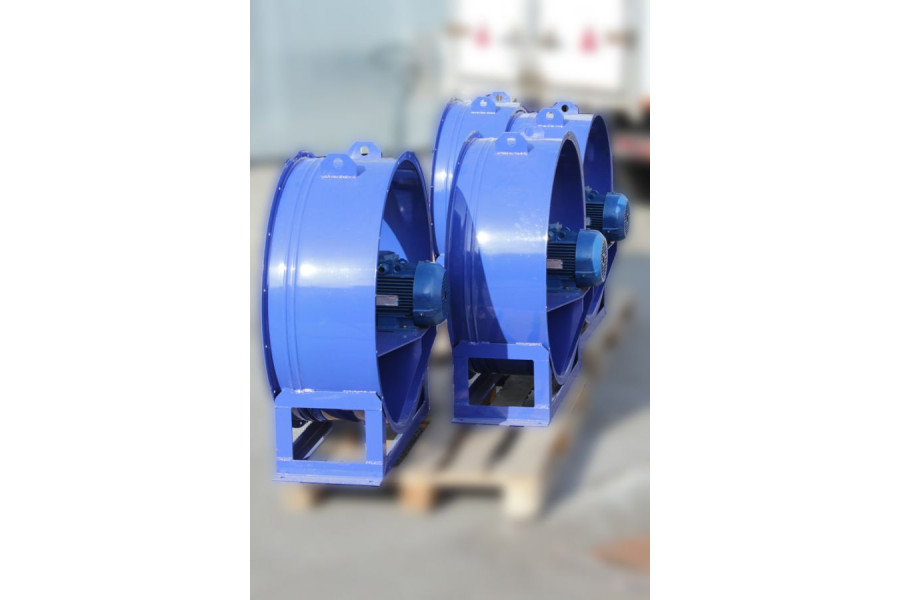

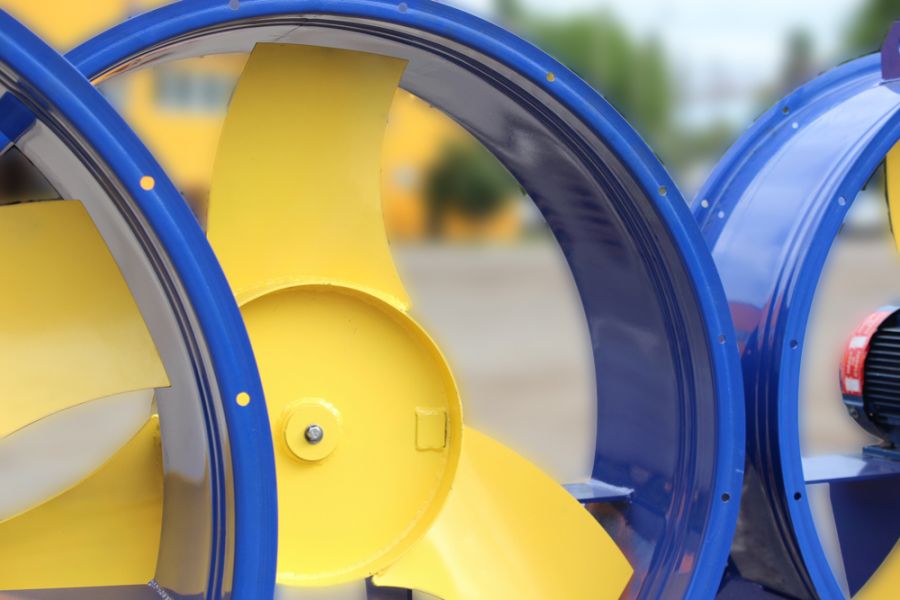

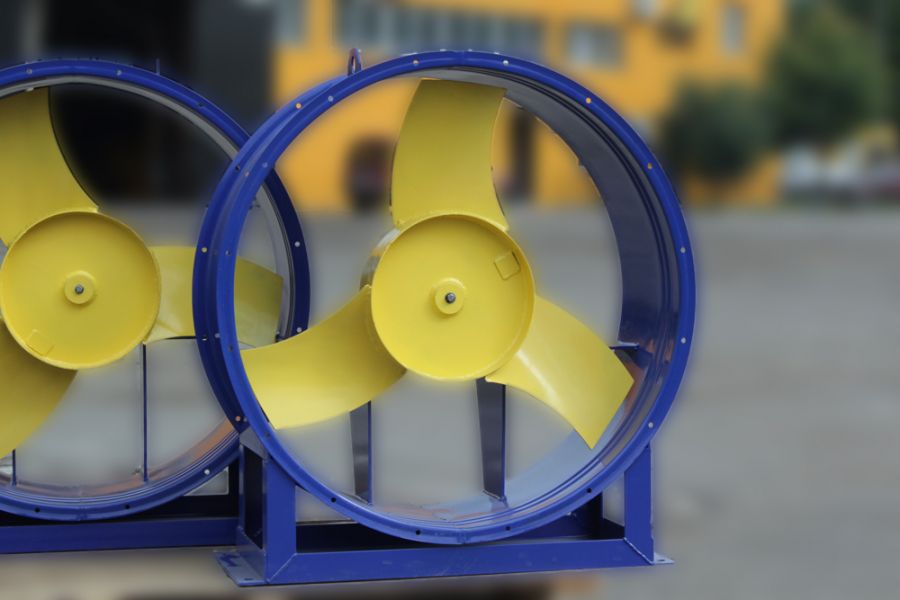

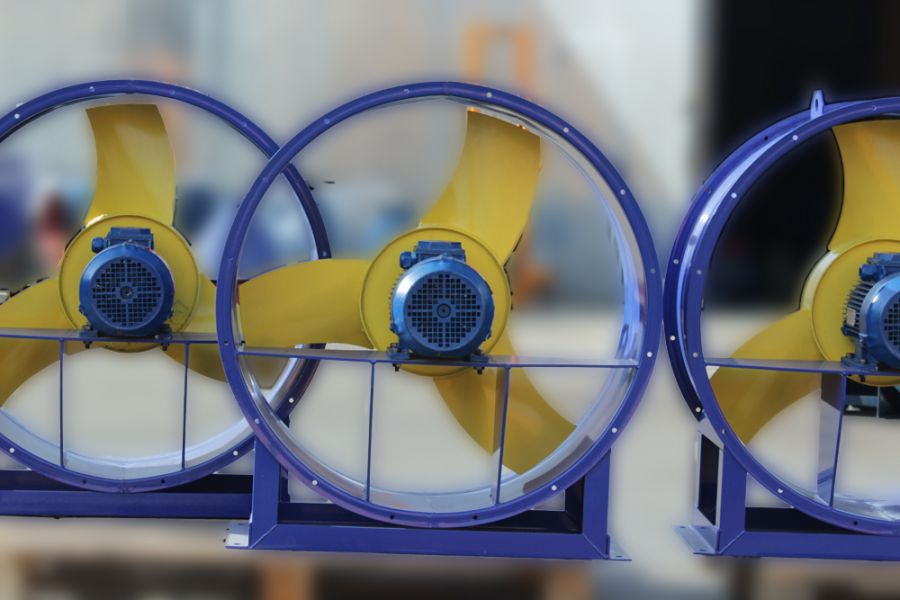

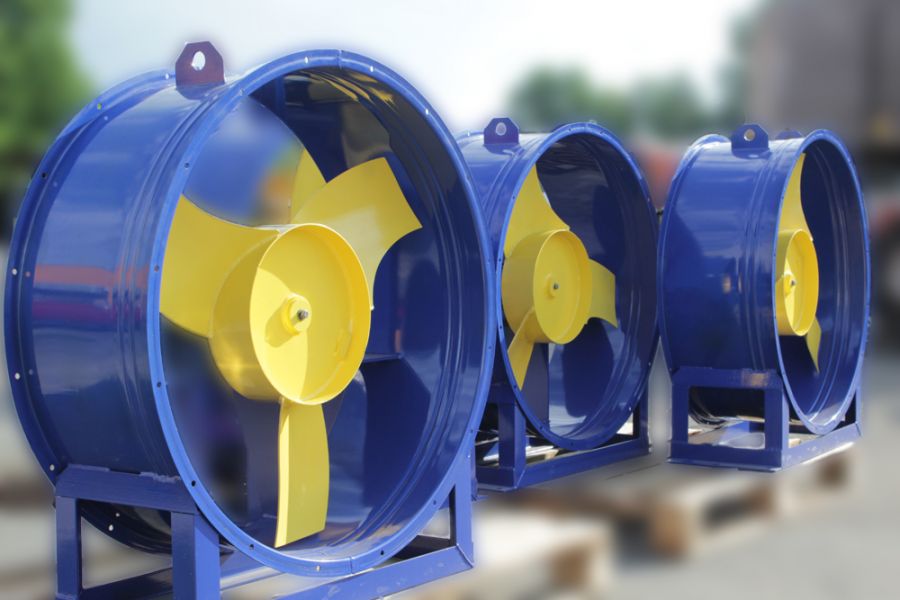

VO 06-300 (VO 13-290) #8 w/ motor AIR 100 L4 4 kW 1000 rpm

Axial fan Low Pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
On order
Product Code: ID37780
negotiable

Axial fan series VO 06-300 (VO 13-290) #8 with electric motor Electric motor AIR 100 L4 4.0 Power kW 1500 Vol./Min for general industrial use, made of carbon steel.

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VO 06-300 (VO 13-290) #8 w/ motor AIR 100 L4 4 kW 1000 rpm
Specifications
Common
Model
VO 06-300 (VO 13-290) #8
Electric motor AIR 100 L4
Common
Model
AIR100L4
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
28
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
4.0
Vol./Min
1500
n, vol./Min
1420
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
82,8
Power factor, cosφ
0,81
Weight, kg
37
Consumed nominal current, In (A)
9,3
Dimension (height of rotation axis), mm
100
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
7
The ratio of starting torque to rated power, Mstart/Mn
2,3
