VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm

Axial fan Low Pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm
VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm
VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm
VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm
VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm
VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm
VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm
VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm
VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm
VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm
In Stock
Product Code: ID37774
negotiable

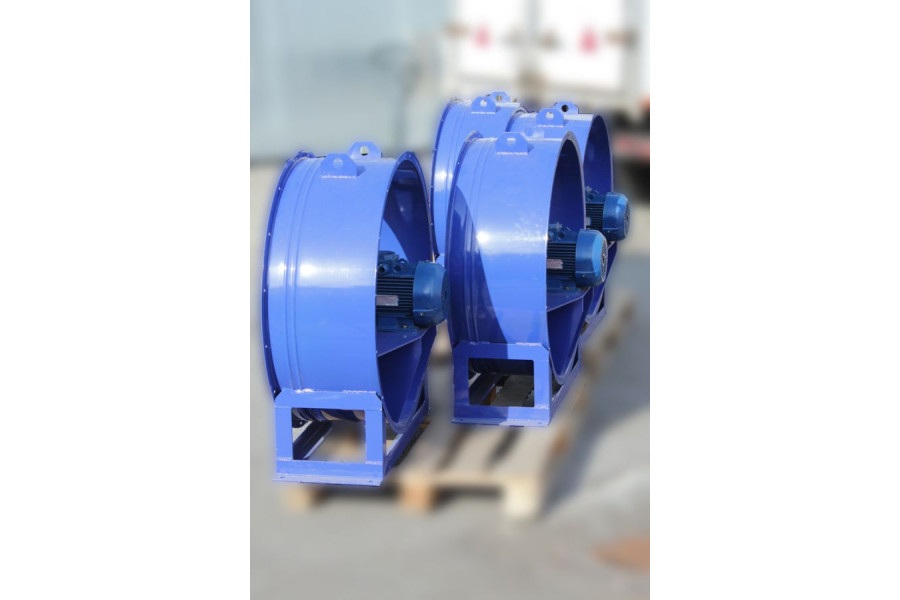

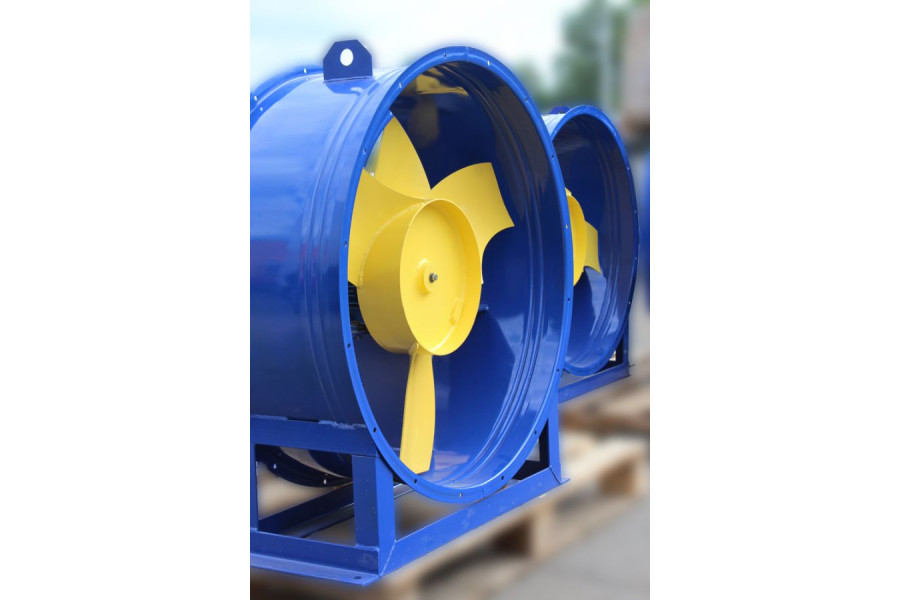

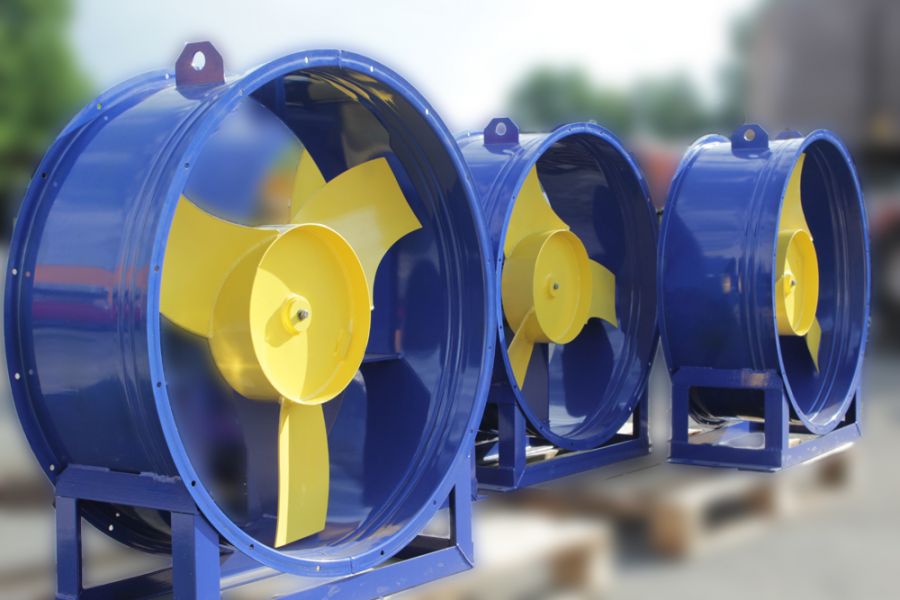

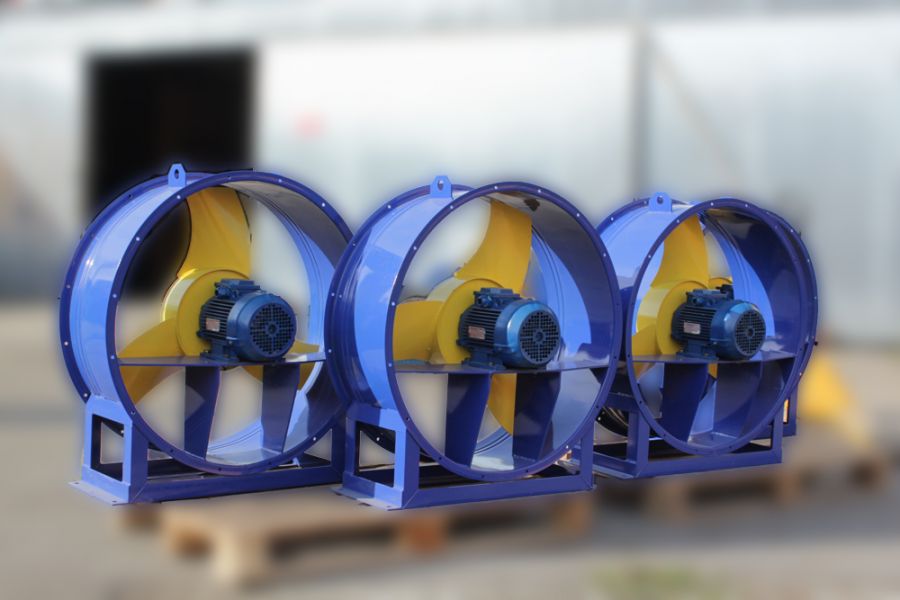

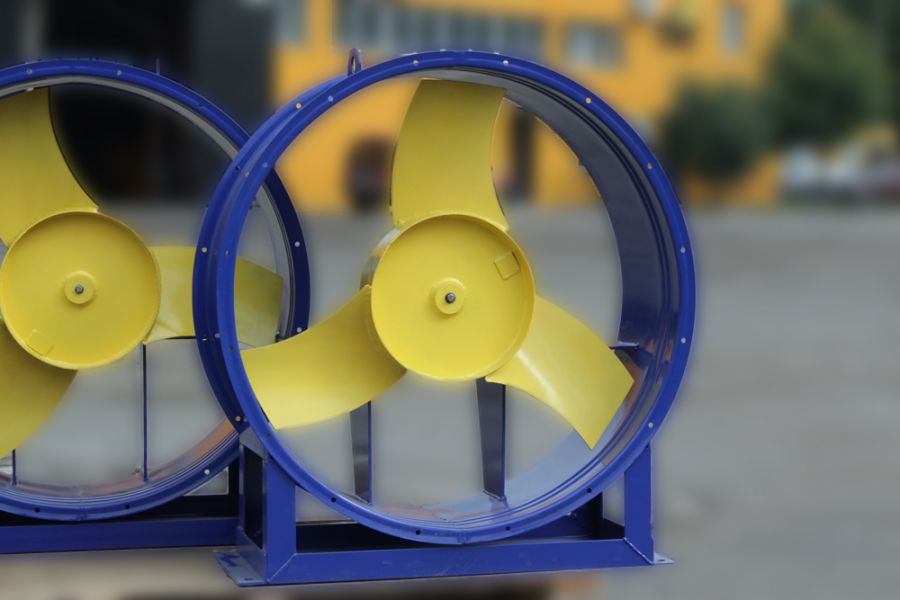

Axial fan series VO 06-300 (VO 13-290) #3,15 with electric motor Electric motor AIR 56 B2 0.25 Power kW 3000 Vol./Min for general industrial use, made of carbon steel.

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VO 06-300 (VO 13-290) #3.15 w/ motor AIR 56 B2 0.25 kW 3000 rpm
Specifications
Common
Model
VO 06-300 (VO 13-290) #3,15
Electric motor AIR 56 B2
Common
Model
AIR 56 V2
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
11
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
0.25
Vol./Min
3000
n, vol./Min
2720
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
68
Power factor, cosφ
0,78
Weight, kg
5,1
Consumed nominal current, In (A)
0,73
Dimension (height of rotation axis), mm
56
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,2
The ratio of starting current to the nominal, Istart/In
5,3
The ratio of starting torque to rated power, Mstart/Mn
2,2
