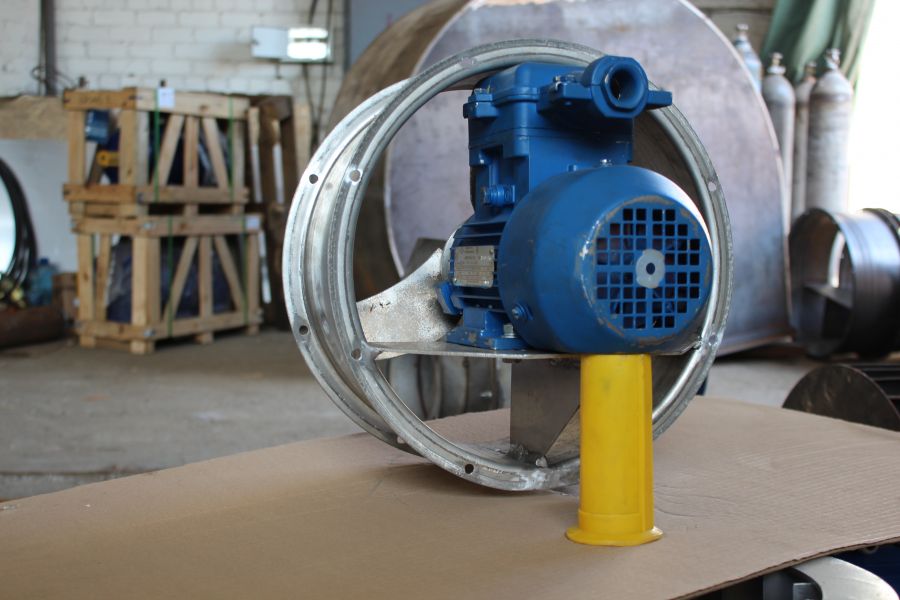

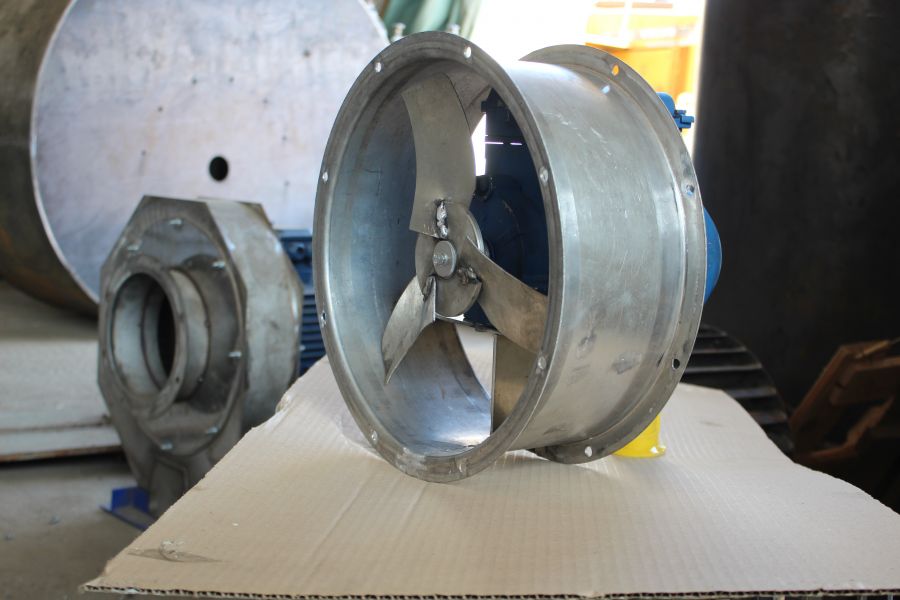

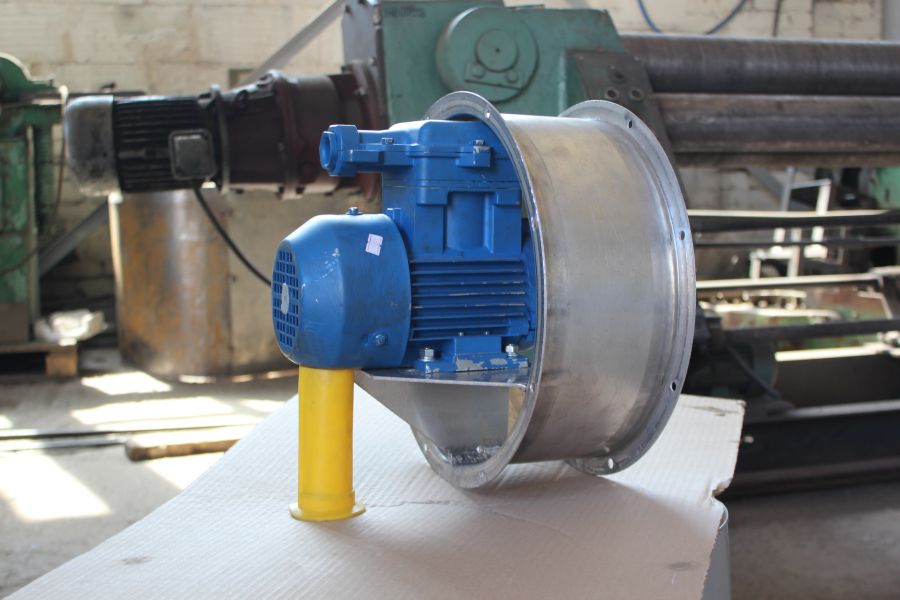

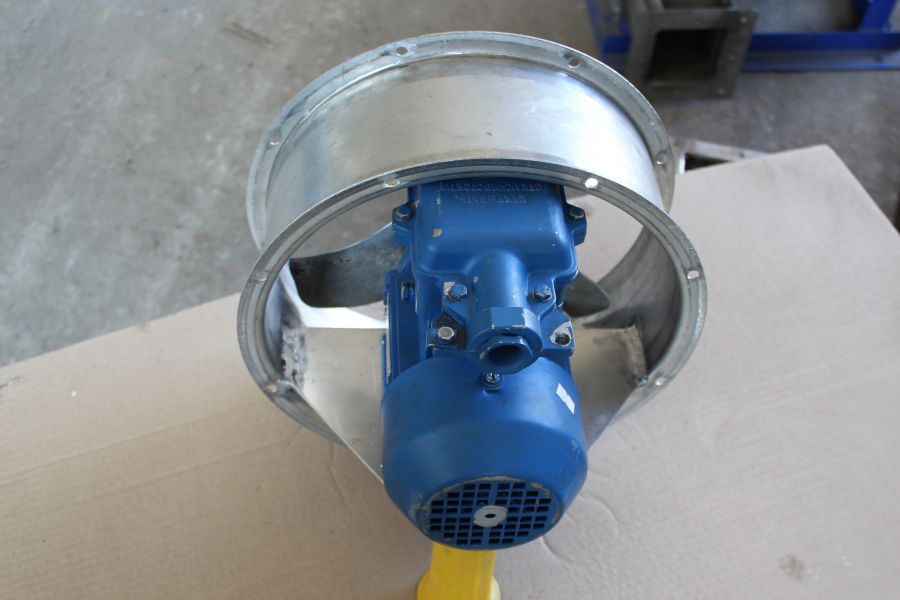

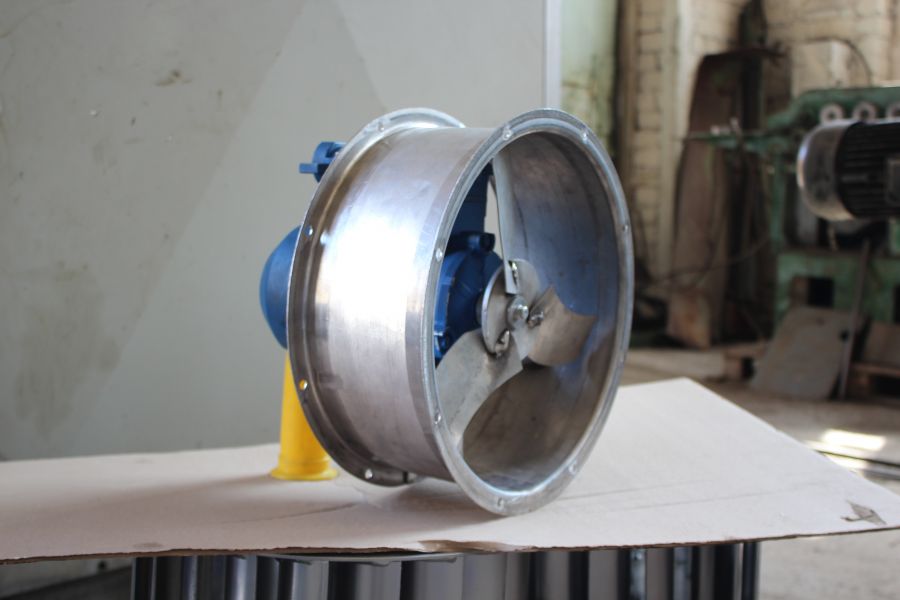

VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm

Axial fan Low Pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm
Out of stock
Product Code: ID11372
28 307₴

Axial fan series VO 06-300 (VO 13-290) #5 with electric motor Electric motor 4VR 90 L2 3.0 Power kW 3000 Vol./Min industrial application made of aluminum alloy for explosive environments

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 90 L2 3 kW 3000 rpm
28 307₴
Specifications
Common
Model
VO 06-300 (VO 13-290) #5
Electric motor 4VR 90 L2
Common
Model
4VR 90 L2
Motor type
asynchronous
Kind
3-phase
explosion-proof
Motor series
4VR
Shaft diameter, mm
24
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
3.0
Vol./Min
3000
n, vol./Min
2860
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
83,5
Power factor, cosφ
0,86
Weight, kg
24,0
Consumed nominal current, In (A)
6,5
Dimension (height of rotation axis), mm
90
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
7,0
The ratio of starting torque to rated power, Mstart/Mn
2,6
