VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm

Axial fan Low Pressure

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm
Out of stock
Product Code: ID11370
24 464₴

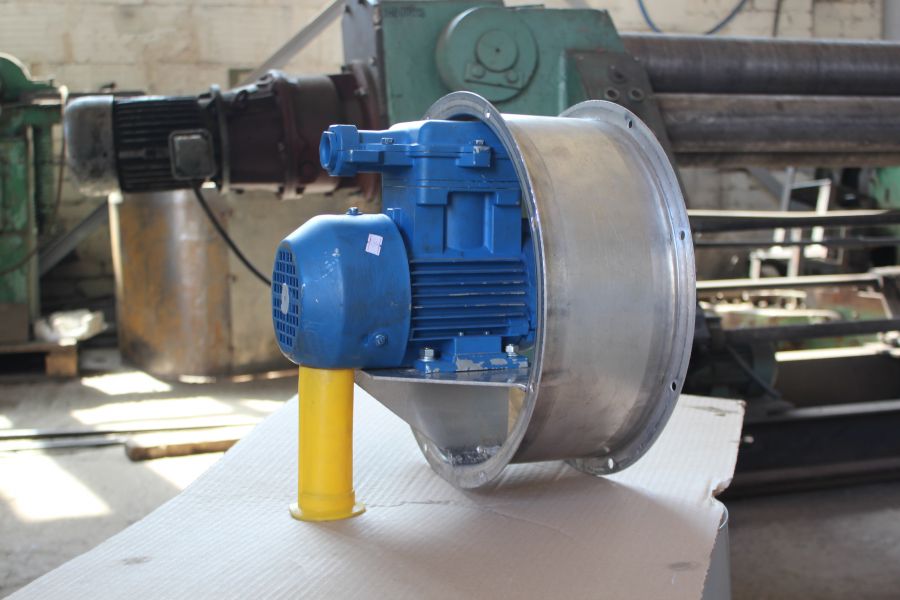

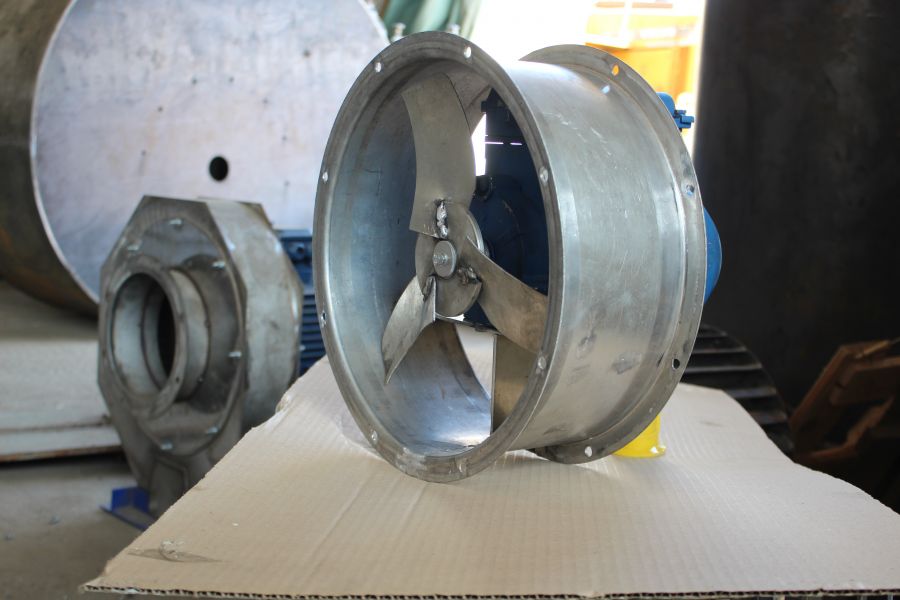

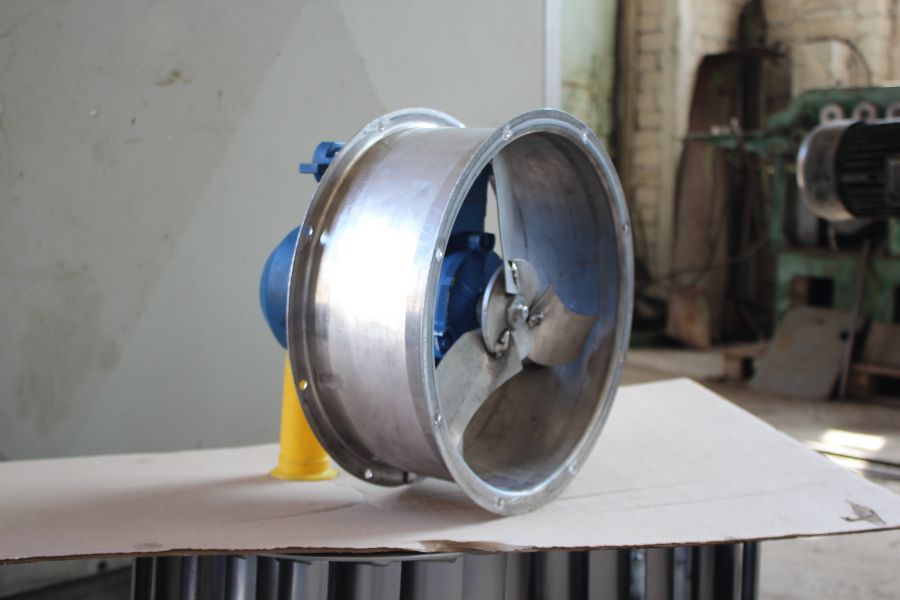

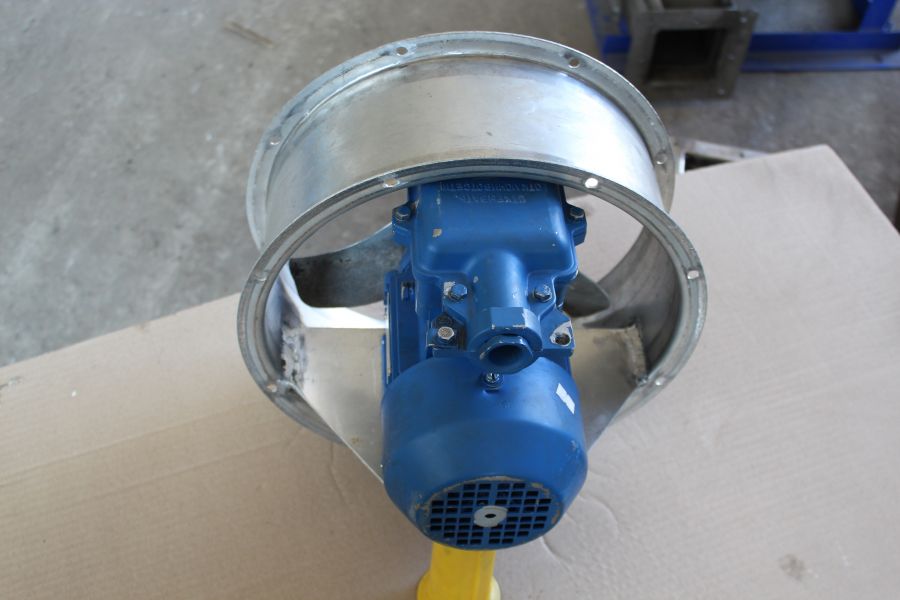

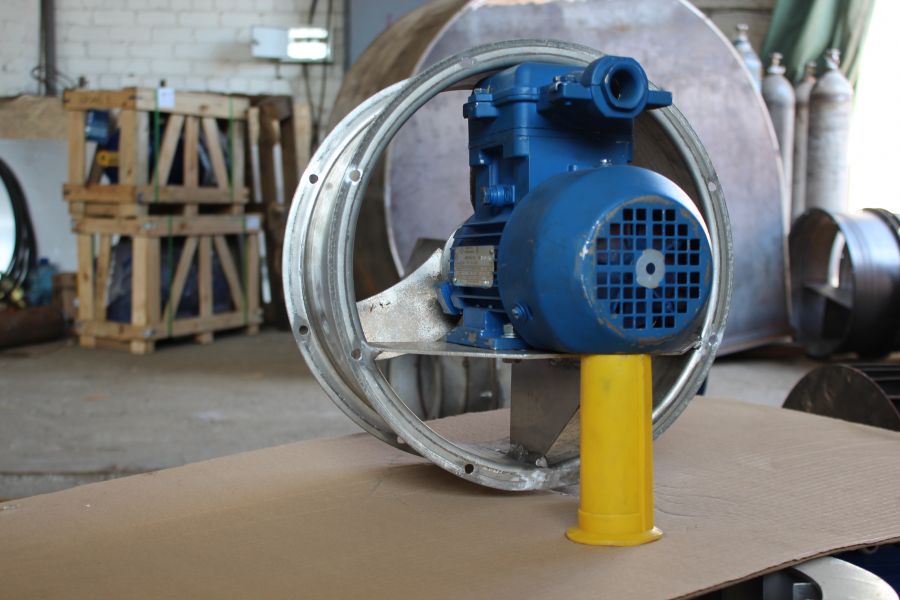

Axial fan series VO 06-300 (VO 13-290) #5 with electric motor Electric motor 4VR 71 B4 0.75 Power kW 1500 Vol./Min industrial application made of aluminum alloy for explosive environments

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VO 06-300 (VO 13-290) VZ #5 w/ motor 4VR 71 B4 0.75 kW 1500 rpm
24 464₴
Specifications
Common
Model
VO 06-300 (VO 13-290) #5
Electric motor 4VR 71 B4
Common
Model
4VR 71 B4
Motor type
asynchronous
Kind
explosion-proof
Motor series
4VR
Shaft diameter, mm
19
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
0.75
Vol./Min
1500
n, vol./Min
1350
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
72,0
Power factor, cosφ
0,77
Weight, kg
15,6
Consumed nominal current, In (A)
2,2
Dimension (height of rotation axis), mm
71
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,5
The ratio of starting current to the nominal, Istart/In
5,0
The ratio of starting torque to rated power, Mstart/Mn
2,6
