VO 06-300 (VO 13-290) #4 w/motor AIR 71 B2 1.1 kW 3000 rpm

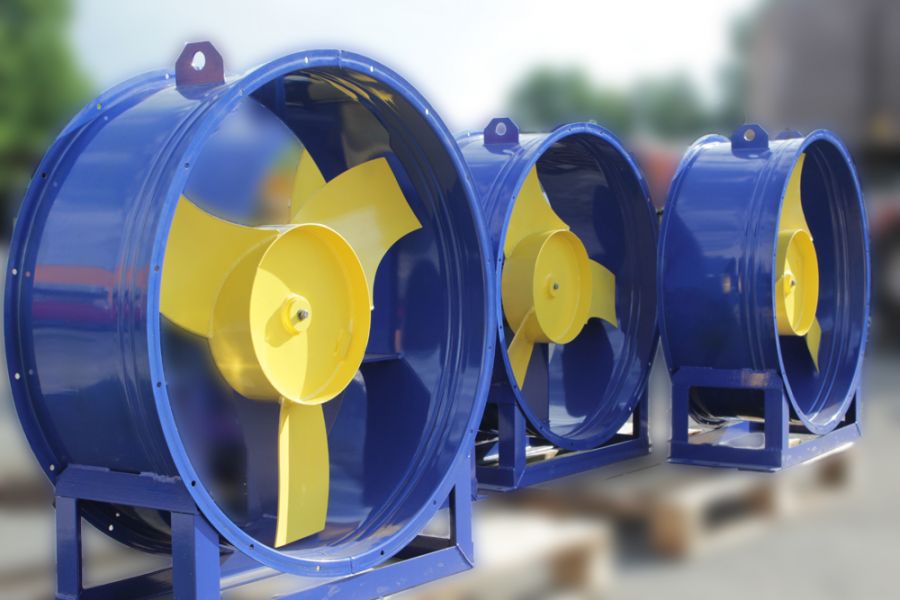

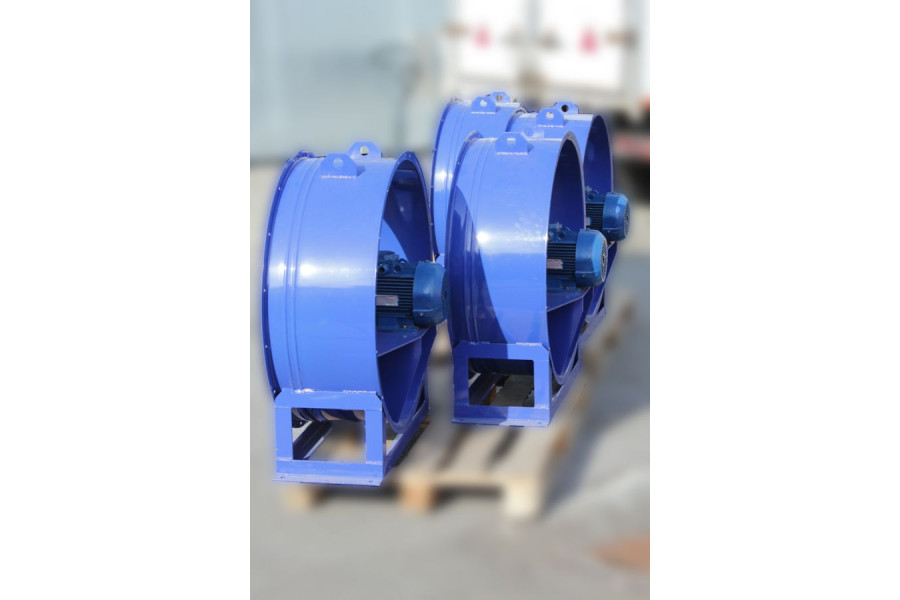

Axial fan of the VO 06-300 (VO 13-290) #4 w/motor AIR 71 B2 1.1 kW 3000 rpm series for general industrial use, made of carbon steel.

This axial fan, like other fans of the VO series, moves air or gas along the axis of the impeller, which is driven by an electric motor. The fan is intended for ventilation or air heating systems and other gas mixtures whose aggressiveness toward standard-grade carbon steel does not exceed that of air at temperatures from -40 °C to +40 °C (up to 45 °C for tropical versions), and which do not contain dust or solid particles above 10 mg/m³, nor fibrous or sticky substances.

The fan is designed for use in temperate (U) climate conditions (placement category 2) and tropical (T) climate (placement category 2). The RMS vibration speed should not exceed 6.3 mm/s. Installation on structures exposed to vibration exceeding 2 mm/s is not allowed. The fan must be installed in locations protected from precipitation. The model is an analogue of low-pressure axial fans VO 12-300, VO 13-300, VO 12-290, VO 12-330, VO 13-290, VO 14-300, VO 14-320, VO 13-320.

The axial fan VO 06-300 (VO 13-290) #4 (VO 12-300) consists of the following components, which can be purchased separately:

- axial fan VO 06-300 (VO 13-290) #4 (VO 12-300) without motor;
- axial fan impeller VO 06-300 (VO 13-290) #4;
- fan casing (shell) VO 06-300 (VO 13-290) #4;
- Electric motor AIR 71 B2.

General information about axial fans VO 06-300 (VO 13-290) #4 w/motor AIR 71 B2 1.1 kW 3000 rpm:

• low-pressure type;
• single-side suction;
• three blades;
• right-hand rotation;
• material: carbon steel;

Applications of axial fans VO 06-300 (VO 13-290) #4 w/motor AIR 71 B2 1.1 kW 3000 rpm:

The fan is used in air heating systems, supply and exhaust ventilation, air conditioning, and various technological installations that do not contain explosive substances. It is also suitable for mechanical engineering components where applicable and in ventilation or heating systems in residential or industrial premises.

Axial fans are used:

• in air conditioning systems;
• in supply and exhaust ventilation systems;
• in air heating systems;
• in various industrial applications;
• for other sanitary and industrial purposes.

Purpose of axial fans VO 06-300 (VO 13-290) #4 w/motor AIR 71 B2 1.1 kW 3000 rpm:

Designed for use in ventilation or air heating systems, with gases that have aggressiveness not exceeding air, temperature from -40 °C to +40 °C (up to 45 °C for tropical execution), no more than 10 mg/m³ of dust, and without fibrous or sticky components.

Design and operating principle of axial fans VO 06-300 (VO 13-290) #4 w/motor AIR 71 B2 1.1 kW 3000 rpm:

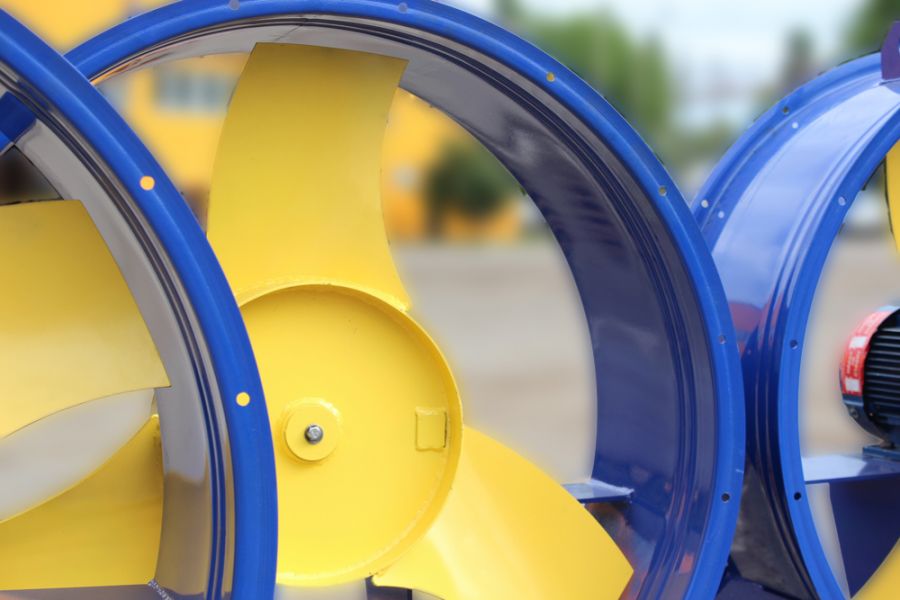

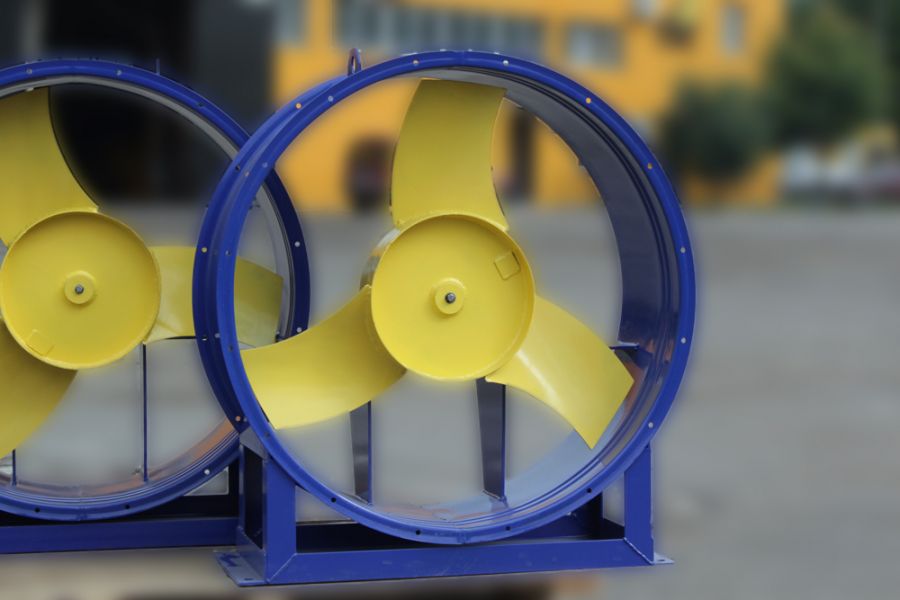

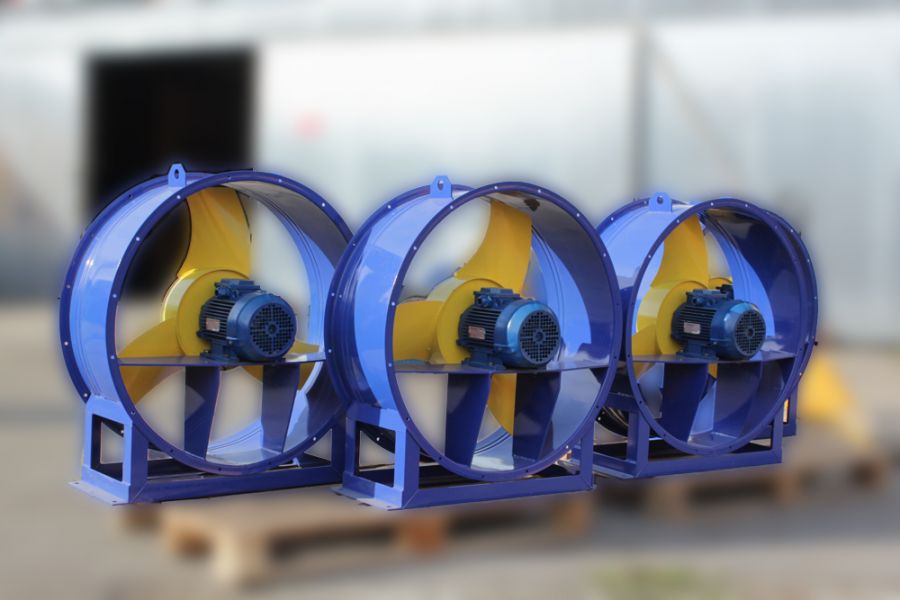

The impeller is mounted directly on the motor shaft. The housing is cylindrical, with flanged ends for duct connection. A mounting base is provided for installation. The impeller consists of a shell, disk, hub, and three blades. The fan rotates clockwise (right-hand).

Air is moved by transferring rotational energy from the impeller in the plane of its axis.

Main components of axial fan VO 06-300 (VO 13-290) #4 w/motor AIR 71 B2 1.1 kW 3000 rpm:

• cylindrical housing with flanged ends;
• impeller mounted directly on the motor shaft;
• Electric motor AIR 71 B2;
• base frame for mounting on a foundation.
