VO 06-300 (VO 13-290) VZ #4 w/motor 4VR 63 B4 0.37 kW 1500 rpm

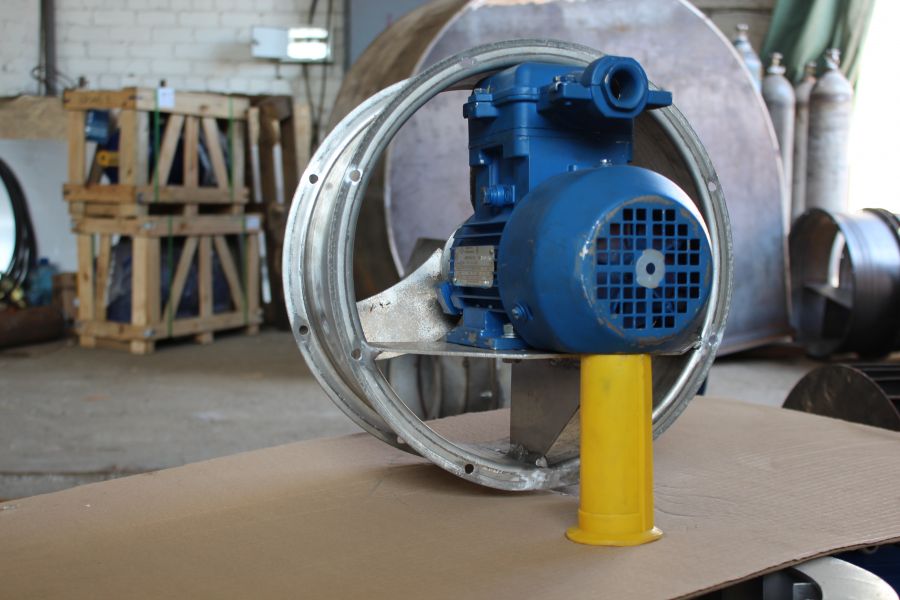

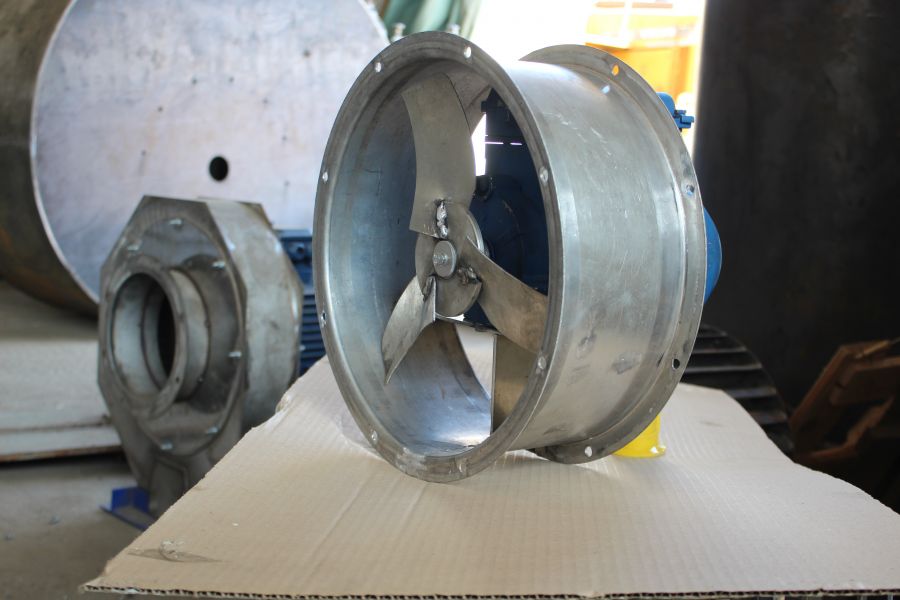

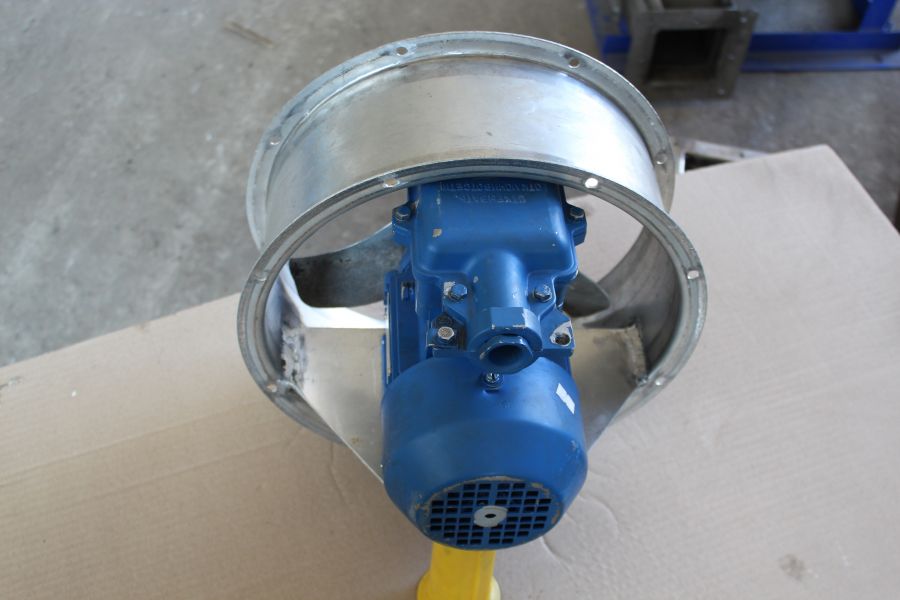

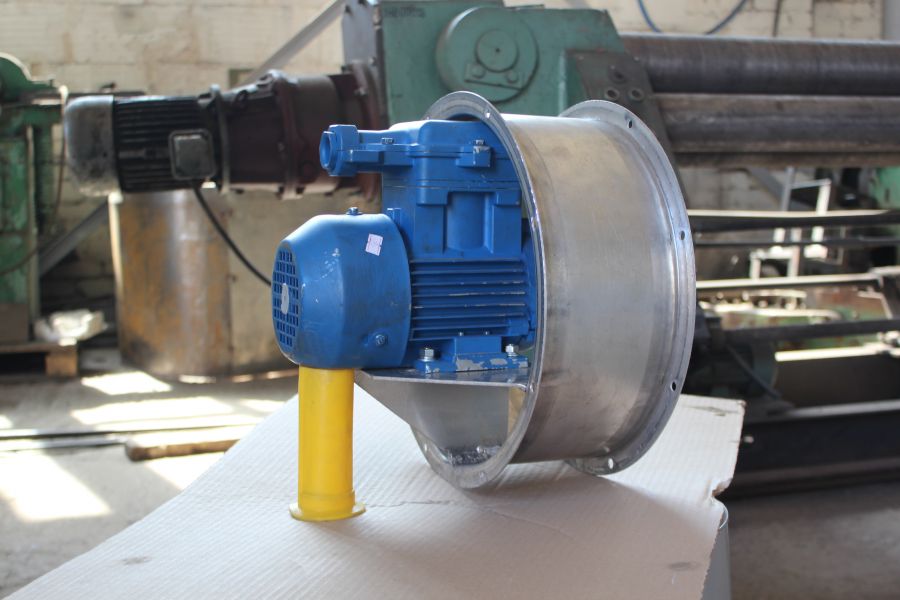

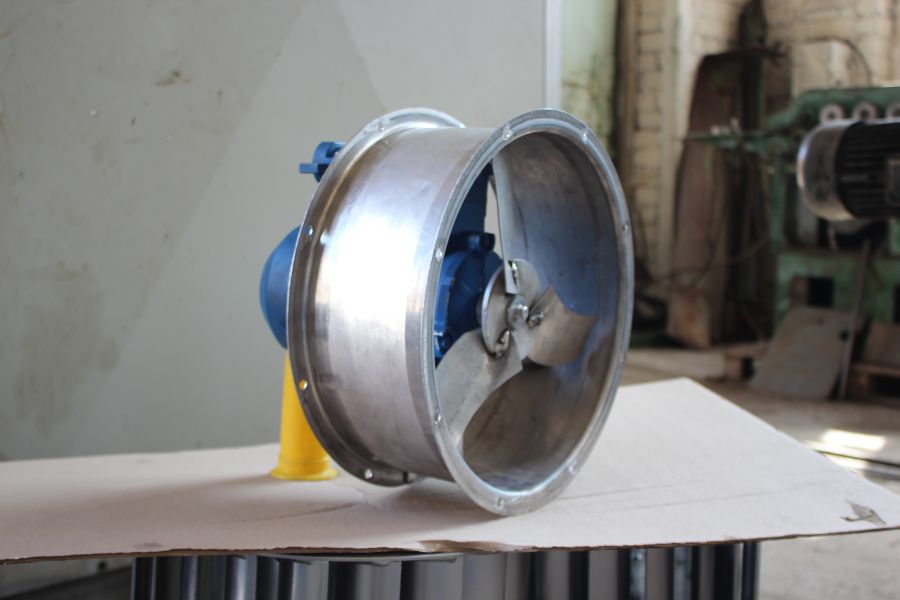

Axial fan of the series VO 06-300 (VO 13-290) #4 (VO 12-300) with electric motor Electric motor 4VR 63 B4 0.37 Power kW 1500 Vol./Min for general industrial use, made of aluminum alloys for explosive environments.

This axial fan, like other fans of the VO series, moves air or gas in the plane of the impeller axis, which is driven by an electric motor. The VO series axial fan is designed for transporting explosive gas-vapor-air mixtures of categories 1 and 2, groups T1, T2, and T3, according to the classification of the "Rules for Electrical Installations" (PUE), which do not cause accelerated corrosion of the materials in the airflow section. It handles air at temperatures from -40°C to +40°C (+45°C for tropical version fans), free from dust and other solid particles in concentrations exceeding 10 mg/m³, as well as fibrous materials and sticky substances.

The fan is intended for use in moderate (U) climate conditions (placement category 2) and tropical (T) climate (placement category 2).

The root mean square value of vibration velocity does not exceed 6.3 mm/s. Installation of the fan at facilities where vibration velocity exceeds 2 mm/s is not allowed.

The fan must be installed in locations protected from atmospheric precipitation.

The model is an analogue of low-pressure axial fans VO 12-300, VO 13-300, VO 12-290, VO 12-330, VO 13-290, VO 14-300, VO 14-320, VO 13-320.

Application area of axial fans VO 06-300 (VO 13-290) VZ #4 w/motor 4VR 63 B4 0.37 kW 1500 rpm (VO 12-300) for explosive environments:

The fan is used in air heating systems, supply and exhaust ventilation, air conditioning systems, and various technological installations that may contain explosive substances; in machine-building assemblies, if the fan requirements match the application; as well as in ventilation and air heating systems of residential premises. The axial fan VO 06-300 (VO 13-290) VZ #4 w/motor 4VR 63 B4 0.37 kW 1500 rpm (VO 12-300) is also used for other sanitary and production purposes in explosive environments.

Axial fans are used in:

• air conditioning systems;
• supply and exhaust systems;
• air heating systems;
• various technological installations;
• other sanitary and industrial purposes.

Axial fan VO 06-300 (VO 13-290) #4 (VO 12-300) consists of the following units, which can be purchased separately:

- axial fan VO 06-300 (VO 13-290) #4 without electric motor;
- axial fan impeller VO 06-300 (VO 13-290) #4;
- fan casing (housing) VO 06-300 (VO 13-290) #4 (VO 12-300);
- electric motor Electric motor 4VR 63 B4 0.37 Power kW 1500 Vol./Min for fan VO 06-300 (VO 13-290) #4.

General information about axial fans VO 06-300 (VO 13-290) VZ #4 w/motor 4VR 63 B4 0.37 kW 1500 rpm (VO 12-300):

• low pressure;
• single-sided suction;
• number of blades – 3 pcs.;
• rotation direction – right;
• material: aluminum alloys;

Purpose of axial fans VO 06-300 (VO 12-300):

Designed for ventilation or air heating systems for air and other gas mixtures with aggressiveness no higher than that of air towards ordinary-quality carbon steel at temperatures from -40°C to +40°C (+45°C for tropical versions). The medium must not contain dust or solid particles exceeding 10 mg/m³, fibrous materials, or sticky substances.

Design and operating principle of axial fans series VO 06-300 (VO 13-290) #4:

The axial fan VO 06-300 (VO 13-290) VZ #4 w/motor 4VR 63 B4 0.37 kW 1500 rpm (VO 12-300) has an impeller mounted directly on the shaft of the electric motor. The fan housing is cylindrical, flanged on both sides for duct connection. A support is provided for mounting the fan on a foundation. The impeller consists of a shroud, disc, hub, and three blades welded to the shroud. The impeller rotates in a right-hand direction.

Air movement is achieved by transferring the rotational energy of the impeller to the air, occurring in the axial plane of the impeller, which is driven by the electric motor.

Completeness of axial fan VO 06-300 (VO 13-290) #4 (VO 12-300) with electric motor Electric motor 4VR 63 B4 0.37 Power kW 1500 Vol./Min:

The axial fan VO 06-300 (VO 13-290) VZ #4 w/motor 4VR 63 B4 0.37 kW 1500 rpm (VO 12-300), equipped with electric motor Electric motor 4VR 63 B4 0.37 Power kW 1500 Vol./Min, consists of the following main components:

• fan housing, cylindrical with flanged edges on both sides of the impeller;
• impeller mounted directly on the motor shaft;
• electric motor Electric motor 4VR 63 B4 0.37 Power kW 1500 Vol./Min;
• base (support) for mounting the fan to the foundation.
