VO 06-300 (VO 13-290) #10 w/motor AIR 112 MA6 3 kW 1000 rpm

Axial fan of series VO 06-300 (VO 13-290) #10 (VO 12-300) with electric motor Electric motor AIR 112 MA6 3.0 Power kW 1000 Vol./Min for general industrial use, made of carbon steel.

This axial fan, like other axial fans of the VO series, moves air or gas in the plane of the impeller axis, which is driven by an electric motor. The axial fan of the VO series is designed for ventilation or air heating systems and other gas mixtures, whose aggressiveness in relation to ordinary-quality carbon steel is not higher than the aggressiveness of air at temperatures from minus 40 °C to plus 40 °C (45 °C for tropical versions), and do not contain dust and other solid impurities in excess of 10 mg/m³, as well as fibrous materials and sticky substances.

The fan is designed for operation in temperate (U) climate (placement category 2) and tropical (T) climate (placement category 2).

The RMS vibration velocity value does not exceed 6.3 mm/s. Installation of fans at sites with vibration velocity above 2 mm/s is not allowed.

The fan must be installed in places protected from atmospheric precipitation.

This model is an analogue of low-pressure axial fans VO 12-300, VO 13-300, VO 12-290, VO 12-330, VO 13-290, VO 14-300, VO 14-320, VO 13-320.

Axial fan VO 06-300 (VO 13-290) #10 (VO 12-300) consists of the following units, which can be purchased separately:

- axial fan VO 06-300 (VO 13-290) #10 (VO 12-300) without electric motor;
- axial fan impeller VO 06-300 (VO 13-290) #10;
- fan casing (housing) VO 06-300 (VO 13-290) #10
- electric motor Electric motor AIR 112 MA6 3.0 Power kW 1000 Vol./Min for fan VO 06-300 (VO 13-290) #10.

General information about axial fans VO 06-300 (VO 13-290) #10 w/motor AIR 112 MA6 3 kW 1000 rpm (VO 12-300):

• low pressure;
• single-side suction;
• number of blades – 3 pcs.;
• rotation direction – right;
• material – carbon steel;
• fans are manufactured according to TU U 3.40-00241264-050-95.

Application areas of axial fans VO 06-300 (VO 13-290) #10 w/motor AIR 112 MA6 3 kW 1000 rpm (VO 12-300):

The fan is used in air heating systems, supply and exhaust ventilation, air conditioning and various technological units that do not contain explosive substances; in machine-building components if the fan requirements correspond to their intended use; as well as in ventilation and air heating systems for residential premises. Axial fan VO 06-300 (VO 13-290) #10 w/motor AIR 112 MA6 3 kW 1000 rpm (VO 12-300) is also used for other sanitary-engineering and industrial purposes.

Axial fans are used in:

• air conditioning systems;
• supply and exhaust ventilation systems;
• air heating systems;
• various technological units;
• other sanitary and industrial purposes.

Purpose of axial fans VO 06-300 (VO 12-300):

Designed for ventilation or air heating systems and other gas mixtures, whose aggressiveness in relation to ordinary-quality carbon steel is not higher than the aggressiveness of air at temperatures from minus 40 °C to plus 40 °C (45 °C for tropical versions), not containing dust and other solid impurities in excess of 10 mg/m³, as well as fibrous materials and sticky substances.

Design and operation principle of axial fans series VO 06-300 (VO 13-290) #10 (VO 12-300):

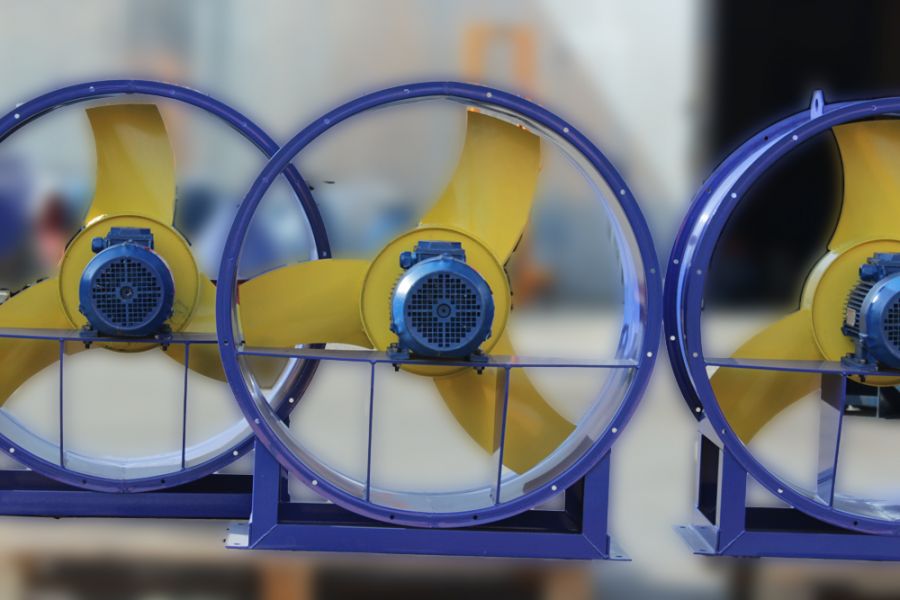

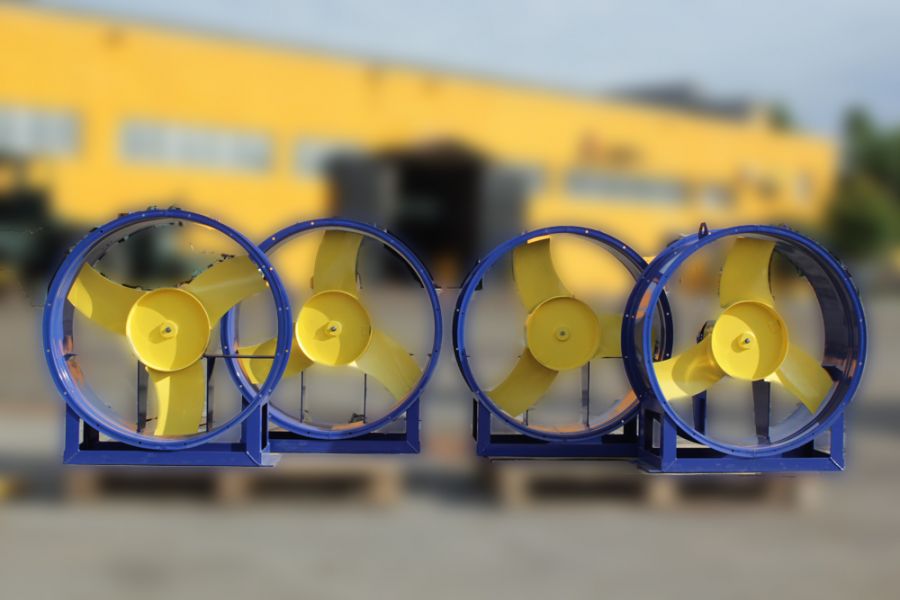

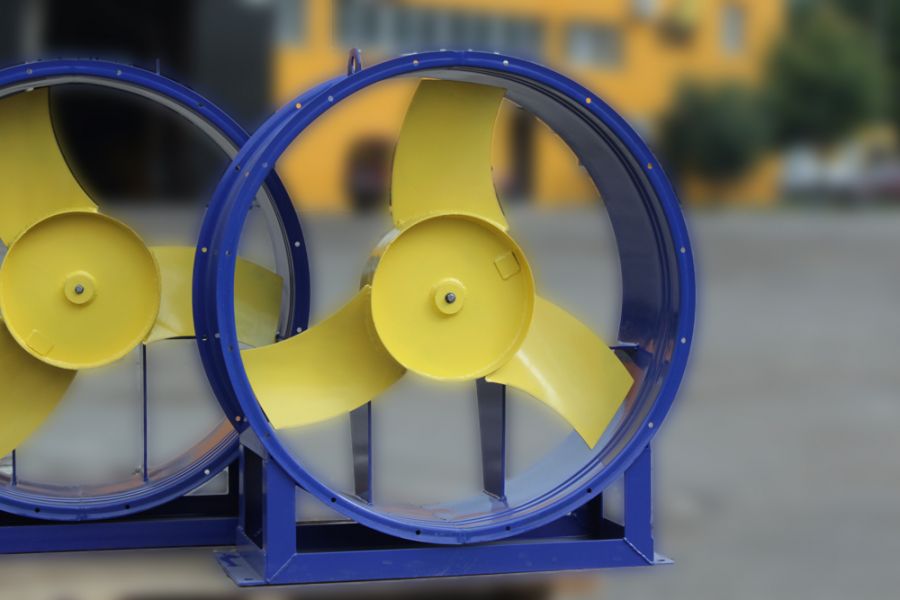

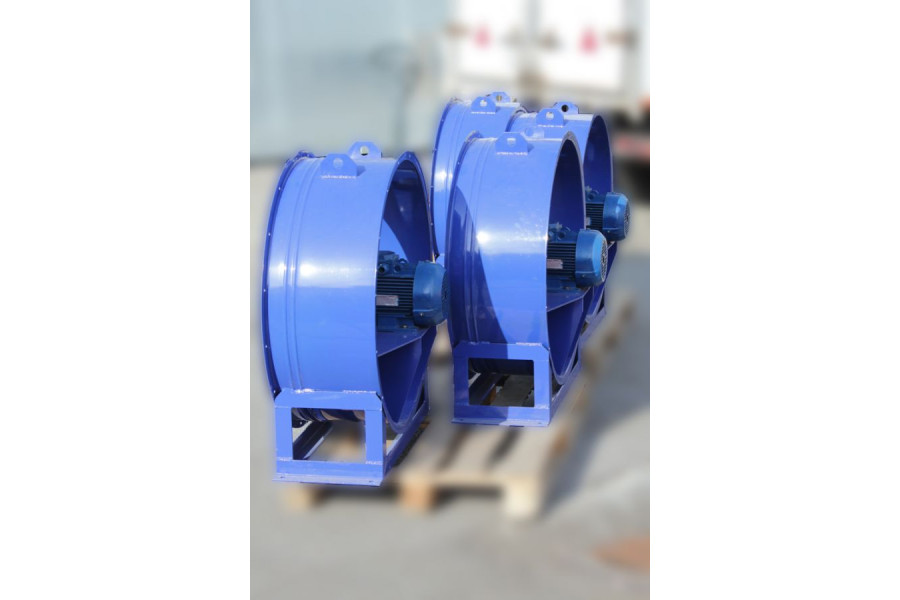

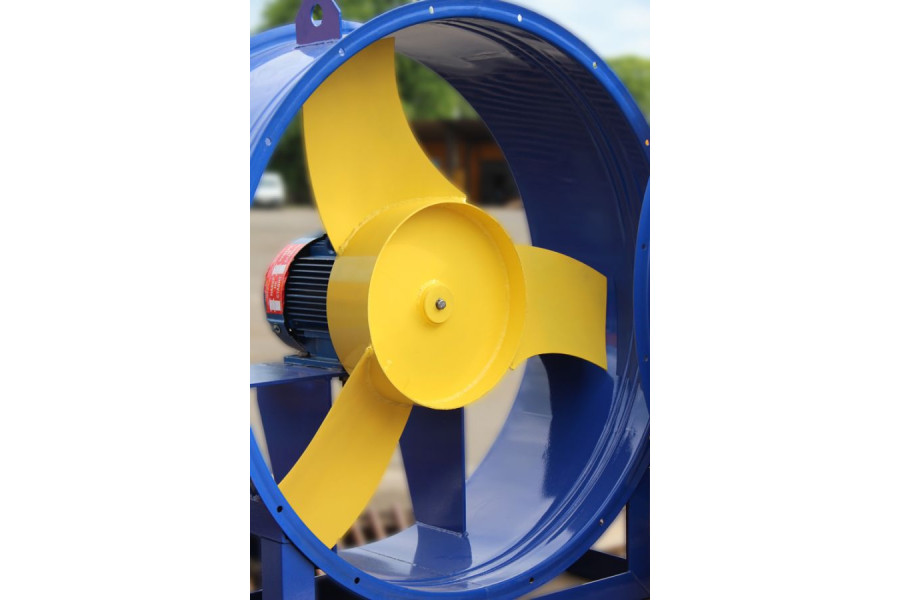

The axial fan VO 06-300 (VO 13-290) #10 w/motor AIR 112 MA6 3 kW 1000 rpm (VO 12-300) has an impeller mounted directly on the shaft of the electric motor. The fan casing is cylindrical, with flanged edges on both sides for connection to air ducts. A base is provided for installation on a foundation. The impeller consists of a shroud, disc, hub, and three blades welded to the shroud. The fan has right-hand rotation.

Air movement is achieved by transferring rotational energy from the impeller to the air, occurring in the plane of the impeller axis driven by the electric motor.

Configuration of axial fan VO 06-300 (VO 13-290) #10 (VO 12-300) with electric motor Electric motor AIR 112 MA6 3.0 Power kW 1000 Vol./Min:

Axial fan VO 06-300 (VO 13-290) #10 w/motor AIR 112 MA6 3 kW 1000 rpm (VO 12-300), equipped with electric motor Electric motor AIR 112 MA6 3.0 Power kW 1000 Vol./Min, consists of the following main components:

• fan casing in the form of a cylinder, flanged on both sides for the impeller;
• impeller mounted directly on the shaft of the electric motor;
• electric motor Electric motor AIR 112 MA6 3.0 Power kW 1000 Vol./Min;
• frame (base) for fan foundation mounting.
