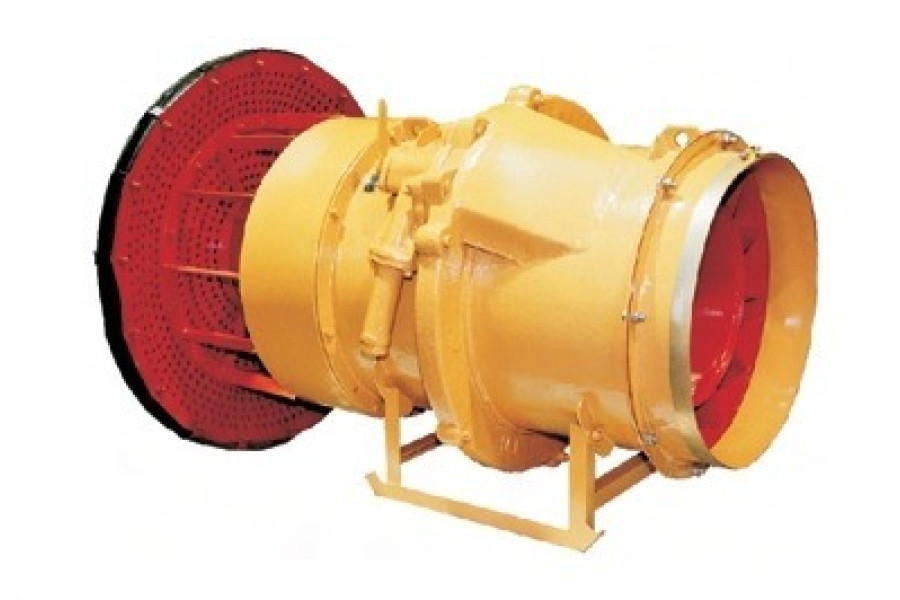

VMP-6/1

Fan local ventilation

Brand: КВЗ
0
All about product
Description
Specification
Reviews 0
Questions0
Popular
VMP-6/1
On order
Product Code: ID31397
negotiable

Local ventilation fan % PROD_NAME%; Performance: 18720 m3/s; Total pressure: 2000 Pa.

Diameter, mm:600/800
Produc­tivity, m³/h:18720
Ultimate pressure, Pa:2000
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VMP-6/1
Description

Application of the VMP-6/1 Fan

When ventilating dead-end preparatory workings, the operating modes of the VMP-6/1 fan change depending on the amount of air consumed. Typical modes include prolonged ventilation under normal methane emission conditions and short-term operation after blasting. To regulate the fan's airflow capacity, nozzle control is used by partially blocking the nozzle channels. The volume of air delivered by the fan depends on the compressed air pressure before the nozzle. The pressure difference created by the fan system can be increased by connecting two VMP-6/1 fans in series. The VMP-6/1 fan is recommended for use primarily with pipelines of 600 mm and 800 mm in diameter.

Advantages of the Local Ventilation Fan VMP-6/1

  • The VMP-6/1 fan is equipped with a GShP silencer to reduce noise to acceptable sanitary standards;
  • Despite its relatively small size, the performance of the VMP-6/1 fan exceeds that of comparable electric fans;
  • The fans can operate in both blowing and suction modes.
Specifications
Common
Model
VMP-6/1
Weight, kg
340
Height, mm
1000
Width, mm
1000
0,5
Diameter, mm
600/800
Maximum efficiency, ηmax (%)
33
Noise level at 3m, dB(A)
82
Produc­tivity, m³/h
18720
Ultimate pressure, Pa
2000
