VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3

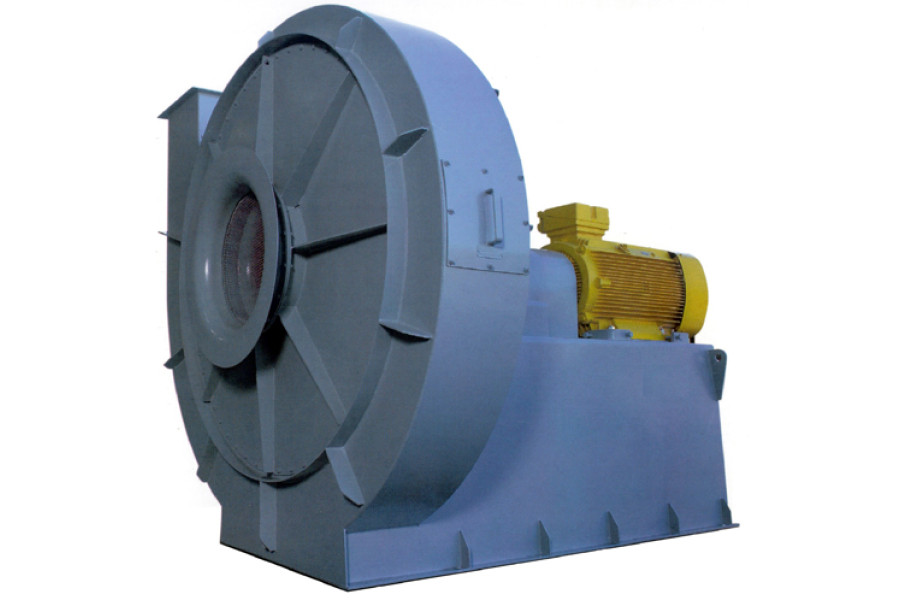

Mill centrifugal fan

Brand: КВЗ
0
All about product
Description
Specification
Aerodynamic Characteristics
Dimensions
Reviews 0
Questions0
Popular
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
On order
Product Code: ID16424
2 581 087₴

Centrifugal mill fan VM #180-1100. Performance: 180000 m 3/hour; Total pressure: 14000 Pa.

Produc­tivity, m³/h:180000
Ultimate pressure, Pa:14000
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm, execution 3
2 581 087₴
Description

Purpose of Mill Fans VM #180-1100

Centrifugal single-inlet mill fans VM #180-1100 are designed for pneumatic transportation of coal dust in fuel preparation systems of solid fuel boilers using drum-ball mills. They can also be used in metal production lines at ferrous and non-ferrous metallurgy plants. These fans generate high pressure at relatively low capacity and are subject to intense abrasive wear due to coal dust.

General Information about Mill Fans VM #180-1100

  • Direct drive
  • Spiral scroll housing
  • Single-side suction
  • Number of blades – 12
  • Forward-curved blades
  • Direction of rotation – right and left

Operating Conditions of Mill Fans VM #180-1100

The fan design allows installation after separators and cyclones and permits air dust concentration up to 80 g of coal dust per 1 m3 of air. Operation is allowed at rotation speeds up to [option_values.41.value] rpm. The maximum temperature of the transported medium for mill fans is 200 °C.

Casing Rotation Angles of Mill Fans VM #180-1100

Right rotation (viewed from the motor side)
Casing rotation of mill fan VM #180-1100

Left rotation (viewed from the motor side)

Specifications
Common
Model
VM #180-1100
Motor type
AOD
Kind
3
Max. transported air temperature, °C
200
Pollution limits, mg/m3
80
Weight, kg
12160
Maximum efficiency, ηmax (%)
72
Produc­tivity, m³/h
180000
The ratio of impeller diameter to nominal, D/Dn
1
Ultimate pressure, Pa
14000
Electric motor AOD-1250-4U1
Common
Model
AOD-1250-4U1
Motor type
asynchronous
Motor series
AOD
Shaft diameter, mm
140
Voltage, V
6000
Power kW
1250
Vol./Min
1500
Climatic performance
U1
Class of protection, IP
44/54
Efficiency, %
95,5
Power factor, cosφ
0,89
Weight, kg
6200
S1
1,84
Acceptable levels of dust inlet, mg/m3
10
Consumed nominal current, In (A)
141,5
Cooling capacity, kW
1SAO1A61
Design scheme
М6
Installation design
IM1001
Rated slip, %
0,94
Temperature of the conveyed medium, °C
+40/-45
The ratio of max. torque to rated power, Mmax/Mn
2,2
The ratio of starting current to the nominal, Istart/In
5,5
The ratio of starting torque to rated power, Mstart/Mn
1,0
Aerodynamic characteristics VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm

Overall dimensions of the fan VM #180-1100 w/motor AOD-1250-4U1 1200 kW 1500 rpm
