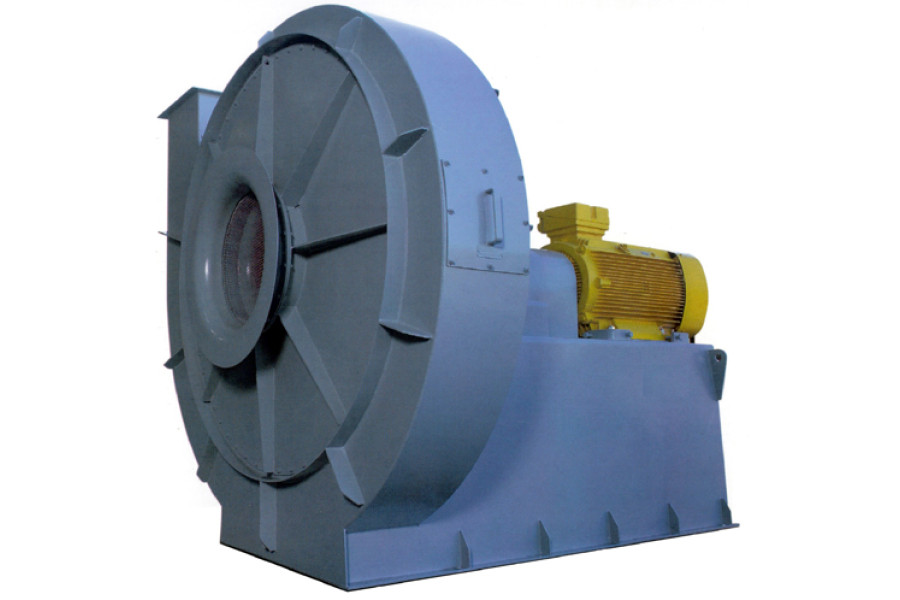

VM #18 w/motor DAZO4-400X-4МУ1 400 kW 1500 rpm, execution 3

On order

Product Code: ID16416

negotiable

Centrifugal mill fan VM #18. Performance: 110000 m ³/hour; Total pressure: 10780 Pa.

Productivity, m³/h:110000

Ultimate pressure, Pa:10780

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

VM #18 w/motor DAZO4-400X-4МУ1 400 kW 1500 rpm, execution 3

Description

Purpose of Mill Fans VM #18

Centrifugal single-inlet mill fans VM #18 are designed for pneumatic transportation of coal dust in fuel preparation systems of solid fuel boilers using drum-ball mills. They can also be used in metal production lines at ferrous and non-ferrous metallurgy plants. These fans generate high pressure at relatively low capacity and are subject to intense abrasive wear due to coal dust.

General Information about Mill Fans VM #18

Direct drive
Spiral scroll housing
Single-side suction
Number of blades – 12
Forward-curved blades
Direction of rotation – right and left

Operating Conditions of Mill Fans VM #18

The fan design allows installation after separators and cyclones and permits air dust concentration up to 80 g of coal dust per 1 m³ of air. Operation is allowed at rotation speeds up to [option_values.41.value] rpm. The maximum temperature of the transported medium for mill fans is 200 °C.

Casing Rotation Angles of Mill Fans VM #18

Right rotation (viewed from the motor side)
Casing rotation of mill fan VM #18

Left rotation (viewed from the motor side)
Casing rotation of mill fan VM #18

Specifications

Common

Model

VM #18

Motor type

DAZO

Max. transported air temperature, °C

200

Pollution limits, mg/m3

Weight, kg

2630

Productivity, m³/h

110000

Ultimate pressure, Pa

10780

Electric motor DAZO4-400X-4MU1

Common

Model

DA3O4-400X-4MU1

Motor type

asynchronous

Motor series

DA3O4

Shaft diameter, mm

100

Voltage, V

6000

Frequency of the current, Hz

Power kW

400

Vol./Min

1500

Climatic performance

Class of protection, IP

Efficiency, %

94,2

Power factor, cosφ

0,87

Weight, kg

2330

920

Consumed nominal current, In (A)

Cooling capacity, kW

ICА01A61

Design scheme

prolonged S1

Dimension (height of rotation axis), mm

400

Installation design

IM1001

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,8

The ratio of starting current to the nominal, Istart/In

7,0

The ratio of starting torque to rated power, Mstart/Mn

1,3

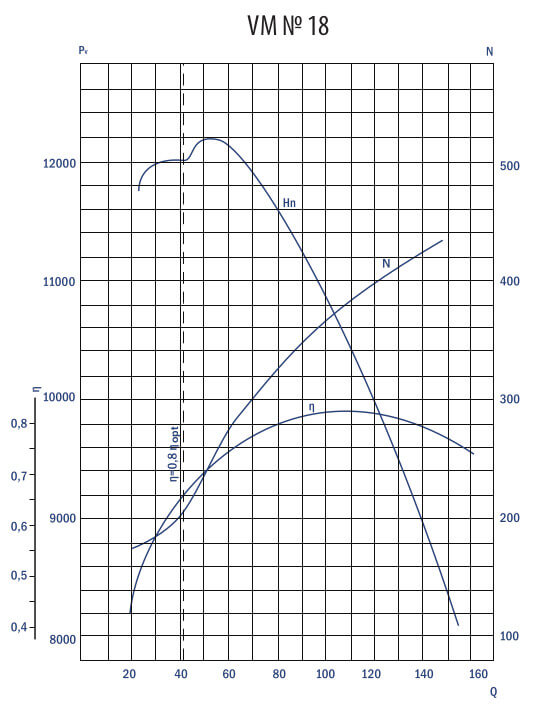

Aerodynamic characteristics VM #18 w/motor DAZO4-400X-4МУ1 400 kW 1500 rpm
