VM #17 w/motor AIR 355 M4 315 kW 1500 rpm, execution 3

Mill centrifugal fan

Brand: КВЗ
0
All about product
Description
Specification
Aerodynamic Characteristics
Reviews 0
Questions0
In Stock
Product Code: ID37953
1 419 117₴
Found cheaper?

Centrifugal mill fan VM #17. Performance: 55850 m 3/hour; Total pressure: 9300 Pa.

Produc­tivity, m³/h:55850
Ultimate pressure, Pa:9300
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VM #17 w/motor AIR 355 M4 315 kW 1500 rpm, execution 3
1 419 117₴
Description

Purpose of Mill Fans VM #17

Centrifugal single-inlet mill fans VM #17 are designed for pneumatic transportation of coal dust in fuel preparation systems of solid fuel boilers using drum-ball mills. They can also be used in metal production lines at ferrous and non-ferrous metallurgy plants. These fans generate high pressure at relatively low capacity and are subject to intense abrasive wear due to coal dust.

General Information about Mill Fans VM #17

  • Direct drive
  • Spiral scroll housing
  • Single-side suction
  • Number of blades – 12
  • Forward-curved blades
  • Direction of rotation – right and left

Operating Conditions of Mill Fans VM #17

The fan design allows installation after separators and cyclones and permits air dust concentration up to 80 g of coal dust per 1 m3 of air. Operation is allowed at rotation speeds up to [option_values.41.value] rpm. The maximum temperature of the transported medium for mill fans is 200 °C.

Casing Rotation Angles of Mill Fans VM #17

Right rotation (viewed from the motor side)
Casing rotation of mill fan VM #17

Left rotation (viewed from the motor side)
Casing rotation of mill fan VM #17

Specifications
Common
Model
VM #17
Motor type
A, 5A, DAZO
Kind
3
Max. transported air temperature, °C
200
Pollution limits, mg/m3
80
Weight, kg
4000
Produc­tivity, m³/h
55850
The ratio of impeller diameter to nominal, D/Dn
1
Ultimate pressure, Pa
9300
Electric motor AIR 355 M4
Common
Model
AIR 355 M4
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
90
Voltage, V
380/660
Frequency of the current, Hz
50
Power kW
315.0
Vol./Min
1500
n, vol./Min
1490
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
95,8
Power factor, cosφ
0,91
Weight, kg
1870
Consumed nominal current, In (A)
550
Dimension (height of rotation axis), mm
355
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
6,8
The ratio of starting torque to rated power, Mstart/Mn
2,3

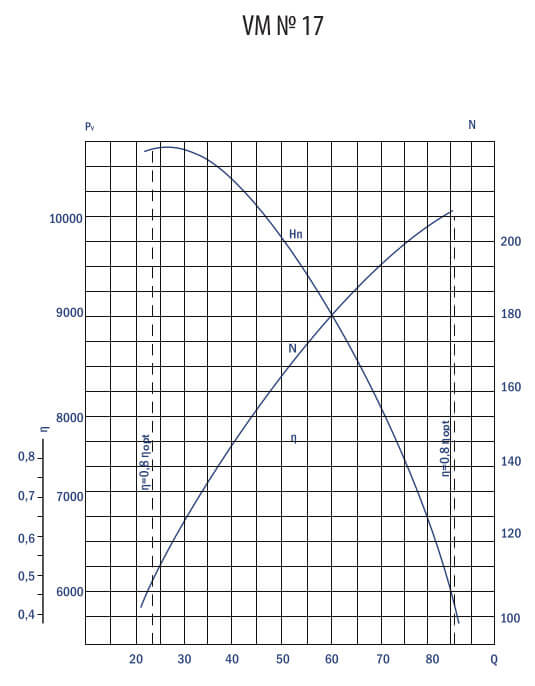

Aerodynamic characteristics VM #17 w/motor AIR 355 M4 315 kW 1500 rpm
