VM #160-850 w/motor DAZO4-450Y-6MU1 630 kW 1000 rpm, execution 3

On order

Product Code: ID16422

2 581 087₴

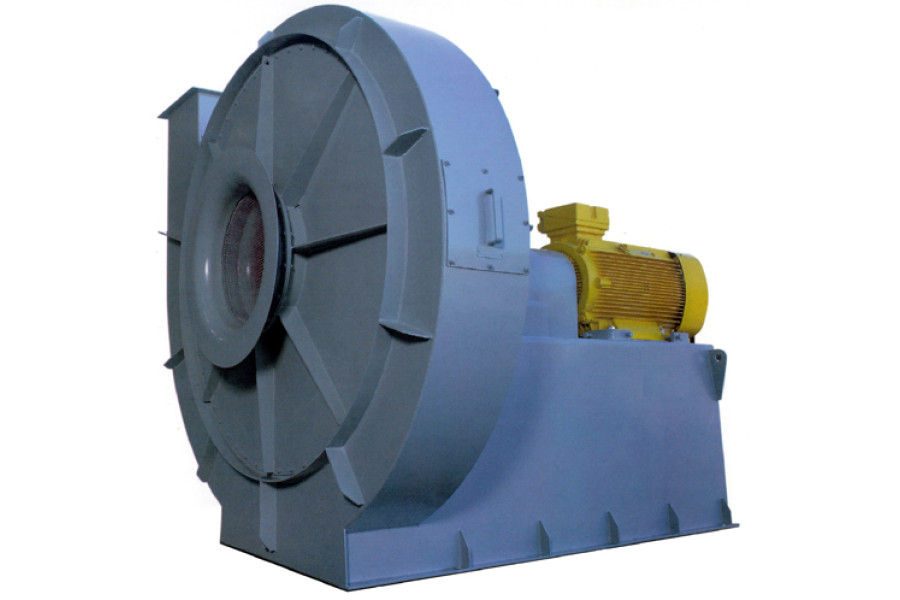

Centrifugal mill fan VM #160-850. Performance: 161400 m ³/hour; Total pressure: 8820 Pa.

Productivity, m³/h:161400

Ultimate pressure, Pa:8820

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

VM #160-850 w/motor DAZO4-450Y-6MU1 630 kW 1000 rpm, execution 3

2 581 087₴

Description

Purpose of Mill Fans VM #160-850

Centrifugal single-inlet mill fans VM #160-850 are designed for pneumatic transportation of coal dust in fuel preparation systems of solid fuel boilers using drum-ball mills. They can also be used in metal production lines at ferrous and non-ferrous metallurgy plants. These fans generate high pressure at relatively low capacity and are subject to intense abrasive wear due to coal dust.

General Information about Mill Fans VM #160-850

Direct drive
Spiral scroll housing
Single-side suction
Number of blades – 12
Forward-curved blades
Direction of rotation – right and left

Operating Conditions of Mill Fans VM #160-850

The fan design allows installation after separators and cyclones and permits air dust concentration up to 80 g of coal dust per 1 m³ of air. Operation is allowed at rotation speeds up to [option_values.41.value] rpm. The maximum temperature of the transported medium for mill fans is 200 °C.

Casing Rotation Angles of Mill Fans VM #160-850

Right rotation (viewed from the motor side)
Casing rotation of mill fan VM #160-850

Left rotation (viewed from the motor side)

Specifications

Common

Model

VM #160-850

Motor type

DAZO

Kind

Max. transported air temperature, °C

200

Pollution limits, mg/m3

Weight, kg

10644

Maximum efficiency, ηmax (%)

Productivity, m³/h

161400

The ratio of impeller diameter to nominal, D/Dn

Ultimate pressure, Pa

8820

Electric motor DAZO4-450Y-6MU1

Common

Model

DA3O4-450Y-6MU1

Motor type

asynchronous

Motor series

DA3O4

Shaft diameter, mm

110

Voltage, V

6000

Frequency of the current, Hz

Power kW

630

Vol./Min

1000

Climatic performance

Class of protection, IP

Efficiency, %

94,7

Power factor, cosφ

0,85

Weight, kg

3350

156

3600

Consumed nominal current, In (A)

Cooling capacity, kW

ICА01A61

Design scheme

prolonged S1

Dimension (height of rotation axis), mm

450

Installation design

IM1001

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,4

The ratio of starting current to the nominal, Istart/In

6,5

The ratio of starting torque to rated power, Mstart/Mn

1,3

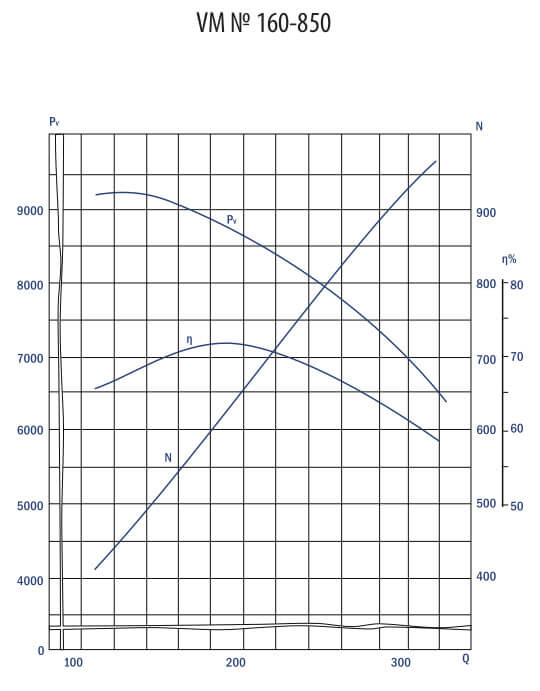

Aerodynamic characteristics VM #160-850 w/motor DAZO4-450Y-6MU1 630 kW 1000 rpm

Overall dimensions of the fan VM #160-850 w/motor DAZO4-450Y-6MU1 630 kW 1000 rpm
