VM #15 w/motor AIR 315 S4 160 kW 1500 rpm, execution 3

Name: VM #15 w/motor AIR 315 S4 160 kW 1500 rpm, execution 3
Brand: КВЗ
Price: 1033801 UAH
Availability: InStock

Mill centrifugal fan

Brand: КВЗ

All about product

Description

Specification

Aerodynamic Characteristics

Dimensions

Reviews 0

Questions0

Popular

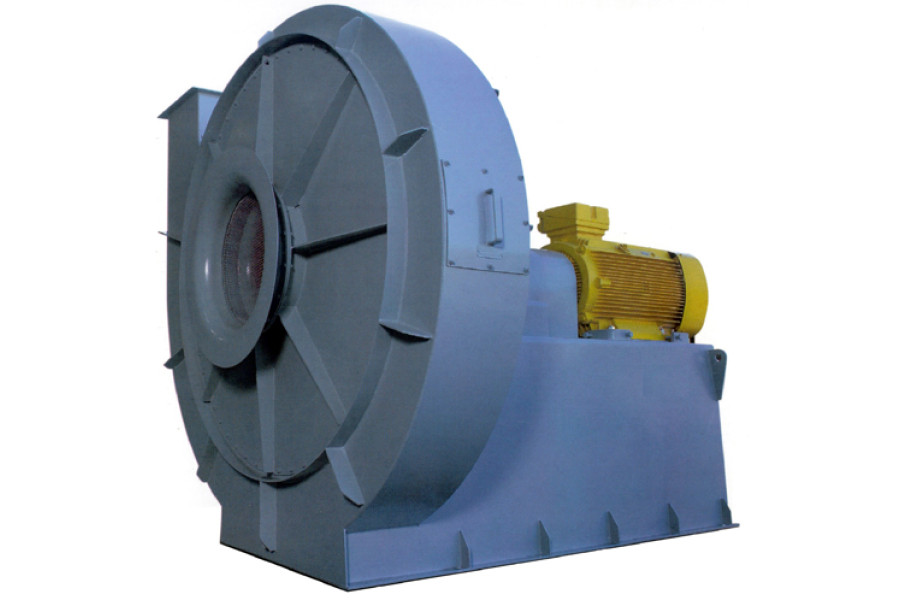

VM #15 w/motor AIR 315 S4 160 kW 1500 rpm, execution 3

In Stock

Product Code: ID16414

1 033 801₴

Found cheaper?

Centrifugal mill fan VM-15. Performance: 36350 m ³/hour; Total pressure: 7400 Pa.

Productivity, m³/h:36350

Ultimate pressure, Pa:7400

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

VM #15 w/motor AIR 315 S4 160 kW 1500 rpm, execution 3

1 033 801₴

Description

Purpose of Mill Fans VM-15

Centrifugal single-inlet mill fans VM-15 are designed for pneumatic transportation of coal dust in fuel preparation systems of solid fuel boilers using drum-ball mills. They can also be used in metal production lines at ferrous and non-ferrous metallurgy plants. These fans generate high pressure at relatively low capacity and are subject to intense abrasive wear due to coal dust.

General Information about Mill Fans VM-15

Direct drive
Spiral scroll housing
Single-side suction
Number of blades – 12
Forward-curved blades
Direction of rotation – right and left

Operating Conditions of Mill Fans VM-15

The fan design allows installation after separators and cyclones and permits air dust concentration up to 80 g of coal dust per 1 m³ of air. Operation is allowed at rotation speeds up to [option_values.41.value] rpm. The maximum temperature of the transported medium for mill fans is 200 °C.

Casing Rotation Angles of Mill Fans VM-15

Right rotation (viewed from the motor side)
Casing rotation of mill fan VM-15

Left rotation (viewed from the motor side)
Casing rotation of mill fan VM-15

Specifications

Common

Model

VM-15

Motor type

6AMU, 5AM

Kind

Max. transported air temperature, °C

200

Pollution limits, mg/m3

Weight, kg

3210

Productivity, m³/h

36350

The ratio of impeller diameter to nominal, D/Dn

Ultimate pressure, Pa

7400

Electric motor AIR 315 S4

Common

Model

AIR 315 S4

Motor type

asynchronous

Kind

general purpose industrial motor

Motor series

AIR

Shaft diameter, mm

Voltage, V

380/660

Frequency of the current, Hz

Power kW

160.0

Vol./Min

1500

n, vol./Min

1480

Climatic performance

Class of protection, IP

Efficiency, %

94,8

Power factor, cosφ

0,89

Weight, kg

1053

Consumed nominal current, In (A)

297

Dimension (height of rotation axis), mm

315

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,4

The ratio of starting current to the nominal, Istart/In

6,8

The ratio of starting torque to rated power, Mstart/Mn

2,3

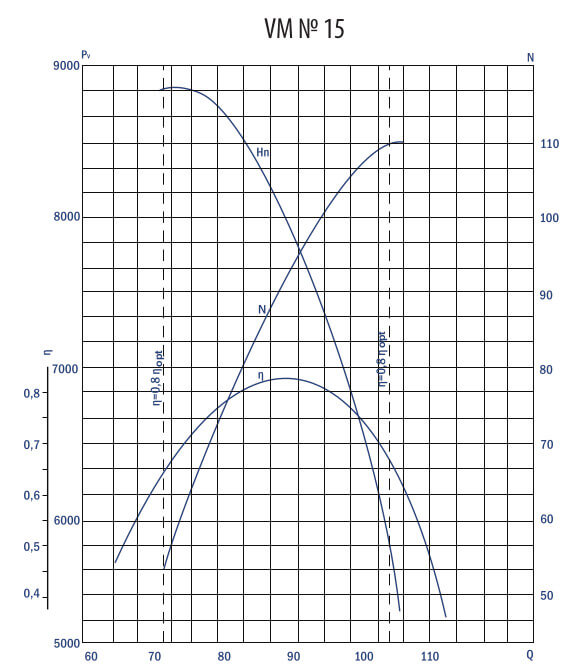

Aerodynamic characteristics VM #15 w/motor AIR 315 S4 160 kW 1500 rpm

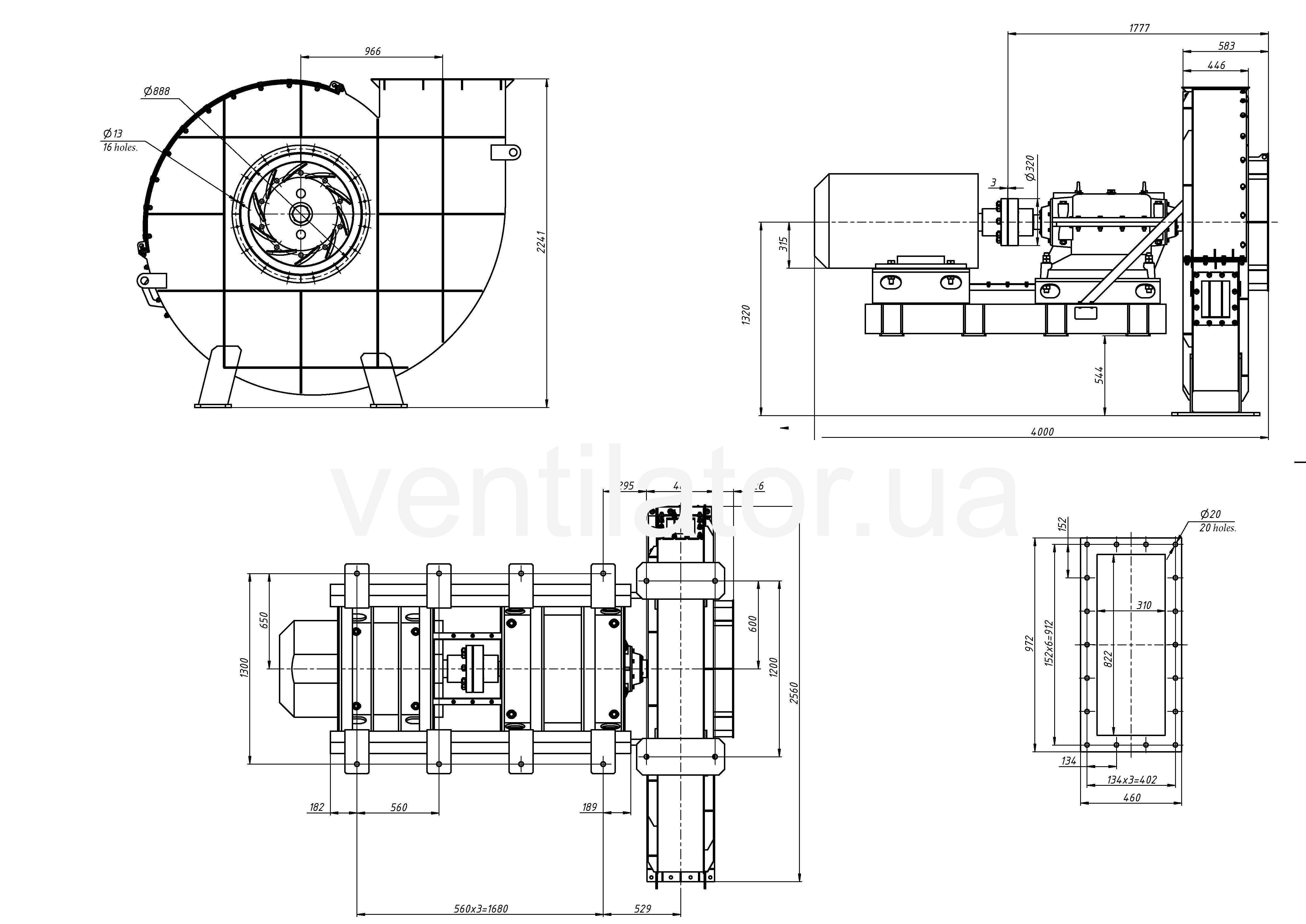

Overall dimensions of the fan VM #15 w/motor AIR 315 S4 160 kW 1500 rpm

Reviews

There are no reviews for this product.

There are no reviews for this product, be the first to leave your review.

Answers & questions

Add your question and we will answer as soon as possible.

No questions about this product, be the first and ask your question.
