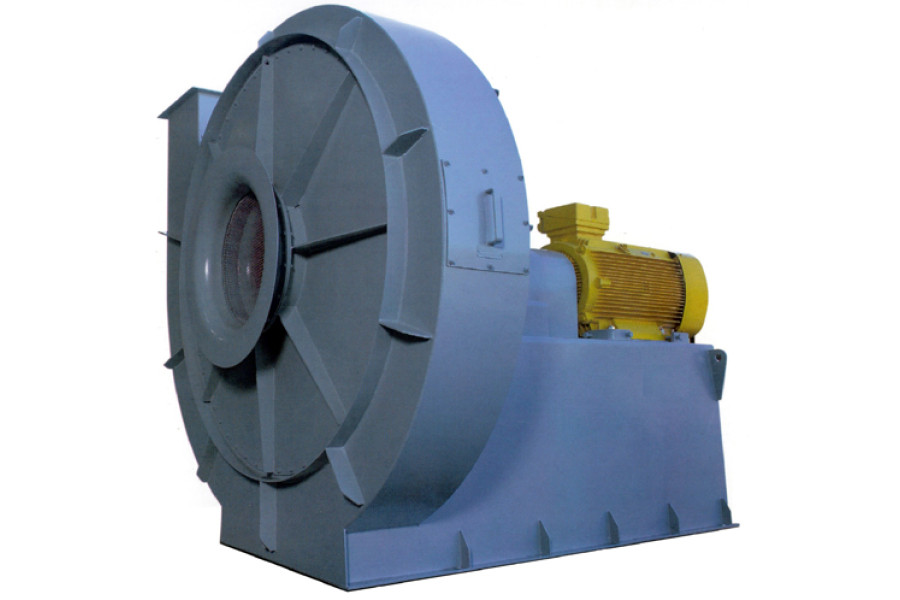

VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3

Mill centrifugal fan

Brand: КВЗ
0
All about product
Description
Specification
Aerodynamic Characteristics
Reviews 0
Questions0
Popular
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
In Stock
Product Code: ID16460
1 260 300₴
Found cheaper?

Centrifugal mill fan VM #100-1200. Performance: 96800 m 3/hour; Total pressure: 11693 Pa.

Produc­tivity, m³/h:96800
Ultimate pressure, Pa:11693
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm, execution 3
1 260 300₴
Description

Purpose of Mill Fans VM #100-1200

Centrifugal single-inlet mill fans VM #100-1200 are designed for pneumatic transportation of coal dust in fuel preparation systems of solid fuel boilers using drum-ball mills. They can also be used in metal production lines at ferrous and non-ferrous metallurgy plants. These fans generate high pressure at relatively low capacity and are subject to intense abrasive wear due to coal dust.

General Information about Mill Fans VM #100-1200

  • Direct drive
  • Spiral scroll housing
  • Single-side suction
  • Number of blades – 12
  • Forward-curved blades
  • Direction of rotation – right and left

Operating Conditions of Mill Fans VM #100-1200

The fan design allows installation after separators and cyclones and permits air dust concentration up to 80 g of coal dust per 1 m3 of air. Operation is allowed at rotation speeds up to [option_values.41.value] rpm. The maximum temperature of the transported medium for mill fans is 200 °C.

Casing Rotation Angles of Mill Fans VM #100-1200

Right rotation (viewed from the motor side)
Casing rotation of mill fan VM #100-1200

Left rotation (viewed from the motor side)

Specifications
Common
Model
VM #100-1200
Max. transported air temperature, °C
200
Pollution limits, mg/m3
80
Weight, kg
4098
Produc­tivity, m³/h
96800
Ultimate pressure, Pa
11693
Electric motor DAZO4-450X-4MU1
Common
Model
DA3O4-450X-4MU1
Motor type
asynchronous
Motor series
DA3O4
Shaft diameter, mm
110
Voltage, V
6000
Frequency of the current, Hz
50
Power kW
630
Vol./Min
1500
Climatic performance
U1
Class of protection, IP
54
Efficiency, %
94,7
Power factor, cosφ
0,87
Weight, kg
2900
88
1200
Consumed nominal current, In (A)
74
Cooling capacity, kW
ICА01A61
Design scheme
prolonged S1
Dimension (height of rotation axis), mm
450
Installation design
IM1001
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,5
The ratio of starting current to the nominal, Istart/In
7,0
The ratio of starting torque to rated power, Mstart/Mn
1,2

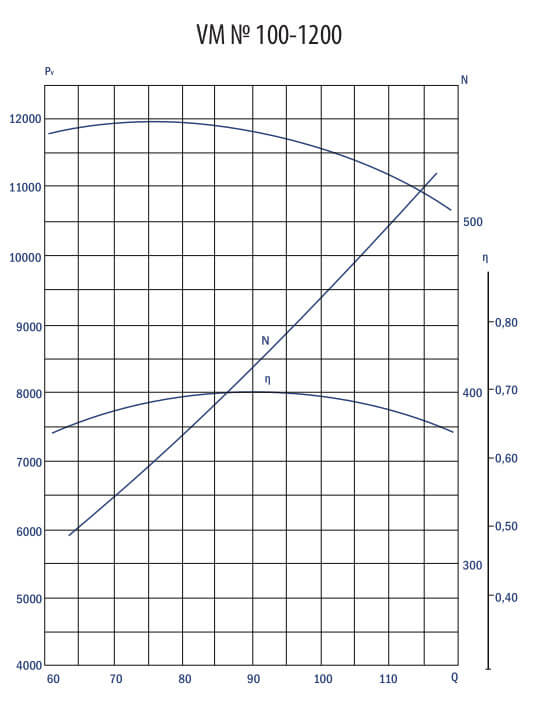

Aerodynamic characteristics VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm

Aerodynamic characteristics VM #100-1200 w/motor DAZO4-450X-4MU1 630 kW 1500 rpm
