VKR #6.3 w/ motor AIR 100 L6 2.2 kW 1000 rpm

Fan roof groove

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VKR #6.3 w/ motor AIR 100 L6 2.2 kW 1000 rpm
VKR #6.3 w/ motor AIR 100 L6 2.2 kW 1000 rpm
VKR #6.3 w/ motor AIR 100 L6 2.2 kW 1000 rpm
VKR #6.3 w/ motor AIR 100 L6 2.2 kW 1000 rpm
Out of stock
Product Code: ID11152
29 838₴

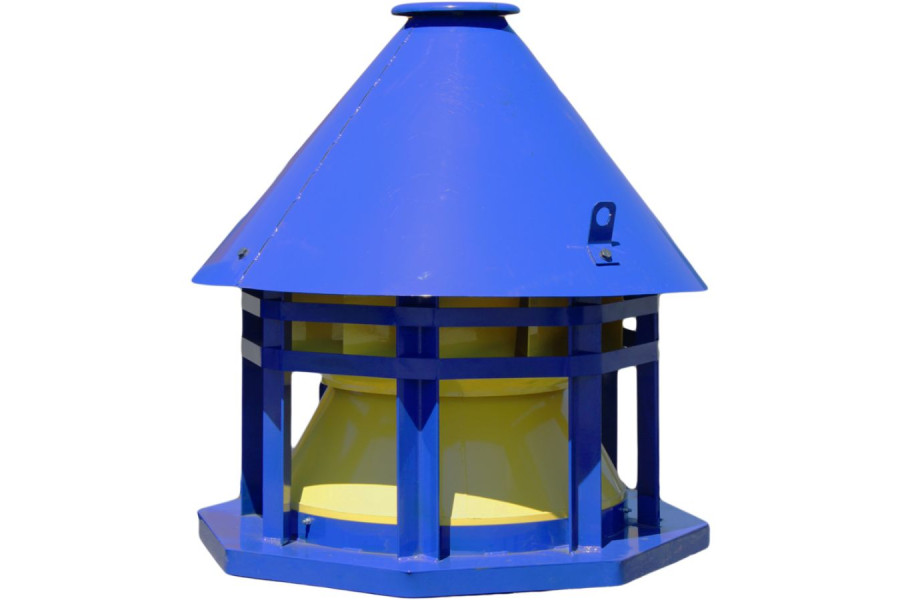

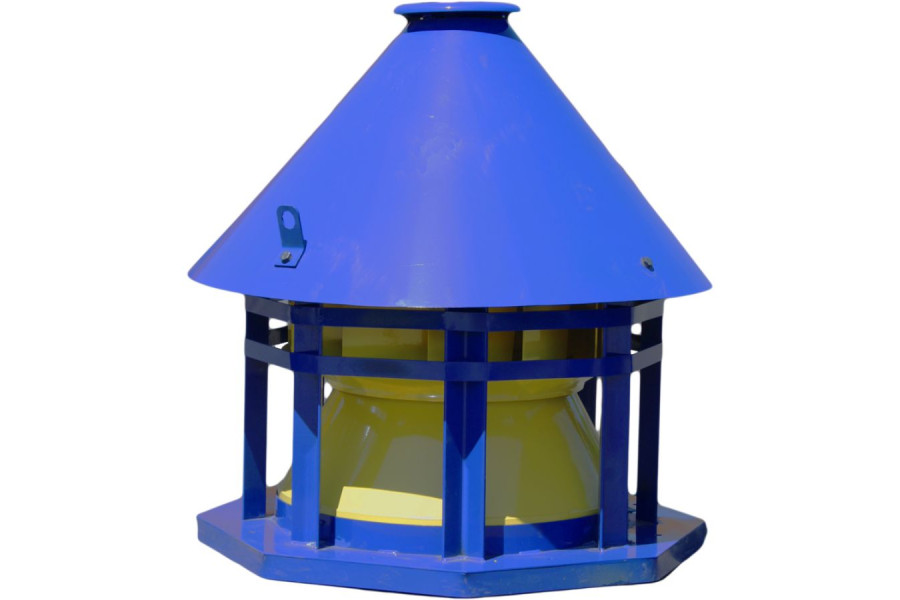

Roof radial fan VKR #6,3 with electric motor Electric motor AIR 100 L6 2.2 Power kW 1000 Vol./Min, made of carbon steel.

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VKR #6.3 w/ motor AIR 100 L6 2.2 kW 1000 rpm
29 838₴
Specifications
Common
Model
VKR #6,3
Electric motor AIR 100 L6
Common
Model
AIR100L6
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
28
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
2.2
Vol./Min
1000
n, vol./Min
930
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
77,1
Power factor, cosφ
0,76
Weight, kg
38
Consumed nominal current, In (A)
5,9
Dimension (height of rotation axis), mm
100
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,1
The ratio of starting current to the nominal, Istart/In
6,3
The ratio of starting torque to rated power, Mstart/Mn
2
