VKR #5 w/ motor AIR 80 B6 1.1 kW 1000 rpm

Fan roof groove

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VKR #5 w/ motor AIR 80 B6 1.1 kW 1000 rpm
VKR #5 w/ motor AIR 80 B6 1.1 kW 1000 rpm
VKR #5 w/ motor AIR 80 B6 1.1 kW 1000 rpm
VKR #5 w/ motor AIR 80 B6 1.1 kW 1000 rpm
Out of stock
Product Code: ID11150
16 453₴

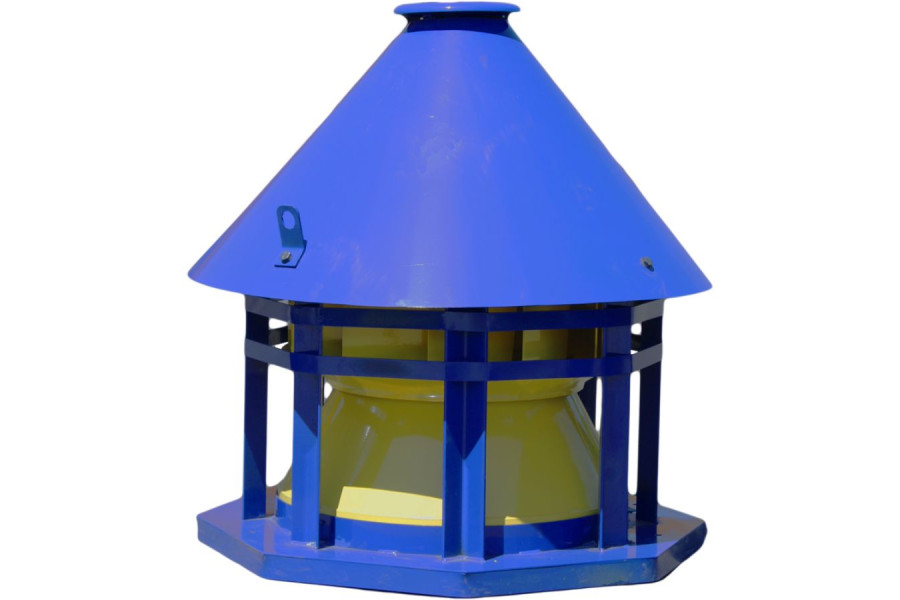

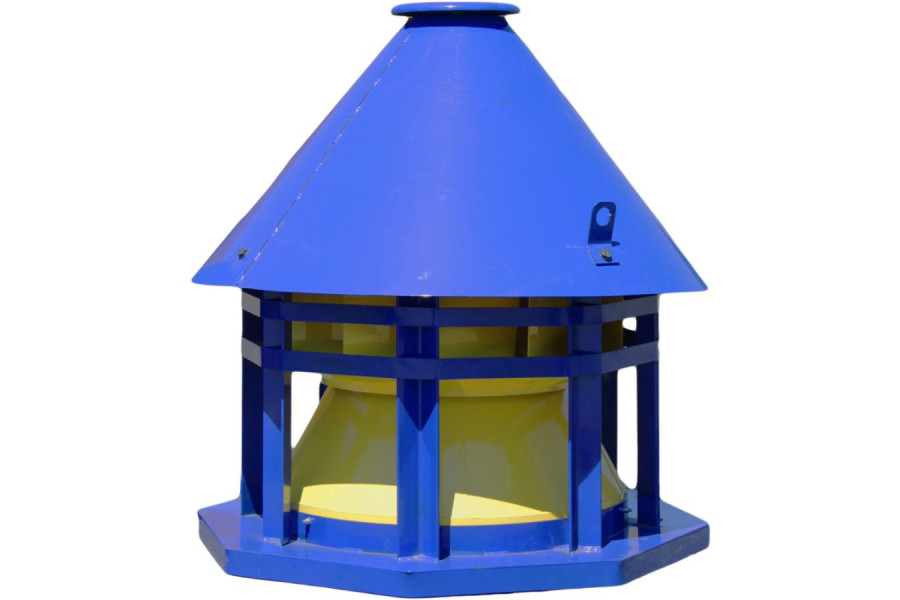

Roof radial fan VKR #5 with electric motor Electric motor AIR 80 B6 1.1 Power kW 1000 Vol./Min, made of carbon steel.

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VKR #5 w/ motor AIR 80 B6 1.1 kW 1000 rpm
16 453₴
Specifications
Common
Model
VKR #5
Electric motor AIR 80 B6
Common
Model
AIR 80 B6
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
22
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
1.1
Vol./Min
1000
n, vol./Min
910
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
72,1
Power factor, cosφ
0,74
Weight, kg
20
Consumed nominal current, In (A)
3,2
Dimension (height of rotation axis), mm
80
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,1
The ratio of starting current to the nominal, Istart/In
5,3
The ratio of starting torque to rated power, Mstart/Mn
2
