Centrifugal Hot Blast Fan VGDN #17 (N – Forced Draft)

Nominal Capacity: 74060 m³/h
Nominal Pressure: 2130 Pa

Maximum Air Temperature: must not exceed 400 °C at the fan inlet.
An oil bath is integrated into the design to ensure efficient cooling and continuous lubrication of the bearings, which significantly extends their service life.

Productivity, м³/h:74060

Pressure, Pa:2130

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

VGDN #17 w/motor AIR 315 М6 132 kW 1000 rpm, execution 3

2 039 073₴

Description

Purpose of Hot Blast Fans VGDN #17

Single-inlet centrifugal hot blast fans VGDN #17 are used to supply air heated in air preheaters to the furnaces of stationary steam boilers (primary air fans). These fans are also allowed for use in various technological installations to transport clean air and non-aggressive, dust-free gases with temperatures up to 400 °C.

General Information about Hot Blast Fans VGDN #17

Single-sided suction

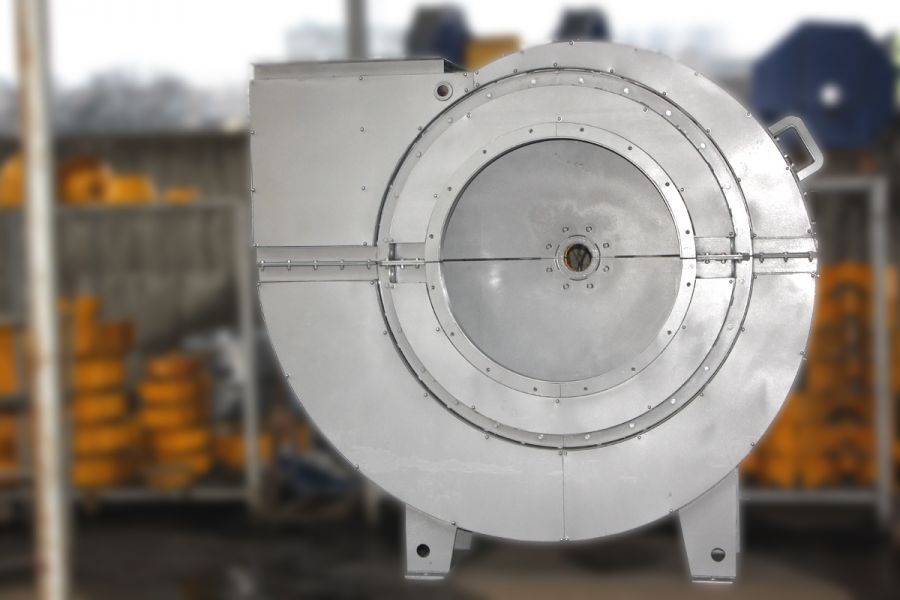

Rotatable spiral housing

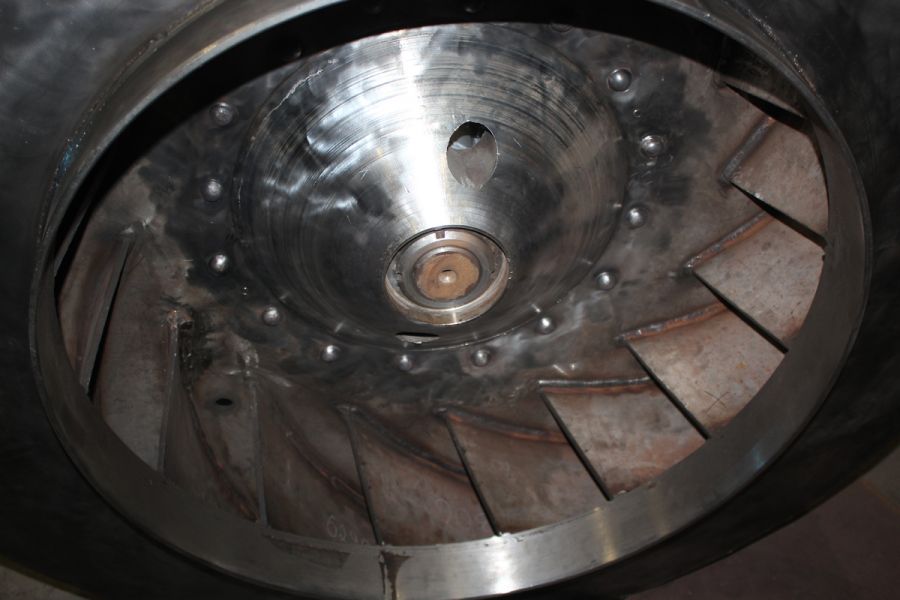

Forward-curved blades
Number of blades – 16
Direction of rotation – right and left

Design of Hot Blast Fans VGDN #17

The design of the hot blast fans is based on the VD-type forced draft fans.

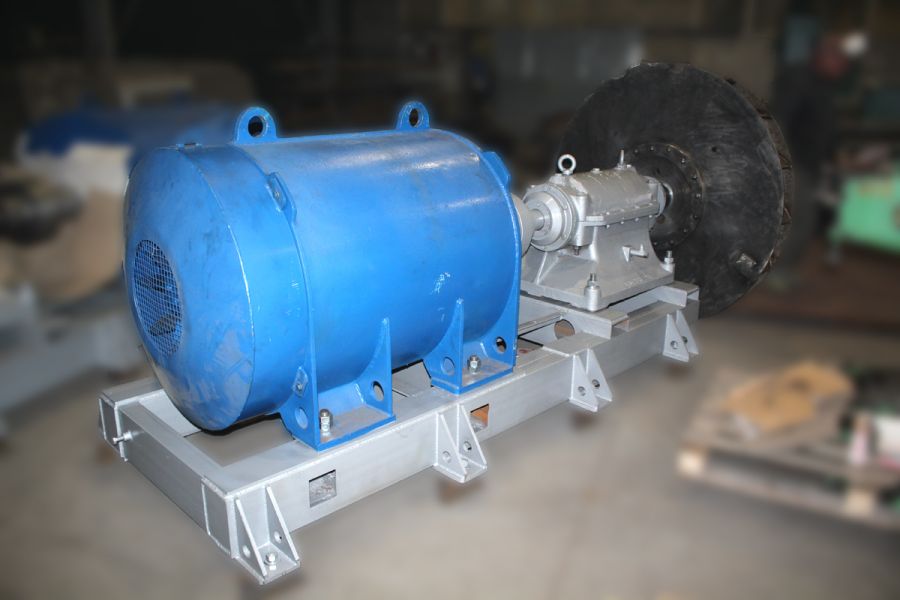

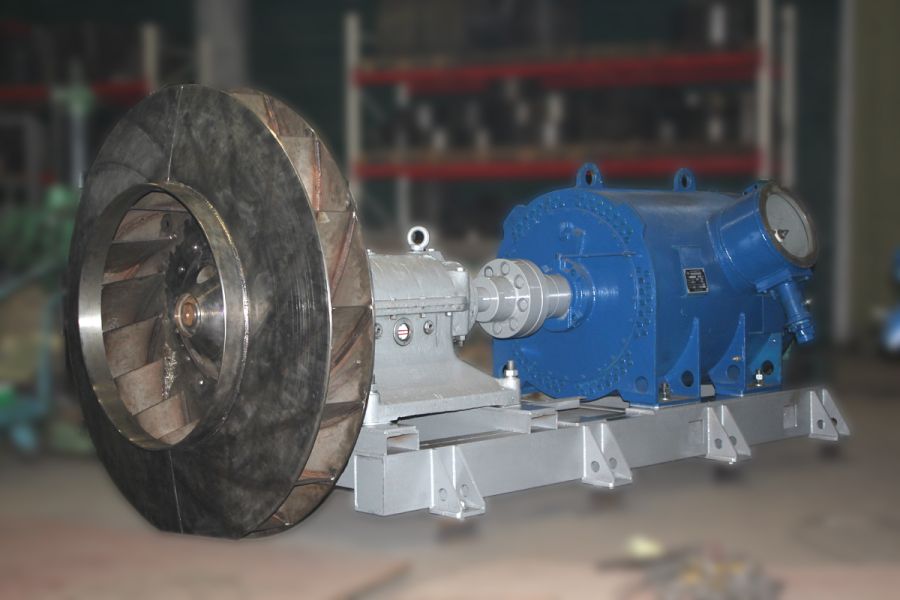

The fan consists of the following main components: impeller, spiral housing, running gear, axial guide vane, frames for the running gear, and a drive electric motor with a frame.

Considering the elevated temperature of the air-gas mixture, the impeller, inlet nozzle, and guide vane are made of low-carbon molybdenum steel.

The fan is equipped with a shaft cooling system for the running gear.

Operating Conditions of Hot Blast Fans VGDN #17

Hot blast fans VGDN #17 are designed for long-term operation both outdoors and indoors (under shelter from atmospheric precipitation) in temperate climates (climate version U, placement category 2). The allowable ambient temperature is not lower than -30 °C. The maximum air temperature at the fan inlet must not exceed 400 °C.

Casing Turn Angles for Fans VGDN #17

Specifications

Common

Model

VGDN #17

Motor type

AIR

Productivity, м³/h

74060

Pressure, Pa

2130

Climatic performance

Max. transported air temperature, °C

400

Weight, kg

3695

Maximum efficiency, ηmax (%)

Electric motor AIR 315 M6

Common

Model

AIR 315 M6

Motor type

asynchronous

Kind

general purpose industrial motor

Motor series

AIR

Shaft diameter, mm

Voltage, V

380/660

Frequency of the current, Hz

Power kW

132.0

Vol./Min

1000

n, vol./Min

985

Climatic performance

Class of protection, IP

Efficiency, %

94,4

Power factor, cosφ

0,87

Weight, kg

1103

Consumed nominal current, In (A)

244

Dimension (height of rotation axis), mm

315

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,2

The ratio of starting current to the nominal, Istart/In

6,1

The ratio of starting torque to rated power, Mstart/Mn

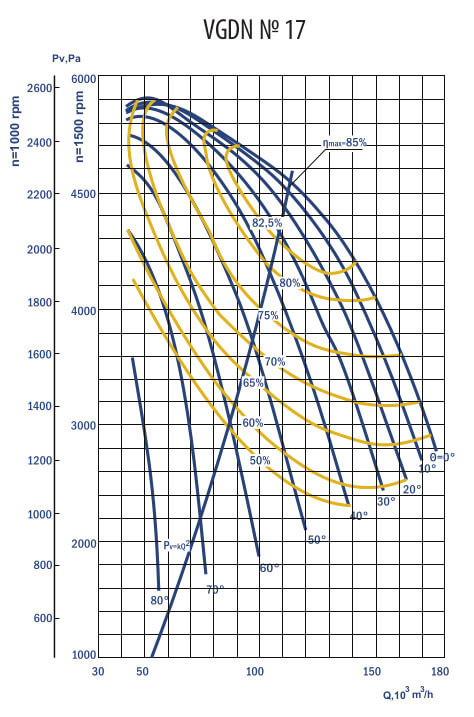

Aerodynamic characteristics of VGDN #17 w/motor AIR 315 М6 132 kW 1000 rpm
