VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3

Centrifugal blowing fan

Brand: КВЗ
0
All about product
Description
Specification
Aerodynamic Characteristics
Reviews 0
Questions0
Popular
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
On order
Product Code: ID16617
5 000 000₴

Centrifugal forced-draft fan ВДН №32б (VDN 95-40) with electric motor Electric motor AOD-1250/800-8/10U1 1250/800* Power kW 750/600 Vol./Min for general industrial use.

Operating point: capacity 37500/47500 m³/h at a pressure of 4300/6700 Pa.

Equipped with a backward-curved blade impeller — for increased efficiency, reduced noise, and energy savings.

The motor is mounted on an SKF/SNR bearing support with grease lubrication.

Productivity, м³/h:37500/47500
Pressure, Pa:4300/6700
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp, execution 3
5 000 000₴
Description

Purpose of forced-draft fans ВДН №32б (VDN 95-40)

Centrifugal single-inlet forced-draft fans ВДН №32б (VDN 95-40) are designed to supply air to the combustion chambers of boiler units in boiler shops of thermal power plants or large industrial boiler installations. These fans are used with balanced-draft boilers having a steam capacity from 35 to 960 t/h. Their use is also permitted in process units across various industries for moving clean air, as well as smoke exhausters for gas-and-oil-fired boilers with balanced draft.

General information about forced-draft fans ВДН №32б (VDN 95-40)

  • Medium and high pressure
  • Single-inlet
  • Rotation direction – right-hand and left-hand
  • Forward-curved blades
  • Number of blades – 16

Operating conditions of forced-draft fans ВДН №32б (VDN 95-40)

VDN centrifugal forced-draft fans are intended for moving air and non-explosive, non-aggressive gas-air mixtures with temperatures from -30 °C to +200 °C and dust content up to 0.1 g/m3, free from sticky, fibrous, and abrasive particles. Designed for continuous operation indoors and outdoors (under a canopy) in temperate climate conditions.

Design of forced-draft fans ВДН №32б (VDN 95-40)

The main components of VDN fans are: impeller, housing (scroll casing), inlet nozzle, electric motor, drive, and frame (support). The welded housing has a horizontal split and an inspection hatch. The casing is reinforced with stiffening ribs made from channel sections.

Manufacturing options of forced-draft fans ВДН №32б (VDN 95-40)

Forced-draft units ВДН №32б (VDN 95-40) are manufactured with both right-hand and left-hand rotation. With right-hand rotation, the impeller turns clockwise when viewed from the motor side; with left-hand rotation — counterclockwise. The scroll casing ВДН №32б (VDN 95-40) is made with a discharge angle from 0° to 270° in 15° increments. Casing ribs that interfere with installation are trimmed.

Fan housing rotation angles ВДН №32б (VDN 95-40)


Specifications
Common
Model
ВДН №32б
Motor type
AOD, DAZO
Productivity, м³/h
37500/47500
Pressure, Pa
4300/6700
Max. transported air temperature, °C
80
Pollution limits, mg/m3
100
Maximum efficiency, ηmax (%)
54
Electric motor AOD-1250/800-8/10U1
Common
Model
AOD-1250/800-8/10U1
Motor type
asynchronous
Motor series
AOD
Shaft diameter, mm
200
Voltage, V
6000
Power kW
1250/800*
Vol./Min
750/600
Climatic performance
U1
Class of protection, IP
44/54
Efficiency, %
93,5/92,9
Power factor, cosφ
0,88/0,82
Weight, kg
14350/14500
S1
17,6
Acceptable levels of dust inlet, mg/m3
10
Consumed nominal current, In (A)
145,5/100
Cooling capacity, kW
1SAO1A61
Design scheme
М6
Installation design
IM1101
Rated slip, %
0,83/0,82
Temperature of the conveyed medium, °C
+40/-45
The ratio of max. torque to rated power, Mmax/Mn
2,4/2,5
The ratio of starting current to the nominal, Istart/In
6,5
The ratio of starting torque to rated power, Mstart/Mn
1/1,1

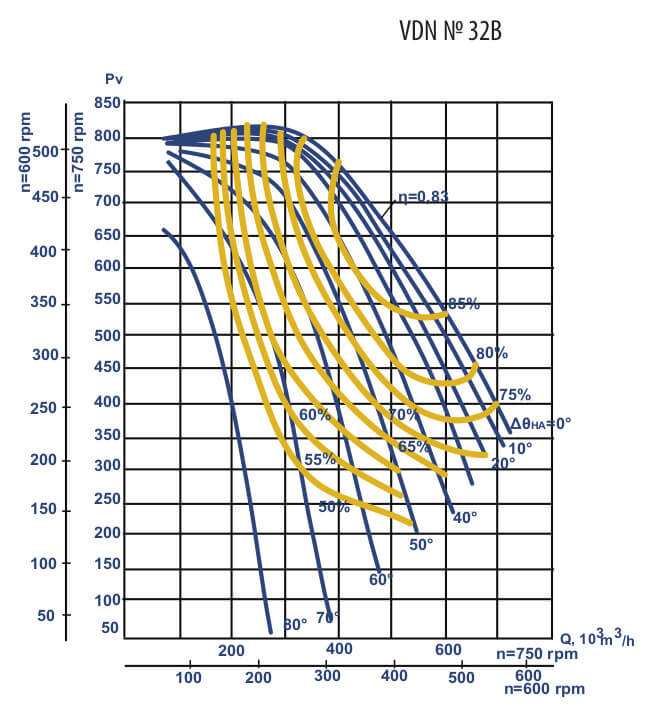

Aerodynamic characteristics of VDN #32b w/motor AOD-1250/800-8/10U1 1250/800 kW 750/600 rmp
