VDN #20 w/motor DAZO4-400Y-6MU1 400 kW 1000 rpm, execution 3

Centrifugal blowing fan

Brand: КВЗ
0
All about product
Description
Specification
Reviews 0
Questions0
On order
Product Code: ID37952
1 389 113₴

Centrifugal forced-draft fan [option_values.65.value] (VDN 95-40) with electric motor [el.name] [el.option_values.52.value] [el.option_values.52.name] [el.option_values.41.value] [el.option_values.41.name_short] for general industrial use.

Operating point: capacity [option_values.88.value] m³/h at a pressure of [option_values.89.value] Pa.

Equipped with a backward-curved blade impeller — for increased efficiency, reduced noise, and energy savings.

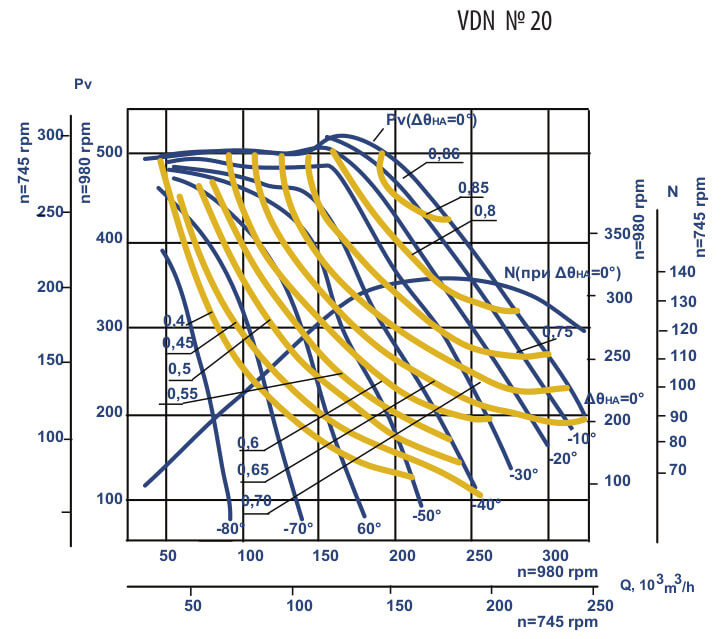

Productivity, м³/h:
Pressure, Pa:
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VDN #20 w/motor DAZO4-400Y-6MU1 400 kW 1000 rpm, execution 3
1 389 113₴
Description

Purpose of forced-draft fans [option_values.65.value] (VDN 95-40)

Centrifugal single-inlet forced-draft fans [option_values.65.value] (VDN 95-40) are designed to supply air to the combustion chambers of boiler units in boiler shops of thermal power plants or large industrial boiler installations. These fans are used with balanced-draft boilers having a steam capacity from 35 to 960 t/h. Their use is also permitted in process units across various industries for moving clean air, as well as smoke exhausters for gas-and-oil-fired boilers with balanced draft.

General information about forced-draft fans [option_values.65.value] (VDN 95-40)

  • Medium and high pressure
  • Single-inlet
  • Rotation direction – right-hand and left-hand
  • Forward-curved blades
  • Number of blades – 16

Operating conditions of forced-draft fans [option_values.65.value] (VDN 95-40)

VDN centrifugal forced-draft fans are intended for moving air and non-explosive, non-aggressive gas-air mixtures with temperatures from -30 °C to +200 °C and dust content up to 0.1 g/m3, free from sticky, fibrous, and abrasive particles. Designed for continuous operation indoors and outdoors (under a canopy) in temperate climate conditions.

Design of forced-draft fans [option_values.65.value] (VDN 95-40)

The main components of VDN fans are: impeller, housing (scroll casing), inlet nozzle, electric motor, drive, and frame (support). The welded housing has a horizontal split and an inspection hatch. The casing is reinforced with stiffening ribs made from channel sections.

Manufacturing options of forced-draft fans [option_values.65.value] (VDN 95-40)

Forced-draft units [option_values.65.value] (VDN 95-40) are manufactured with both right-hand and left-hand rotation. With right-hand rotation, the impeller turns clockwise when viewed from the motor side; with left-hand rotation — counterclockwise. The scroll casing [option_values.65.value] (VDN 95-40) is made with a discharge angle from 0° to 270° in 15° increments. Casing ribs that interfere with installation are trimmed.

Fan housing rotation angles [option_values.65.value] (VDN 95-40)


Specifications
Common
Model
Motor type
Productivity, м³/h
Pressure, Pa
Max. transported air temperature, °C
Pollution limits, mg/m3
Maximum efficiency, ηmax (%)
Electric motor DAZO4-400Y-6MU1
Common
Model
DA3O4-400Y-6MU1
Motor type
asynchronous
Motor series
DA3O4
Shaft diameter, mm
100
Voltage, V
6000
Frequency of the current, Hz
50
Power kW
400
Vol./Min
1000
Climatic performance
U1
Class of protection, IP
54
Efficiency, %
94,2
Power factor, cosφ
0,85
Weight, kg
2650
88
2400
Consumed nominal current, In (A)
48
Cooling capacity, kW
ICА01A61
Design scheme
prolonged S1
Dimension (height of rotation axis), mm
400
Installation design
IM1001
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,5
The ratio of starting current to the nominal, Istart/In
6,5
The ratio of starting torque to rated power, Mstart/Mn
1,3
