VD #10 w/motor AIR 200 L6 30 kW 1000 rpm, execution 3

Name: VD #10 w/motor AIR 200 L6 30 kW 1000 rpm, execution 3
Brand: КВЗ
Price: 323053 UAH
Availability: InStock

Centrifugal blowing fan

Brand: КВЗ

All about product

Description

Specification

Aerodynamic Characteristics

Reviews 0

Questions0

New

VD #10 w/motor AIR 200 L6 30 kW 1000 rpm, execution 3

In Stock

Product Code: ID37940

323 053₴

Found cheaper?

Centrifugal draft fan VD #10

Designed for moving air and air-gas mixtures with temperatures ranging from -30 °C to +80 °C, with a dust concentration not exceeding 0.1 g/m³, and free of sticky, fibrous, or abrasive particles.

Airflow capacity: 20600 m³/h
Total pressure: 2540 Pa

Forward-curved blades

Productivity, м³/h:20600

Pressure, Pa:2540

Vol./Min:970

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

VD #10 w/motor AIR 200 L6 30 kW 1000 rpm, execution 3

323 053₴

Description

Blower fan VD #10 series with electric motor [el.name] [el.option_values.52.value] [el.option_values.52.name] [el.option_values.41.value] [el.option_values.41.name_short], made of carbon steel

Single-inlet centrifugal blower fans VD #10 are designed to supply air to the combustion chambers of boiler units in thermal power plants or large industrial boiler systems. These fans are used with balanced-draft steam boilers producing 1–25 tons of steam per hour and with gas or oil-fired hot water boilers with a heat output of 0.5–16 Gcal/h. They may also be used in industrial systems for supplying clean air or as draft fans in balanced-draft boiler units.

General information about blower fans VD #10

Medium- and high-pressure applications
Single-side air intake
Forward-curved blades
Number of blades — 32
Rotation direction — right-hand or left-hand
Casing rotation — 0° to 360° (15° increments)
Design No. 1 — impeller mounted on motor shaft
Design No. 3 — drive via intermediate shaft

Operating conditions of blower fans VD #10

Designed for handling air and non-aggressive gas-air mixtures with temperatures ranging from -30 °C to +200 °C and dust content up to 0.1 g/m³, free from sticky, fibrous, or abrasive inclusions. Suitable for continuous operation indoors or outdoors under a canopy in moderate climates.

Construction of blower fans VD #10

Main components: impeller, housing (scroll), inlet nozzle, electric motor, drive, and frame. The motor and impeller are mounted on a U-shaped frame bolted to the foundation. The housing is a welded construction made of a cylindrical shell and side walls. The cylindrical inlet nozzle is bolted to the housing.

By agreement with the customer, the fan can be additionally equipped with an inlet box and guide vanes. These redirect airflow by 90°, stabilize it, and improve the fan’s efficiency. The guide vane system can be controlled manually or with an actuator.

Available versions of blower fans VD #10

Fans are manufactured in both right-hand and left-hand rotation. In right-hand rotation, the impeller rotates clockwise (viewed from the motor side); in left-hand — counterclockwise. The scroll housing is produced with a rotation angle from 0° to 270° in 15° increments; interfering stiffeners are removed.

Casing rotation angles of blower fans VD #10

Specifications

Common

Model

VD #10

Motor type

AIR

Productivity, м³/h

20600

Pressure, Pa

2540

Vol./Min

970

Max. transported air temperature, °C

Pollution limits, mg/m3

100

Weight, kg

1210

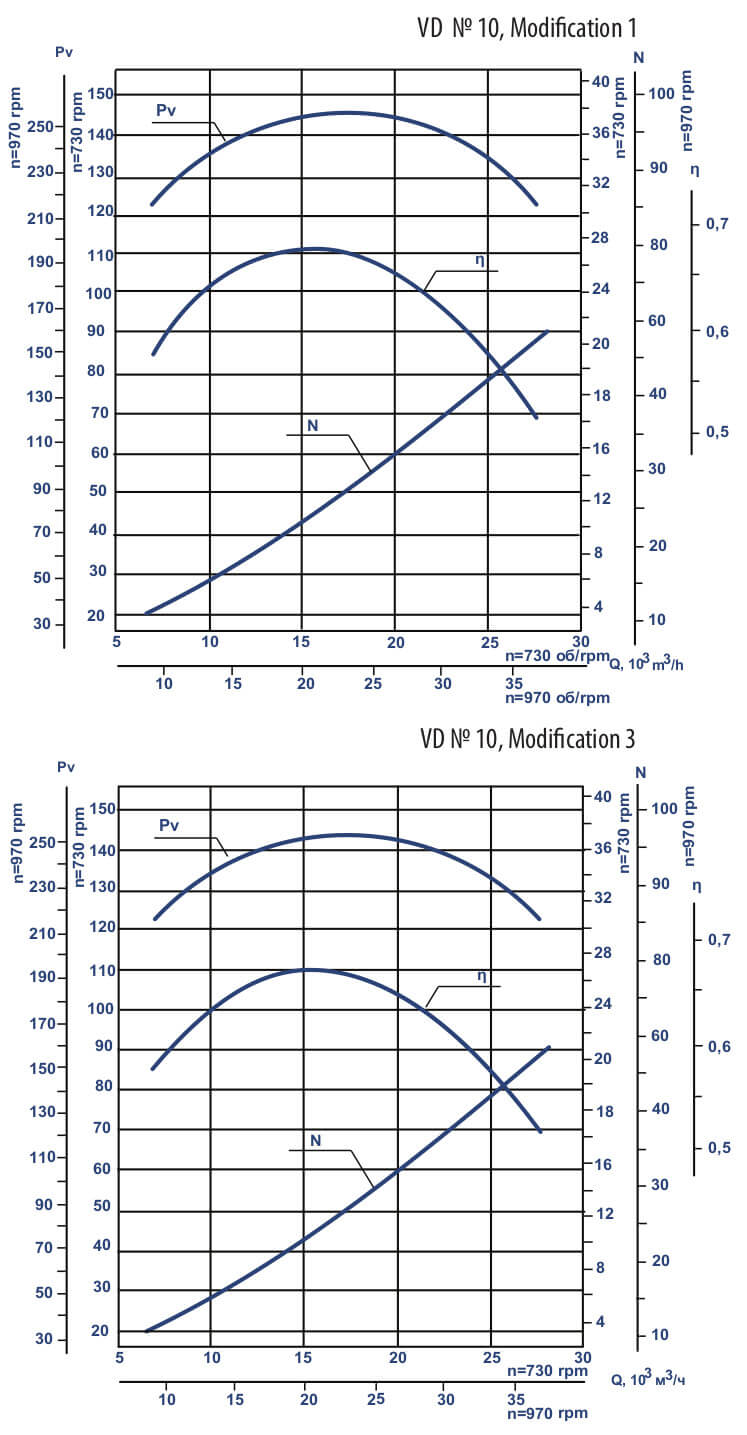

Аэродинамические характеристики VD #10 w/motor AIR 200 L6 30 kW 1000 rpm
