VD #20 w/motor DAZO4-13-55-8U1 400 kW 750 rpm, execution 3

On order

Product Code: ID37945

1 700 127₴

Centrifugal draft fan VD #20

Designed for moving air and air-gas mixtures with temperatures ranging from -30 °C to +80 °C, with a dust concentration not exceeding 0.1 g/m³, and free of sticky, fibrous, or abrasive particles.

Airflow capacity: 106000 m³/h
Total pressure: 4990 Pa

Forward-curved blades

Productivity, м³/h:106000

Pressure, Pa:4990

Vol./Min:730

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

VD #20 w/motor DAZO4-13-55-8U1 400 kW 750 rpm, execution 3

1 700 127₴

Description

Blower fan VD #20 series with electric motor [el.name] [el.option_values.52.value] [el.option_values.52.name] [el.option_values.41.value] [el.option_values.41.name_short], made of carbon steel

Single-inlet centrifugal blower fans VD #20 are designed to supply air to the combustion chambers of boiler units in thermal power plants or large industrial boiler systems. These fans are used with balanced-draft steam boilers producing 1–25 tons of steam per hour and with gas or oil-fired hot water boilers with a heat output of 0.5–16 Gcal/h. They may also be used in industrial systems for supplying clean air or as draft fans in balanced-draft boiler units.

General information about blower fans VD #20

Medium- and high-pressure applications
Single-side air intake
Forward-curved blades
Number of blades — 32
Rotation direction — right-hand or left-hand
Casing rotation — 0° to 360° (15° increments)
Design No. 1 — impeller mounted on motor shaft
Design No. 3 — drive via intermediate shaft

Operating conditions of blower fans VD #20

Designed for handling air and non-aggressive gas-air mixtures with temperatures ranging from -30 °C to +200 °C and dust content up to 0.1 g/m³, free from sticky, fibrous, or abrasive inclusions. Suitable for continuous operation indoors or outdoors under a canopy in moderate climates.

Construction of blower fans VD #20

Main components: impeller, housing (scroll), inlet nozzle, electric motor, drive, and frame. The motor and impeller are mounted on a U-shaped frame bolted to the foundation. The housing is a welded construction made of a cylindrical shell and side walls. The cylindrical inlet nozzle is bolted to the housing.

By agreement with the customer, the fan can be additionally equipped with an inlet box and guide vanes. These redirect airflow by 90°, stabilize it, and improve the fan’s efficiency. The guide vane system can be controlled manually or with an actuator.

Available versions of blower fans VD #20

Fans are manufactured in both right-hand and left-hand rotation. In right-hand rotation, the impeller rotates clockwise (viewed from the motor side); in left-hand — counterclockwise. The scroll housing is produced with a rotation angle from 0° to 270° in 15° increments; interfering stiffeners are removed.

Casing rotation angles of blower fans VD #20

Specifications

Common

Model

VD #20

Motor type

DAZO

Productivity, м³/h

106000

Pressure, Pa

4990

Vol./Min

730

Max. transported air temperature, °C

Pollution limits, mg/m3

100

Weight, kg

7906

Electric motor DAZO4-13-55-8U1

Common

Model

DAZO4-13-55-8U1

Motor type

asynchronous

Motor series

DAZO4

Shaft diameter, mm

890

Voltage, V

6000

Frequency of the current, Hz

Power kW

400

Vol./Min

750

Climatic performance

Class of protection, IP

Efficiency, %

93,8

Power factor, cosφ

0,81

Weight, kg

3450

5200

Consumed nominal current, In (A)

50,5

Cooling capacity, kW

ICO1A61

Design scheme

prolonged S1

Dimension (height of rotation axis), mm

1180

Installation design

IM1001

Phase

3-phase

The ratio of max. torque to rated power, Mmax/Mn

2,3

The ratio of starting current to the nominal, Istart/In

6,0

The ratio of starting torque to rated power, Mstart/Mn

1,2

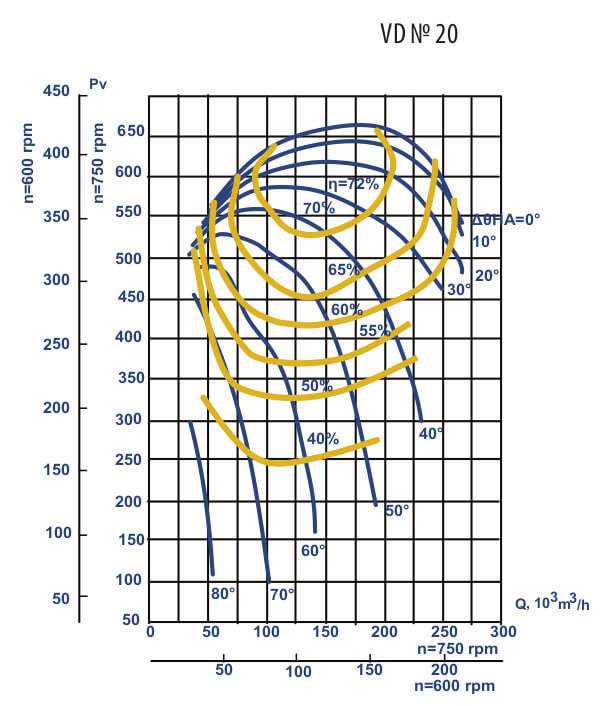

Aerodynamic characteristics of VD #20 w/motor DAZO4-13-55-8U1 400 kW 750 rpm
