VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1

The centrifugal fan of the dust

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1
VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1
VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1
VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1
VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1
VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1
VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1
VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1
VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1
VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1
Out of stock
Product Code: ID37753
141 125₴

Centrifugal dust fan series VCP 6-46 #10 with electric motor Electric motor AIR 200 L6 30.0 Power kW 1000 Vol./Min, made under the scheme of execution #1 an impeller on the motor shaft is made of carbon steel

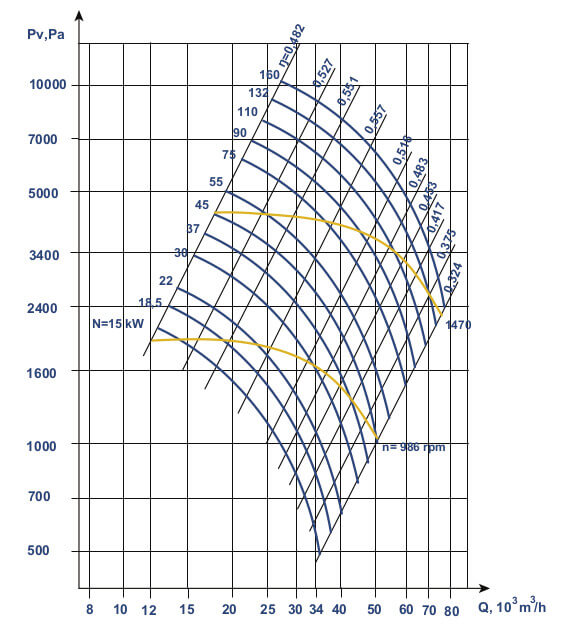

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VCP 6-46 #10 w/ motor AIR L6 30 200 kW 1000 rpm, execution 1
141 125₴
Specifications
Common
Model
VCP 6-46 #10
Electric motor AIR 200 L6
Common
Model
AIR 200 L6
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
60
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
30.0
Vol./Min
1000
n, vol./Min
975
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
89,8
Power factor, cosφ
0,84
Weight, kg
250
Consumed nominal current, In (A)
62
Dimension (height of rotation axis), mm
200
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,2
The ratio of starting current to the nominal, Istart/In
6,5
The ratio of starting torque to rated power, Mstart/Mn
2,1
