VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5

The centrifugal fan of the dust

Brand: КВЗ
0
All about product
Description
Specification
Aerodynamic Characteristics
Dimensions
Reviews 0
Questions0
Popular
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
In Stock
Product Code: ID9893
98 871₴
Found cheaper?

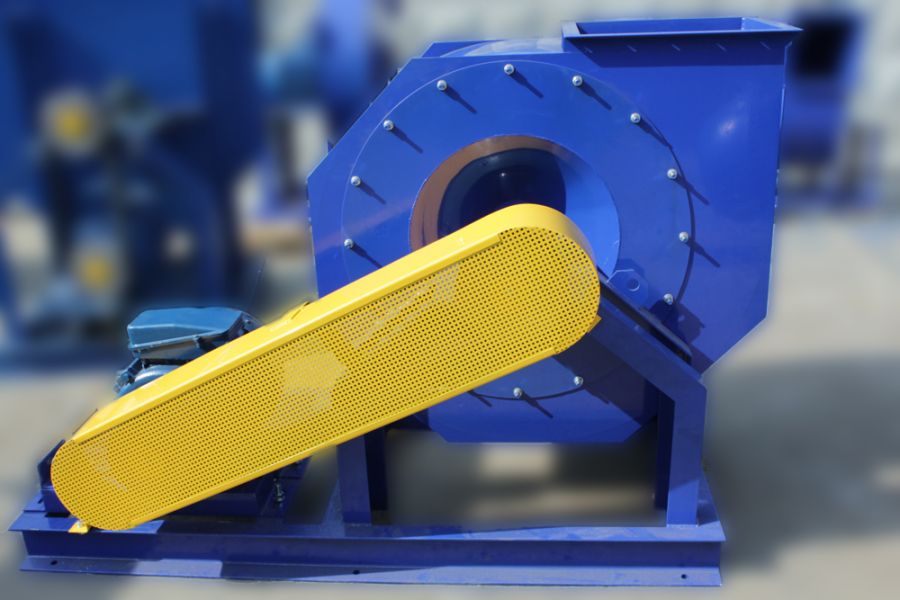

Fan of the VCP 6-45 #5 series, design No. 5, with belt drive and Electric motor AIR 160 S4 15.0 kW 1500 RPM.

Productivity, м³/h:10500
Pressure, Pa:2150
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm, execution 5
98 871₴
Description

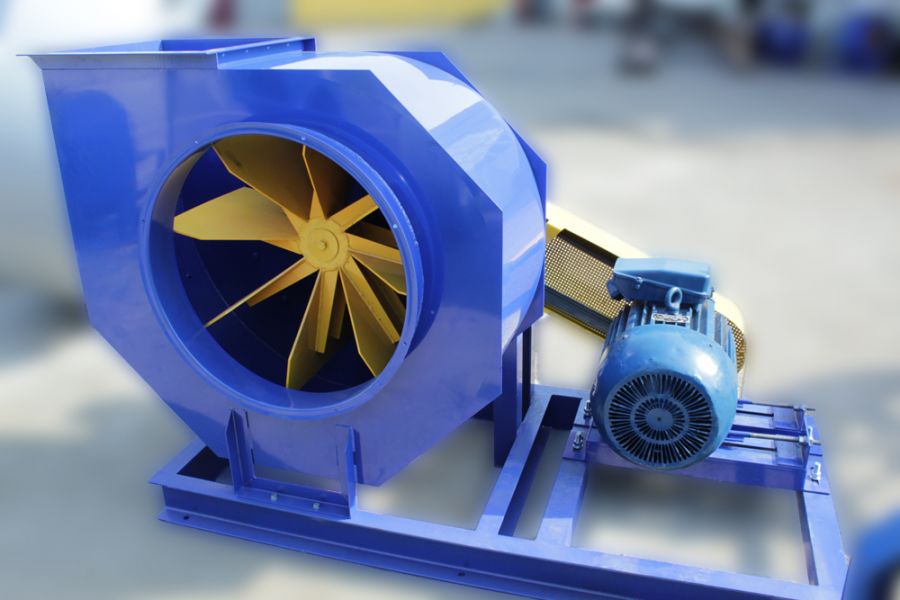

Centrifugal (radial) dust fan series VCP 6-45 #5  (VCP 109‑47)  with Electric motor AIR 160 S4 15.0 kW 1500 rpm, built to arrangement No. 5 with belt drive, made of carbon steel.

This fan is designed for conveying non‑abrasive, explosion‑safe dust–gas–air mixtures with air temperature not exceeding 80 °C, with aggressiveness toward standard‑quality carbon steel not exceeding that of air, and containing no sticky or fibrous materials. The concentration of solid particles in the conveyed medium is up to 1000000 mg/m3 (1 kg/m3). The dust fan VCP 6-45 #5 (VCP 109‑47) is intended for removing chips and metal dust from machines in sanitary‑technical and production applications under stationary conditions.

General information about dust fans VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm (VCP 109‑47):

  • single‑suction design;
  • spiral turning housing;
  • radial straight blades;
  • number of blades – 8 pcs.;
  • rotation direction – right and left;
  • arrangement No. 5 – with belt drive;
  • made of carbon steel;

Applications of dust fans VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm (VCP 109‑47):

  • in dust‑collection systems;
  • in pneumatic conveying systems;
  • for removing wood dust and chips from woodworking machines;
  • for removing metal dust and chips from metalworking machines;
  • for other sanitary‑technical and production purposes.

Variants of centrifugal fans VCP 6-45 #5:

  • carbon steel;
  • stainless steel;
  • mixed‑metal construction.

Construction of the dust fan VCP 6-45 #5 (VCP 109‑47), main components and operating principle:

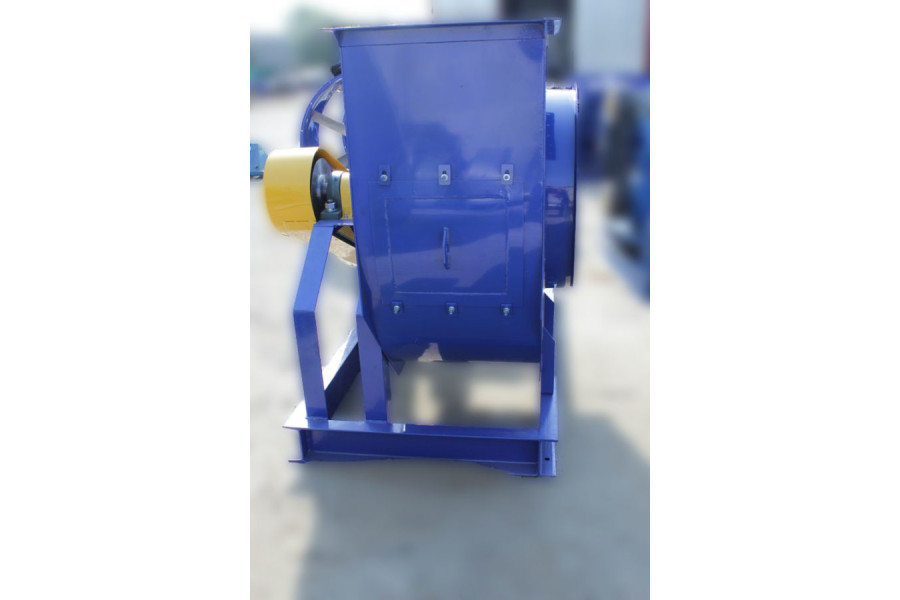

Housing (scroll) VCP 6-45 #5

The spiral housing is a non‑split structure. A cylindrical inlet flange is attached to the front wall. The outlet branch is welded to the housing. The clearance between inlet and impeller is adjustable.

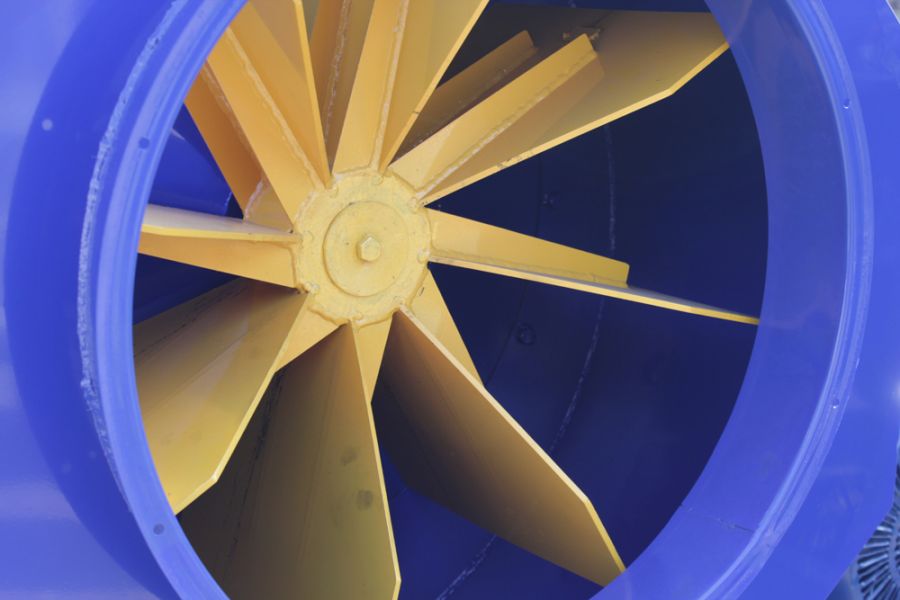

Impeller VCP 6-45 #5 (VCP 109‑47)

The impeller is welded and consists of eight radial straight blades, a hub, and two sprockets.

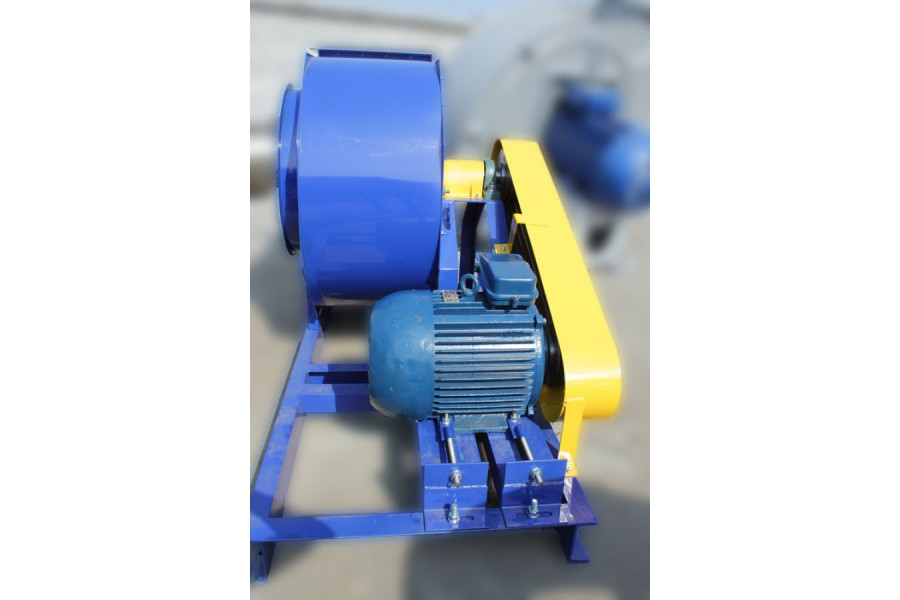

Electric motor AIR 160 S4 15.0 Power kW 1500 Vol./Min

Electric motor AIR 160 S4 motor is a general‑purpose, three‑phase, squirrel‑cage induction motor designed for operation on an AC network at 50 Hz and 220/380 V. The rated speed is 1500 rpm. Frame height (shaft center): 160 mm; shaft diameter: 48 mm; power: 15.0 kW; climatic version: UZ; IP rating: 54. Motors from 1.5 kW use a grey‑iron housing for enhanced reliability. On request, the Electric motor AIR 160 S4 motor can be supplied with a silumin‑alloy housing.

Fans VCP 6-45 #5 (VCP 109‑47) are available in both right‑ and left‑hand rotation. Rotation direction is viewed from the inlet: clockwise – right; counterclockwise – left. The fan operates by transferring rotational energy from the motor through the shaft to the impeller, causing the air mixture drawn between the blades to move outward by centrifugal force into the outlet section of the housing.

Housing positions for right‑hand (RH) and left‑hand (LH) rotation, view from the suction inlet:
Housing positions for right‑hand and left‑hand rotation

Specifications
Common
Model
VCP 6-45 #5
Productivity, м³/h
10500
Pressure, Pa
2150
Max. transported air temperature, °C
80
Pollution limits, mg/m3
1000000
Electric motor AIR 160 S4
Common
Model
AIR 160 S4
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
48
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
15.0
Vol./Min
1500
n, vol./Min
1455
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
88,7
Power factor, cosφ
0,85
Weight, kg
138
Consumed nominal current, In (A)
30,8
Dimension (height of rotation axis), mm
160
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
6,8
The ratio of starting torque to rated power, Mstart/Mn
2,2

Aerodynamic characteristics of VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm

Overall dimensions VCP 6-45 #5 w/motor AIR 160 S4 15 kW 1500 rpm
