VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1

The centrifugal fan of the dust

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1
VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1
VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1
VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1
VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1
VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1
VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1
VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1
VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1
VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1
Out of stock
Product Code: ID10491
56 336₴

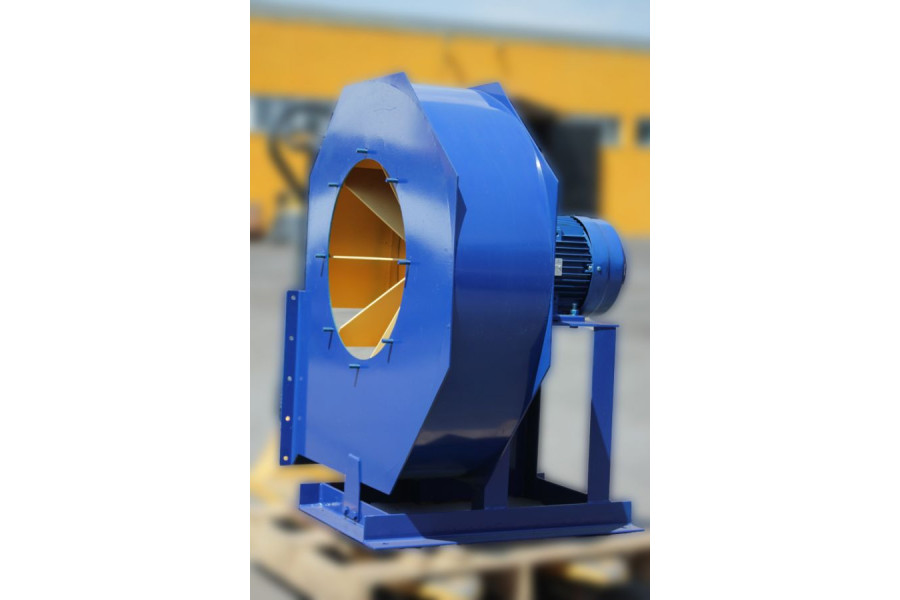

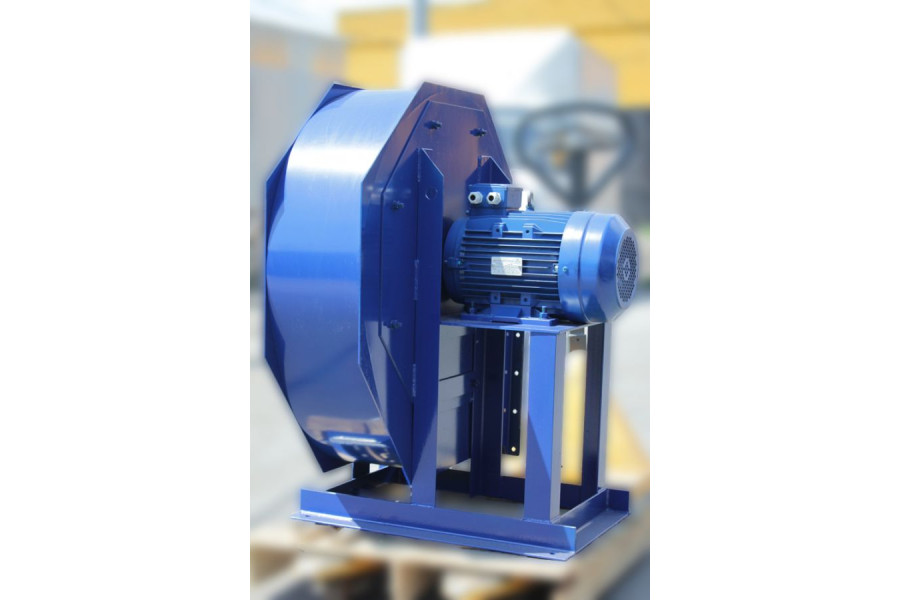

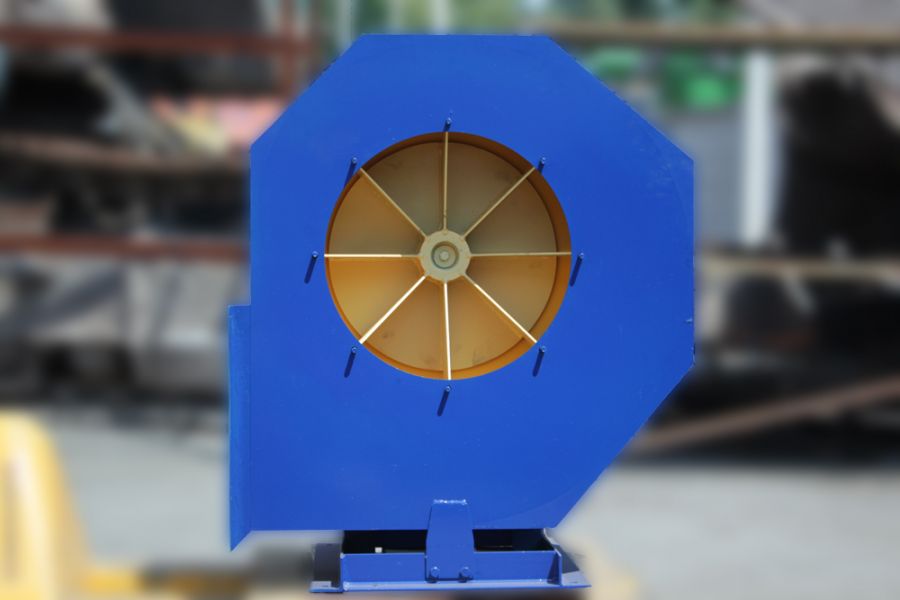

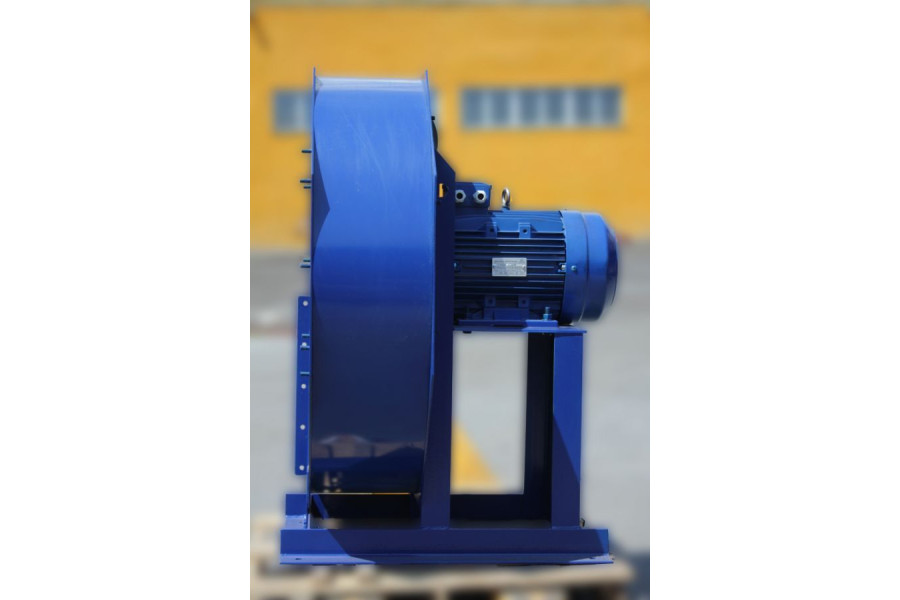

Centrifugal dust fan series VCP 5-45 #8 with electric motor Electric motor AIR 132 M6 7.5 Power kW 1000 Vol./Min, made under the scheme of execution #1 impeller directly on the motor shaft is made of carbon steel

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VCP 5-45 #8 w/ motor AIR 132 M6 7.5 kW 1000 rpm, execution 1
56 336₴
Specifications
Common
Model
VCP 5-45 #8
Electric motor AIR 132 M6
Common
Model
AIR 132 M6
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
38
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
7.5
Vol./Min
1000
n, vol./Min
960
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
84,1
Power factor, cosφ
0,8
Weight, kg
145
Consumed nominal current, In (A)
17
Dimension (height of rotation axis), mm
132
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,2
The ratio of starting current to the nominal, Istart/In
6,2
The ratio of starting torque to rated power, Mstart/Mn
2,1
