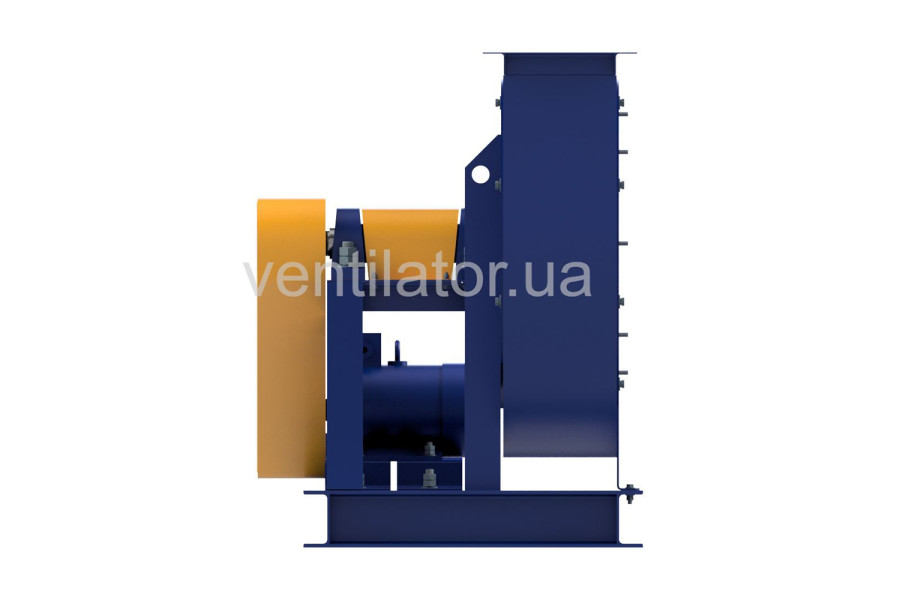

VCP 5-45 #3.15 w/ motor AIR 80 B2 2.2 kW 3000 rpm, execution 5

The centrifugal fan of the dust

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VCP 5-45 #3.15 w/ motor AIR 80 B2 2.2 kW 3000 rpm, execution 5
In Stock
Product Code: ID10576
37 666₴
Found cheaper?

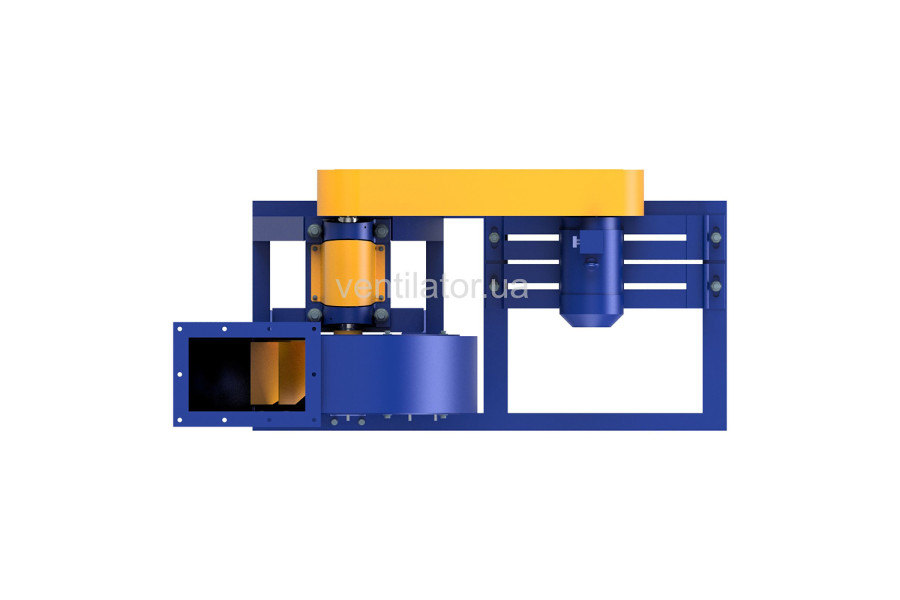

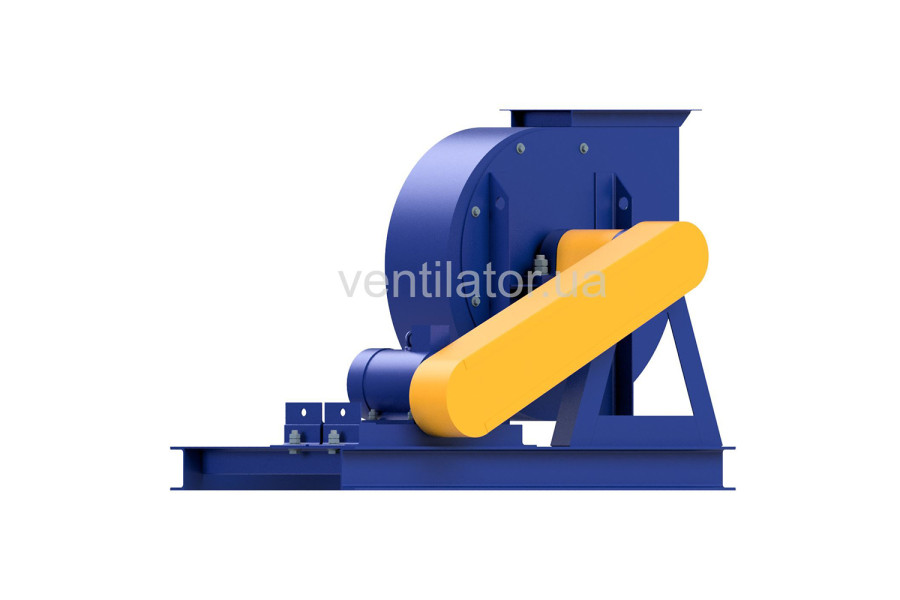

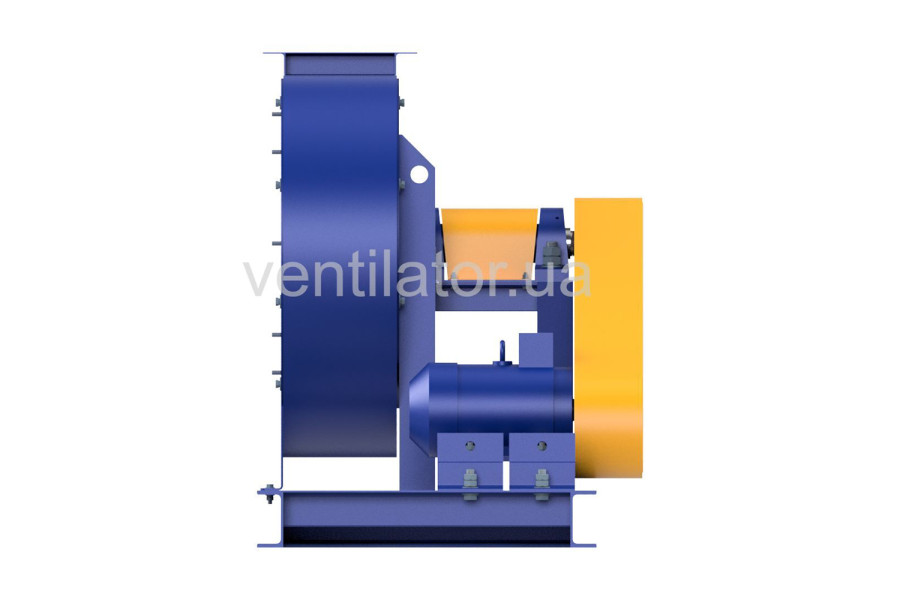

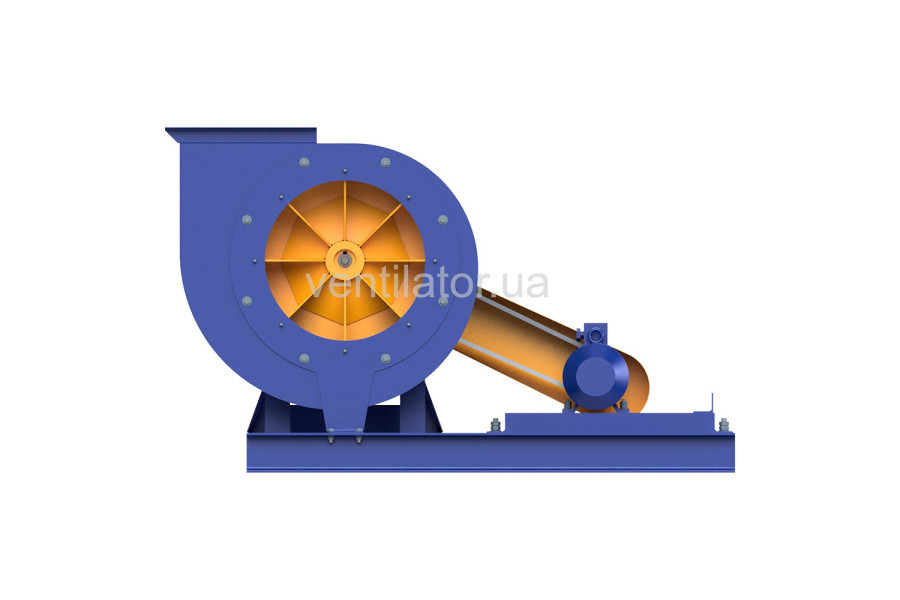

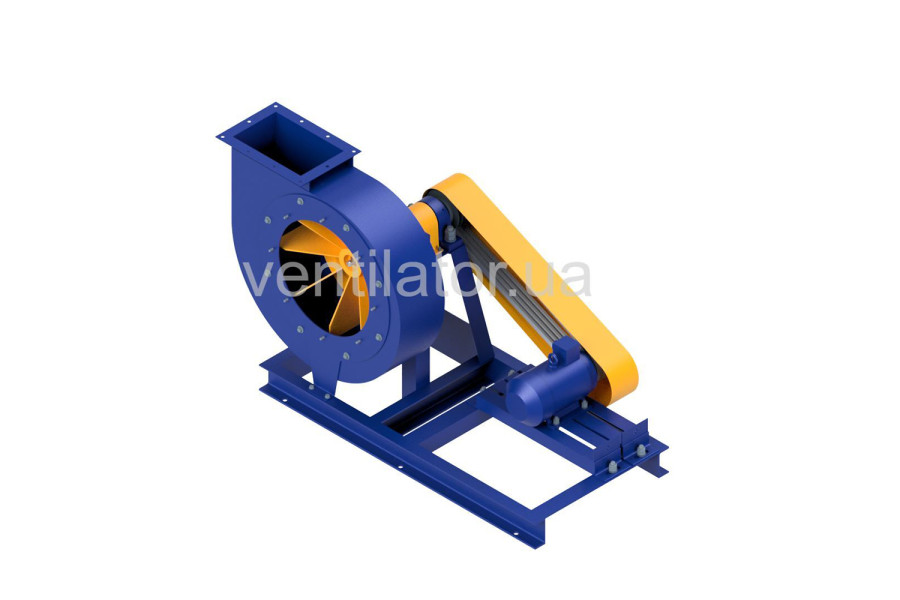

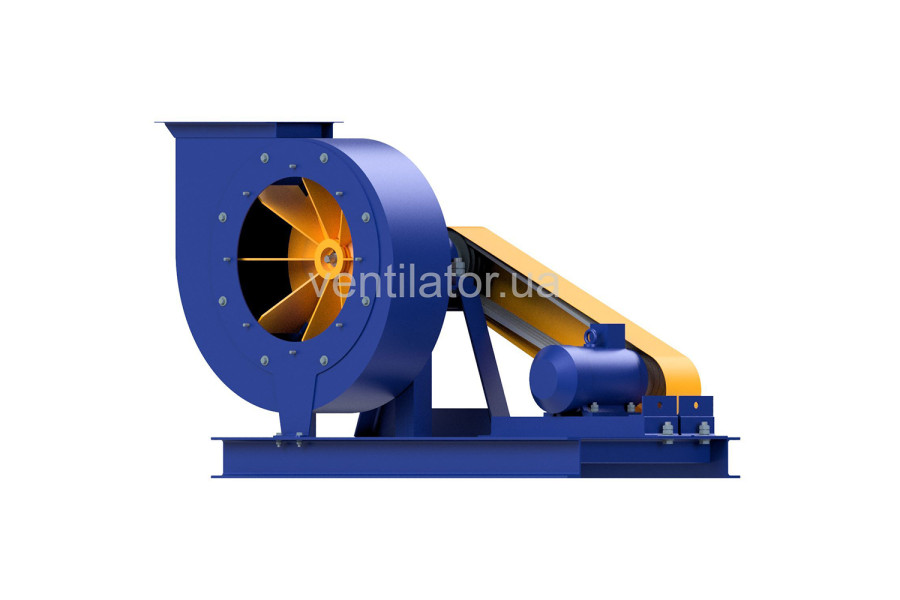

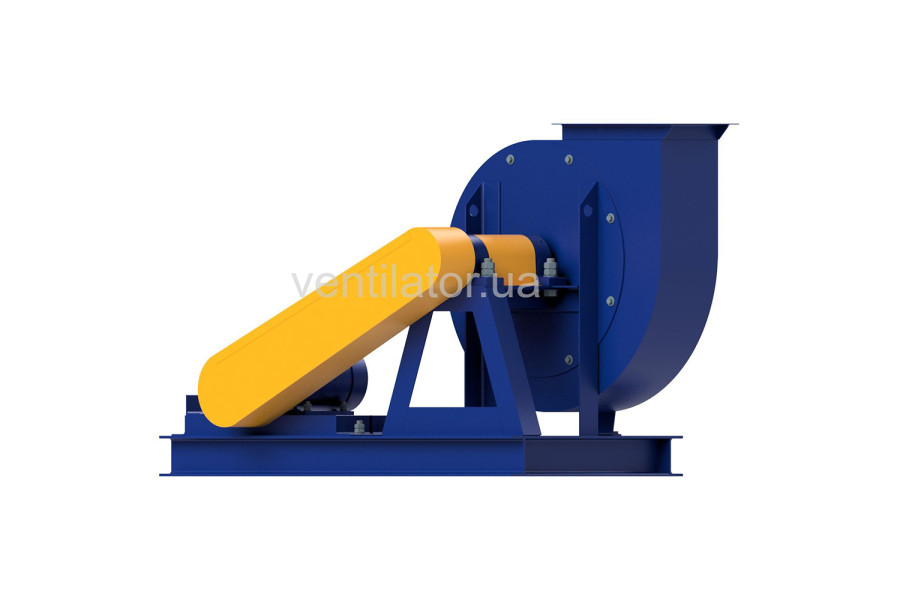

Centrifugal dust fan series VCP 5-45 #3,15 with electric motor Electric motor AIR 80 B2 2.2 Power kW 3000 Vol./Min, made under the scheme of execution #5 using a belt transmission made of carbon steel

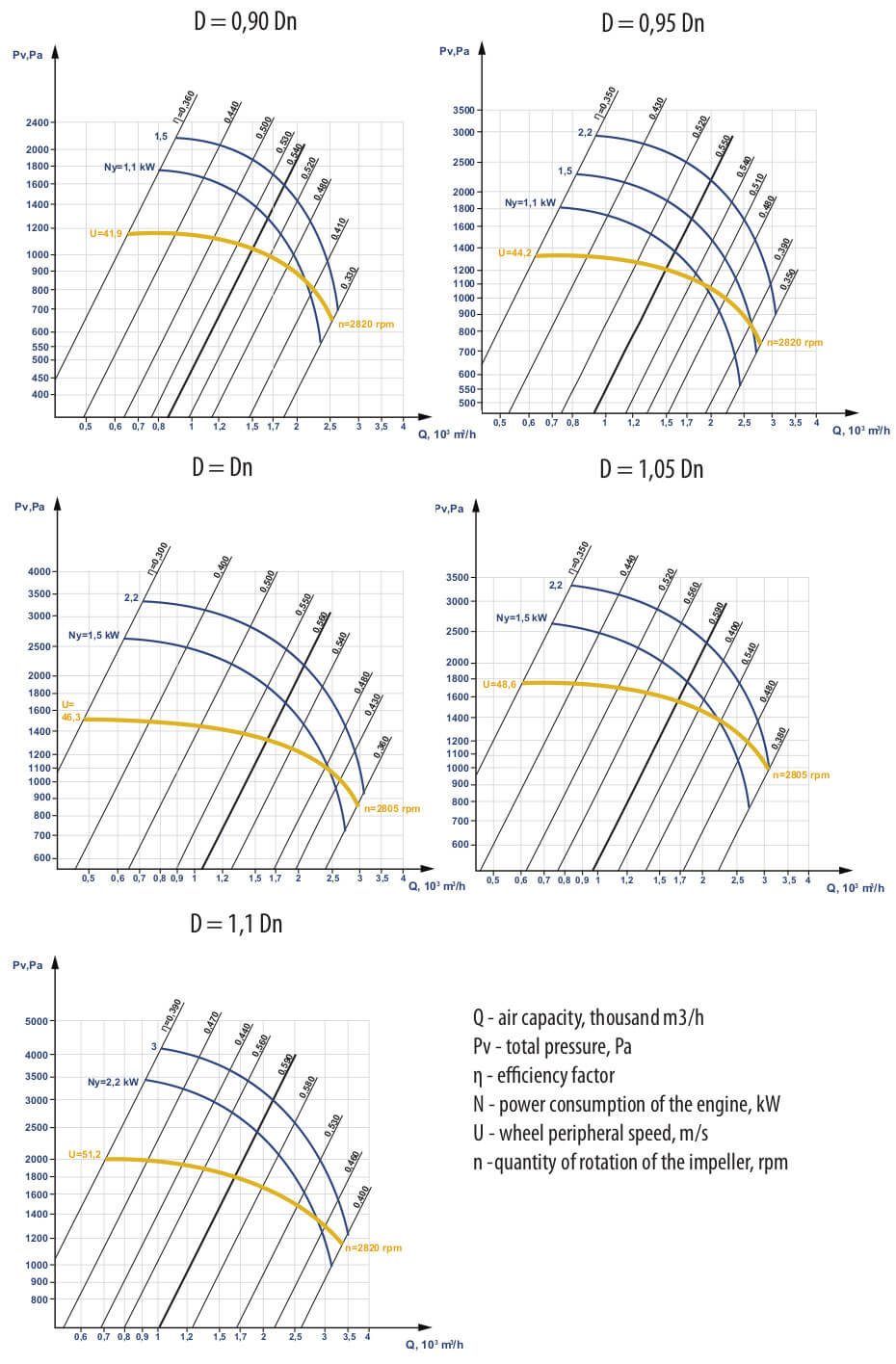

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.


Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VCP 5-45 #3.15 w/ motor AIR 80 B2 2.2 kW 3000 rpm, execution 5
37 666₴
Specifications
Common
Model
VCP 5-45 #3,15
Electric motor AIR 80 B2
Common
Model
AIR 80 B2
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
22
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
2.2
Vol./Min
3000
n, vol./Min
2840
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
80,6
Power factor, cosφ
0,85
Weight, kg
19,5
Consumed nominal current, In (A)
5
Dimension (height of rotation axis), mm
80
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
7,0
The ratio of starting torque to rated power, Mstart/Mn
2,2
