VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1

The centrifugal fan of the dust

Brand: КВЗ
0
All about product
Specification
Reviews 0
Questions0
Popular
VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1
VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1
VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1
VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1
VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1
VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1
VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1
VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1
VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1
VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1
In Stock
Product Code: ID37521
10 610₴
Found cheaper?

Centrifugal dust fan series VCP 5-45 #2,5 with electric motor Electric motor AIR 71 A2 [el.option_values.52.value ] Power kW 2740 Vol./Min, adapted for execution scheme #1, impeller directly the motor shaft is made of carbon steel

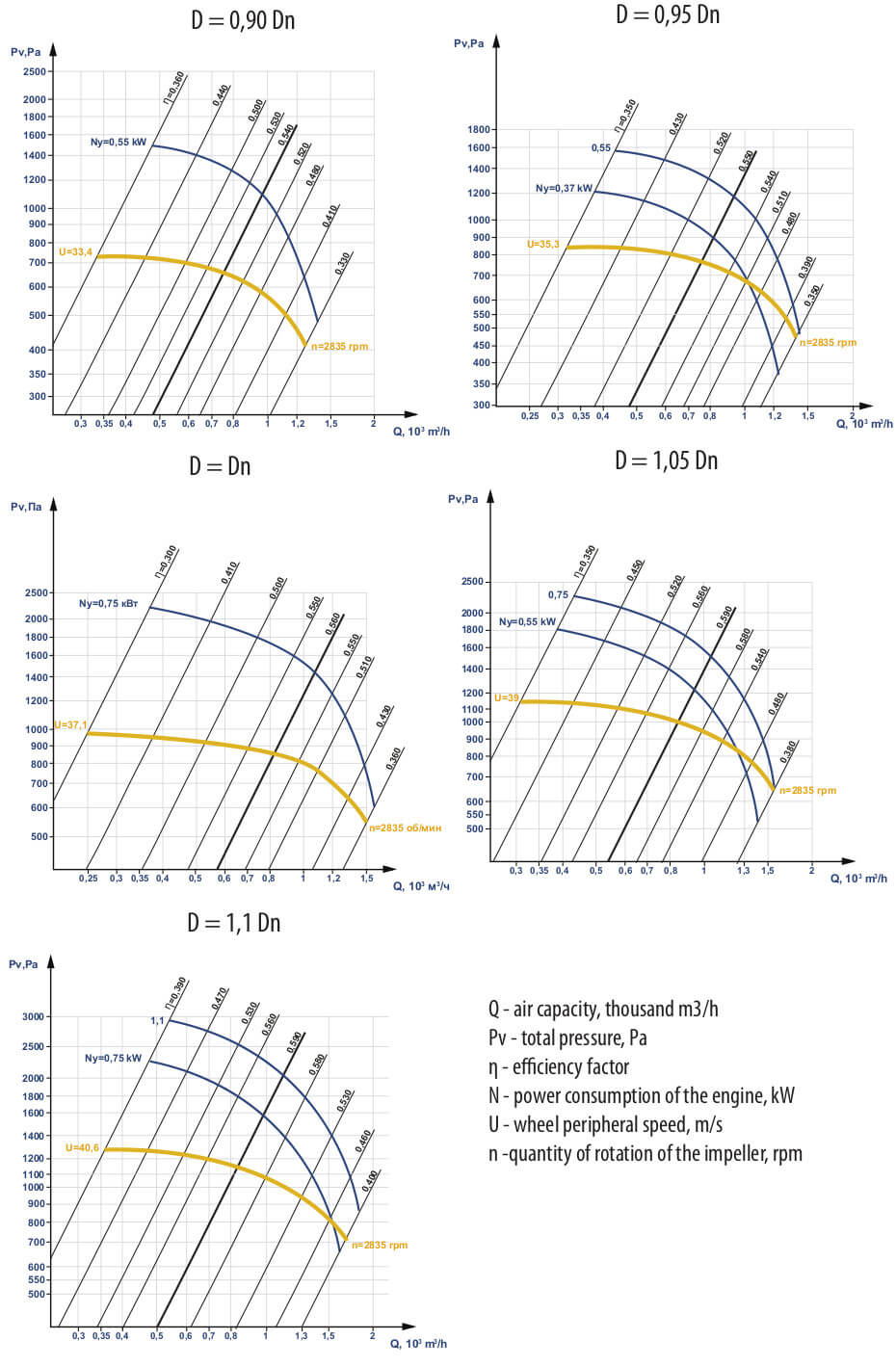

Fan working point: [option_values.88.value] m3/hour at a pressure of [option_values.89.value] Pa.

Productivity, м³/h:
Pressure, Pa:
Produc­tivity, m³/h:
Ultimate pressure, Pa:
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
VCP 5-45 #2.5 w/ motor AIR 71 A2 0.75 kW 3000 rpm, execution 1
10 610₴
Specifications
Common
Model
VCP 5-45 #2,5
Productivity, м³/h
Pressure, Pa
Max. transported air temperature, °C
Pollution limits, mg/m3
Weight, kg
Impeller revs, vol./Min
Produc­tivity, m³/h
The total sound power level, not more than, dB(A)
Ultimate pressure, Pa
Electric motor AIR 71 A2
Common
Model
AIR 71 A2
Motor type
asynchronous
Kind
general industrial
Motor series
AIR
Shaft diameter, mm
19
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
0.75
Vol./Min
2740
n, vol./Min
2740
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
75
Power factor, cosφ
0.83
Weight, kg
9
Consumed nominal current, In (A)
2.2
Dimension (height of rotation axis), mm
71
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2.3
The ratio of starting current to the nominal, Istart/In
6.1
The ratio of starting torque to rated power, Mstart/Mn
2.2
