V 2.3-130 #5 w/motor AIR 80 A4 1.1 kW 1500 rpm

Medium-pressure axial fan series V 2,3-130 #5 (VO-46-130) with electric motor Electric motor AIR 80 A4 1.1 Power kW 1500 Vol./Min, made of carbon steel.

This axial fan is intended for moving air and other non-aggressive gas-air mixtures, whose aggressiveness toward carbon steel is not higher than that of air at temperatures from -40°C to +40°C. The working medium must not contain sticky substances, fibrous materials, or dust and other solid particles exceeding 10 mg/m³. The fans are designed for operation in macroclimatic areas with a temperate (U) or tropical (T) climate (placement category 2) and are not suitable for use under atmospheric precipitation.

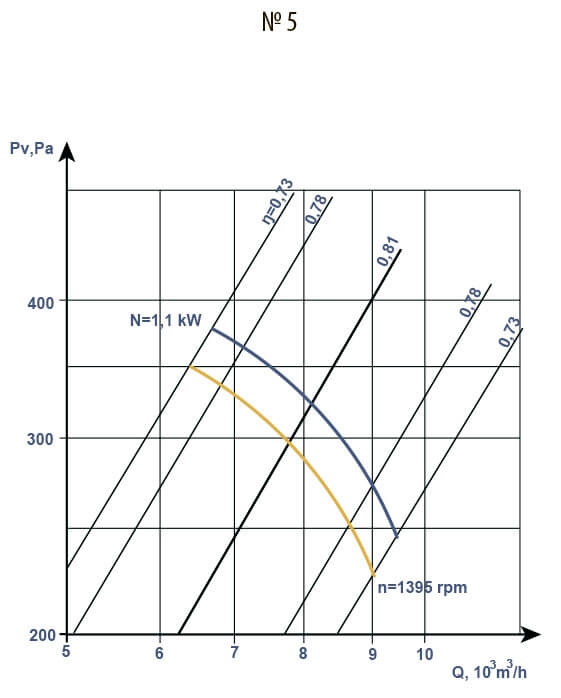

General information about medium-pressure axial fans V 2.3-130 #5 w/motor AIR 80 A4 1.1 kW 1500 rpm (VO-46-130):

• medium pressure;
• single-sided suction;
• casing with impeller;
• number of blades — 12 pcs;
• material — carbon steel;
• fan coating — powder-coated;
• execution No.1 — right-hand rotation;
• electric motor — general-purpose (explosion-proof — on request);
• power supply — 380 V.

Application of medium-pressure axial fans V 2.3-130 #5 w/motor AIR 80 A4 1.1 kW 1500 rpm (VO-46-130):

Fans V 2.3-130 #5 w/motor AIR 80 A4 1.1 kW 1500 rpm (VO-46-130) are used in air heating systems, supply and exhaust ventilation, air conditioning, as well as various industrial process equipment, provided they meet applicable standards. The V 2.3-130 series offers the highest pressure among axial fans of its class while delivering excellent performance. These fans can be installed both in standard ducts with low aerodynamic resistance and in walls of buildings or openings of technological equipment.

Versions of medium-pressure axial fans V 2.3-130 #5 w/motor AIR 80 A4 1.1 kW 1500 rpm (VO-46-130) (available on request):

• carbon steel;
• stainless steel (on request);
• dissimilar metals (on request).

Design and operating principle of medium-pressure axial fan V 2,3-130 #5 (VO-46-130):

The operating principle of the axial fan lies in moving air by transmitting rotational energy from the electric motor shaft to the fan impeller. The V 2,3-130 #5 (VO-46-130) fan with electric motor Electric motor AIR 80 A4 1.1 Power kW 1500 Vol./Min consists of the following main components:

• impeller;
• casing;
• electric motor Electric motor AIR 80 A4 1.1 Power kW 1500 Vol./Min.

Design features of V 2.3-130 axial fans

This series is produced only according to design version No.1 with right-hand rotation of the impeller. The direction of rotation is clockwise when viewed from the electric motor side, and the airflow is directed from the impeller toward the motor.
