Protective casing KZR-Z MZS

Protective casings

Brand: КВЗ
0
All about product
Description
Dimensions
Reviews 0
Questions0
New
Popular
Protective casing KZR-Z MZS
Protective casing KZR-Z MZS
Protective casing KZR-Z MZS
Protective casing KZR-Z MZS
Protective casing KZR-Z MZS
Protective casing KZR-Z MZS
Protective casing KZR-Z MZS
Protective casing KZR-Z MZS
In Stock
Product Code: ID38003
negotiable

The KZR-Z MZS protective cover is designed to isolate the ventilation system from the external environment in the event of an air shock wave. It provides mechanical protection of the ventilation system section from damage and atmospheric precipitation. It is installed on air ducts with a diameter from 100 to 355 mm using a bolted connection to a special adapter.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Protective casing KZR-Z MZS
Description

Protective Cover KZR-Z MZS
The KZR-Z MZS protective cover is designed to isolate the ventilation system from the external environment in the event of an air shock wave. It provides mechanical protection of the ventilation system section from damage and atmospheric precipitation. It is installed on air ducts with a diameter from 100 to 355 mm using a bolted connection to a special adapter. The structure is made of steel and is equipped with a protective grille that prevents atmospheric precipitation (rain, snow) and mechanical damage. The installation of the cover must ensure free access for maintenance and repair of the ventilation system, guaranteeing its uninterrupted operation.

Overall and Connection Dimensions of KZR-Z MZS Protective Covers

Model D, mm D1, mm D2, mm
KZR-Z MZS 320x280-100100160200
KZR-Z MZS 320x280-125125185225
KZR-Z MZS 320x280-150150210250
KZR-Z MZS 320x280-160160220260
KZR-Z MZS 320x280-180180240280
KZR-Z MZS 320x280-200200260300
KZR-Z MZS 320x280-250250310350
KZR-Z MZS 320x280-280280340380
KZR-Z MZS 320x280-300300360400
KZR-Z MZS 320x280-325325385425
KZR-Z MZS 320x280-350350410450
KZR-Z MZS 320x280-355355415455

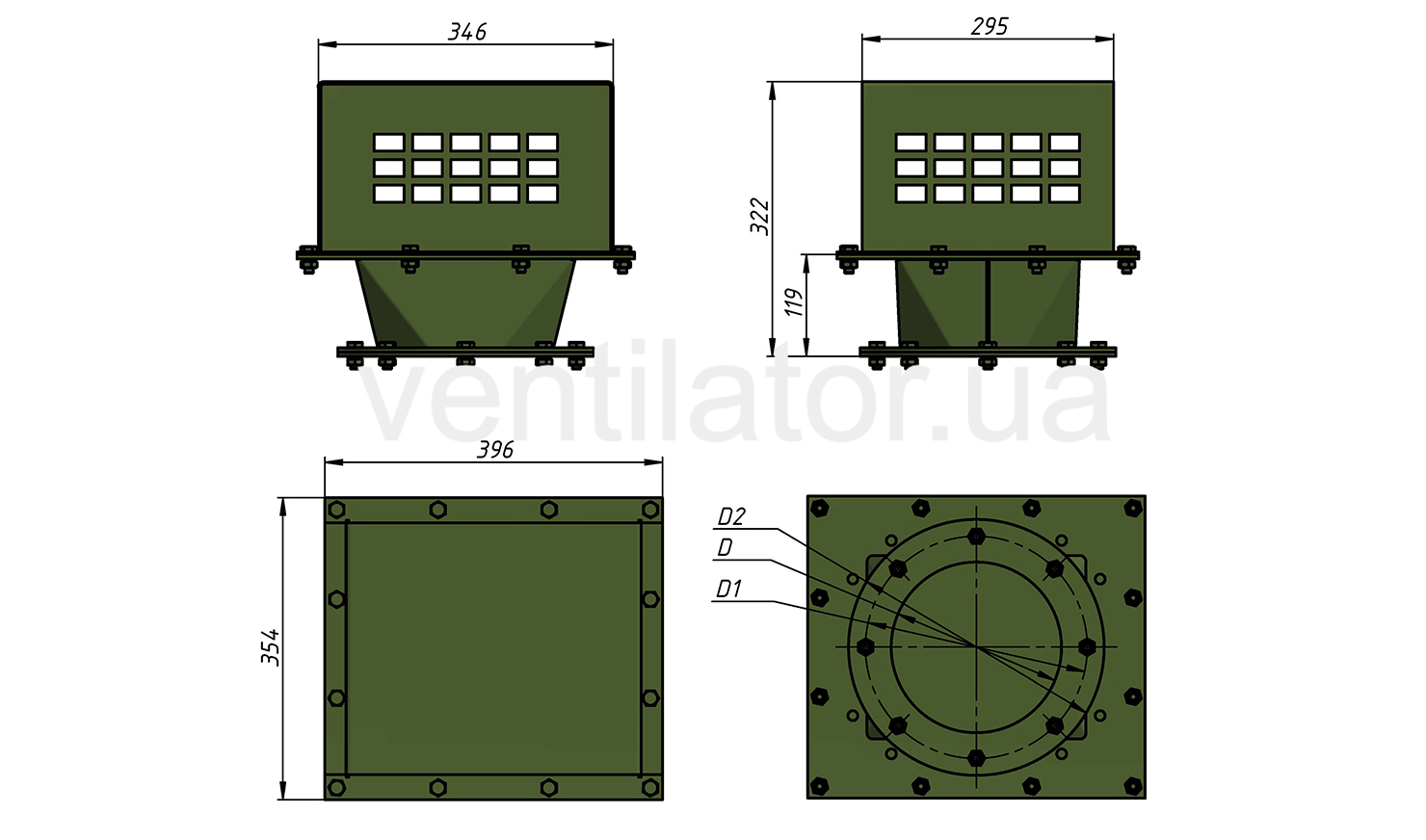

Overall dimensions of Protective casing KZR-Z MZS
