PAM-32

Axial fan

Brand: КВЗ
0
All about product
Description
Specification
Dimensions
Reviews 0
Questions0
Popular
PAM-32
PAM-32
PAM-32
PAM-32

In Stock
Product Code: ID17010
87 099₴
Found cheaper?

The main purpose of the PAM-32 fan is air aeration, that is, creating a powerful air flow with uniform water spray and directing it to the required area of the room.

Productivity, м³/h:32000
Pressure, Pa:265
Whatsapp
Telegram
Viber
Messenger
+38 (044) 238-24-81
+38 (066) 700-01-48
Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
PAM-32
87 099₴
Description

General Information

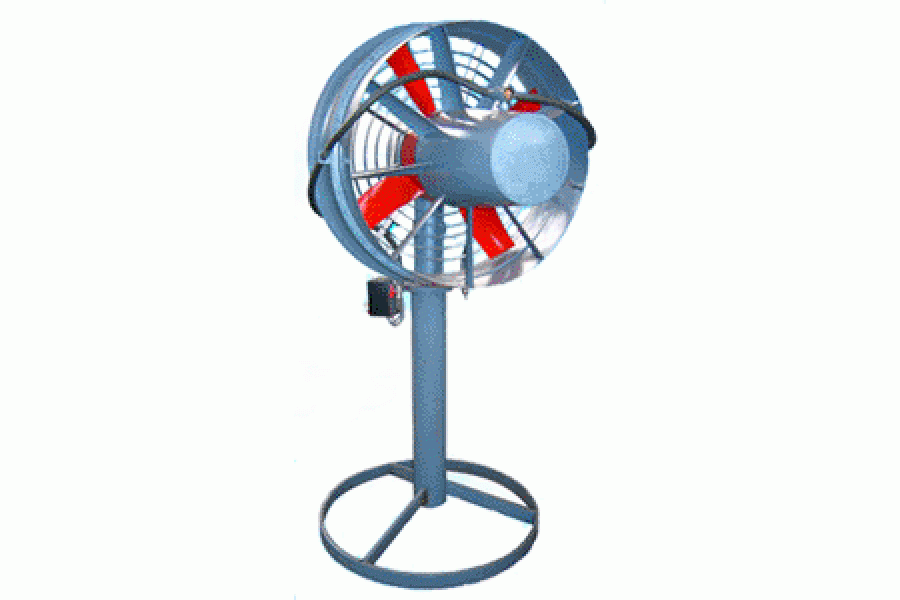

The low-pressure axial fan PAM-32 is made of carbon steel and coated with polymer-powder paint, providing reliable protection against corrosion and a long service life.

Design features of the housing:

  • Standard version: fixed housing;
  • Options: housing rotation left/right or up/down for convenient adjustment of the airflow direction.

Equipment warranty — 2 years.

Application scope
The main purpose of the PAM-32 fan is air aeration, i.e. creating a powerful air flow with uniform water spray and directing it to the required area of the room.

Most often, fans of this series are used in hot workshops of metallurgical and machine-building plants, where high temperature and extremely low air humidity are observed.

The PAM-32 aerator is also effective in many other industries where it is necessary to create optimal technological conditions or improve the microclimate for personnel.

Additional features:

  • Directed blowing of equipment;
  • Improved air circulation indoors.

For ease of operation, models with a rotating housing are provided, allowing the airflow direction to be easily changed.

Specifications
Common
Model
PAM-32A
Productivity, м³/h
32000
Pressure, Pa
265
Efficiency, %
80
Weight, kg
170
30
1,5
Air consumption at the factory setting, m3/h
105
Impeller diameter, mm
800
Electric motor AIR 100 L4
Common
Model
AIR100L4
Motor type
asynchronous
Kind
general purpose industrial motor
Motor series
AIR
Shaft diameter, mm
28
Voltage, V
220/380
Frequency of the current, Hz
50
Power kW
4.0
Vol./Min
1500
n, vol./Min
1420
Climatic performance
UZ
Class of protection, IP
54
Efficiency, %
82,8
Power factor, cosφ
0,81
Weight, kg
37
Consumed nominal current, In (A)
9,3
Dimension (height of rotation axis), mm
100
Phase
3-phase
The ratio of max. torque to rated power, Mmax/Mn
2,3
The ratio of starting current to the nominal, Istart/In
7
The ratio of starting torque to rated power, Mstart/Mn
2,3

Overall dimensions of the fan PAM-32
