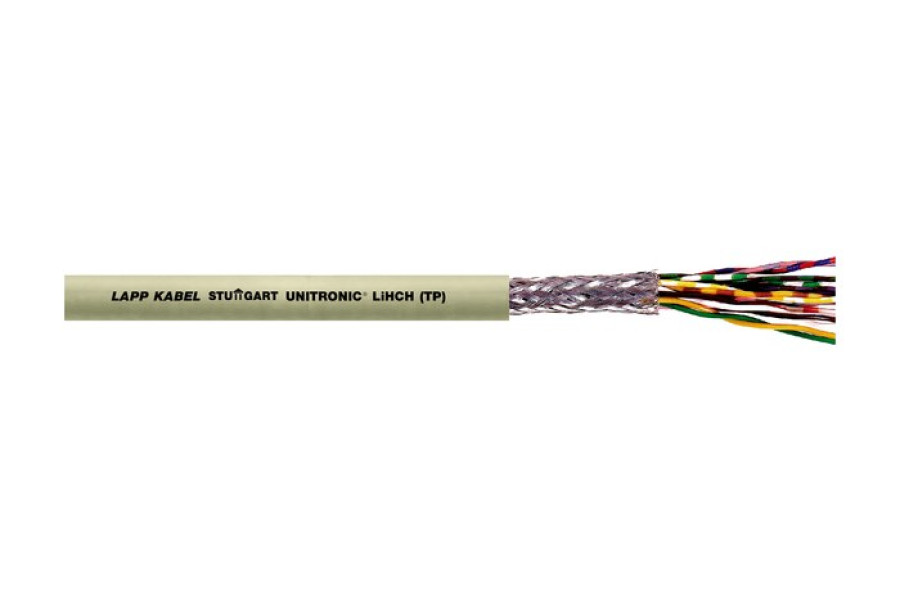

UNITRONIC Lihch TP 8X2X0,5

Application range halogen-free data transmission cable UNITRONIC Lihch TP 8X2X0,5

• Suitable for areas with a high density of people as well as high-value property that must be protected in the event of a fire
• For use within public buildings, transport systems and industrial plants
• For data processing, measurement and control engineering, safety related systems and as electronics cable
• For use in computer systems, instrumentation systems, office equipment, balances -
  wherever screened, halogen-free, small-diameter cables are needed.

Benefits halogen-free data transmission cable UNITRONIC Lihch TP 8X2X0,5

• Halogen-free: to protect human life and valuable assets in the event of a fire, through low smoke density and low amount of corrosive gases
• Low capacitance due to polyolefin-based insulation
• Overall braid minimises electrical
  interference
• Decoupling of circuits by means of
  twisted-pair (TP) design (crosstalk effects)

Product Make-up halogen-free data transmission cable UNITRONIC Lihch TP 8X2X0,5

• Fine-wire strand made of bare copper wires
• Core insulation made of special halogen-free compound
• TP structure
• Tinned-copper braiding
• Outer sheath made of special halogen-free compound
  Outer sheath colour: pebble grey (RAL 7032)

Norm references/Approvals halogen-free data transmission cable UNITRONIC Lihch TP 8X2X0,5

• Based on VDE 0812

Product features halogen-free data transmission cable UNITRONIC Lihch TP 8X2X0,5

• Flame-retardant according IEC 60332-1-2
• Low smoke zero halogen (LSZH)
• Halogen-free according to IEC 60754-1
  (amount of halogen acid gas)
  Corrosiveness of combustion gases according to EN 50267-2-3 (degree of acidity)
• Low smoke density according to IEC 61034-2
