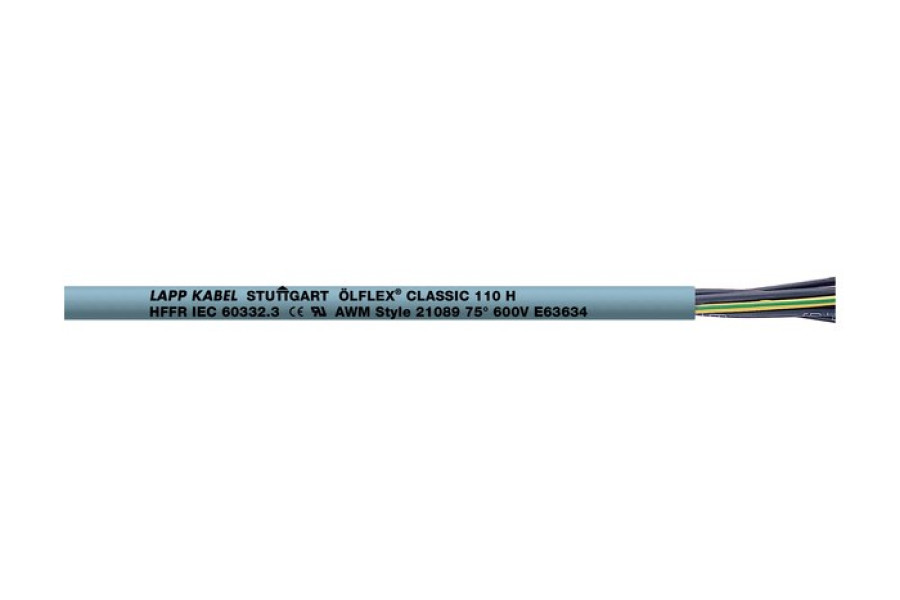

OLFLEX CLASSIC 110 H 25 G0,75''

Halogen-free cable Control actuators

Brand: Lapp Kabel
0
All about product
Description
Specification
Reviews 0
Questions0
Popular
OLFLEX CLASSIC 110 H 25 G0,75''
In Stock
Product Code: ID32967
negotiable

Control cable [option_values.65.value]. Number of cores: [option_values.85.value]; Per conductor: [option_values.64.value] mm2; Outer diameter: [option_values.32.value] mm; Nominal voltage: [option_values.50.value] V.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
OLFLEX CLASSIC 110 H 25 G0,75''
Description

Application range control cable OLFLEX CLASSIC 110 H 25 G0,75''

  • Public buildings like airports or railway stations
  • Plant engineering
    Industrial machinery
    Heating and air-conditioning systems
    Stage applications
  • Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
  • Note: for the use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79 Ed. 2012: please see the catalogue appendix table T29

Benefits control cable OLFLEX CLASSIC 110 H 25 G0,75''

  • Easy handling and installation due to very flexible cable type
  • Wide application range due to excellent product features

Product Make-up control cable OLFLEX CLASSIC 110 H 25 G0,75''

  • Fine-wire strand made of bare copper wires
  • Core insulation: Halogen-free
  • Outer sheath made of special halogen-free compound, grey (RAL 7001)

Norm references/Approvals control cable OLFLEX CLASSIC 110 H 25 G0,75''

  • UL AWM style 21089 is introduced into the serial manufacturing and step by step into the stock
  • Based on EN 50525-2-11
  • Based on EN 50525-2-51

Product features control cable OLFLEX CLASSIC 110 H 25 G0,75''

  • Flame-retardant according to IEC 60332-1-2
    (flame spread on a single cable)
  • No flame-propagation according to IEC 60332-3-24 respectively IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)
  • Halogen-free according to IEC 60754-1
    (amount of halogen acid gas)
    Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
  • Low smoke density according to IEC 61034-2
  • Oil-resistant according to EN 60811-404
    and UL OIL RES I and UL OIL RES II
  • UV and weather-resistant according to ISO 4892-2
  • Ozone-resistant according to EN 50396
Specifications
Common
Max. transported air temperature, °C
-30°C to +70
with GN-YE protective conductor
Min. transported air temperature, °C
-40°C to +80
