KV flow meter valve

Name: KV flow meter valve
Brand: КВЗ

Flow meter valve

Brand: КВЗ

All about product

Description

Reviews 0

Questions0

New

Popular

In Stock

Product Code: ID38005

negotiable

The KV air flow meter valve is designed to monitor the amount of air supplied by the fan into the room. It is used in general ventilation systems, providing visual control of the air supply. It is installed on the fan flange on the discharge side in a vertical position.

Delivery

Nova Poshta

Delivery (saving 10% of the delivery cost)

Self-delivery

KV flow meter valve

Description

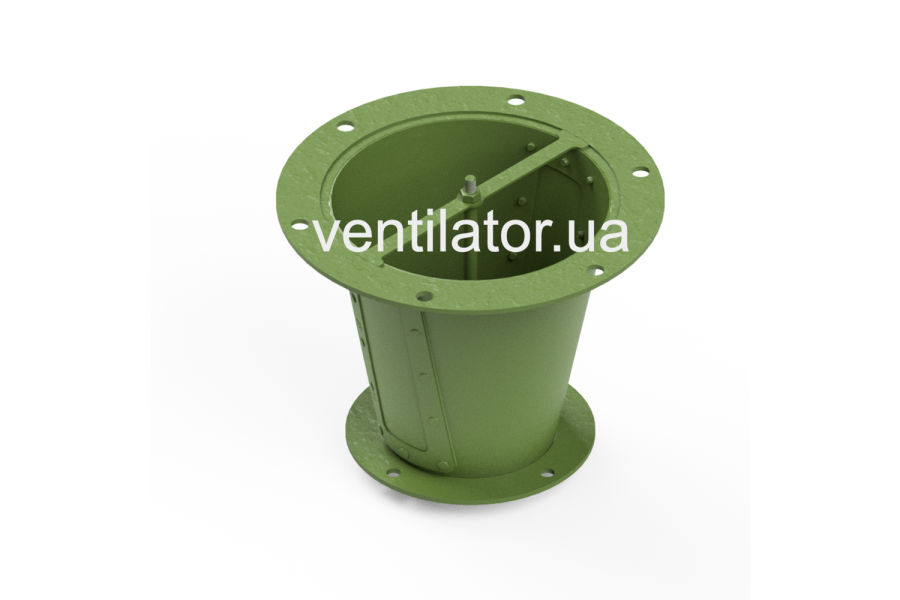

Air Flow Meter Valve KV

The KV air flow meter valve is designed to monitor the amount of air supplied by the fan into the room. It is used in general ventilation systems, providing visual control of the air supply. It is installed on the fan flange on the discharge side in a vertical position.

Structurally, the valve consists of a conical body with an inlet diameter of 90 mm and an outlet diameter of 150 mm, a plastic disc, a brass shaft, and support plates. The body has two rectangular inspection windows with a scale, allowing the measurement of air flow. The body is made of carbon steel with a powder coating.

The valve can operate within a temperature range from -20°C to +40°C, in climate category U2 according to GOST 15150. The weight of the valve is 3 kg.

Technical Specifications KV

Parameter	Value
Purpose	Air flow control in ventilation systems
Inlet diameter, mm	90
Outlet diameter, mm	150
Body material	Carbon steel with powder coating
Weight, kg	3
Temperature range, °C	-20…+40
Climate category	U2 according to GOST 15150
