KVV flow meter valve

Description

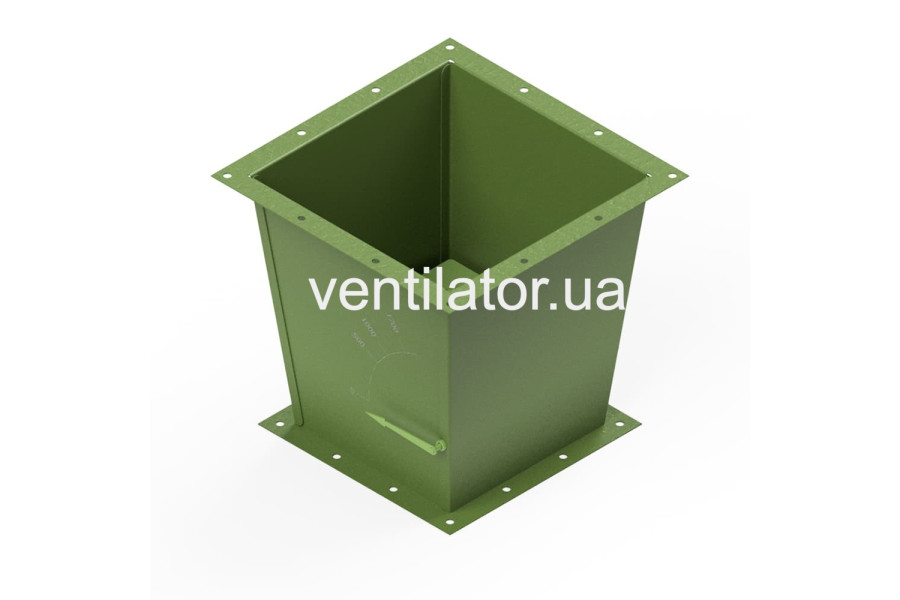

Rectangular air flow meter and shut-off damper KVV
The rectangular air flow meter and shut-off damper KVV is designed to measure air flow when operating ERV-3.15 and ERV-4 fans with manual or electric actuators. It is used to shut off the outlet of the fan's pressure duct when the fan stops or its capacity decreases. Installed on the flange at the discharge side. The welded structure is made of sheet steel with a powder coating RAL 7016, ensuring durability and reliability. Operating temperature range: -20°C to +40°C. Installed in a vertical position.

Specifications KVV-2.5

Air flow, m³/h	500	1000	1250	1400	1500	1630	1750
Resistance, Pa	28.44	20.59	15.69	17.16	19.12	22.06	24.52

Specifications KVV-3.15

Air flow, m³/h	1000	1500	1750	2000	2500	2700
Resistance, Pa	33.34	31.38	29.42	28.44	26.48	30.40

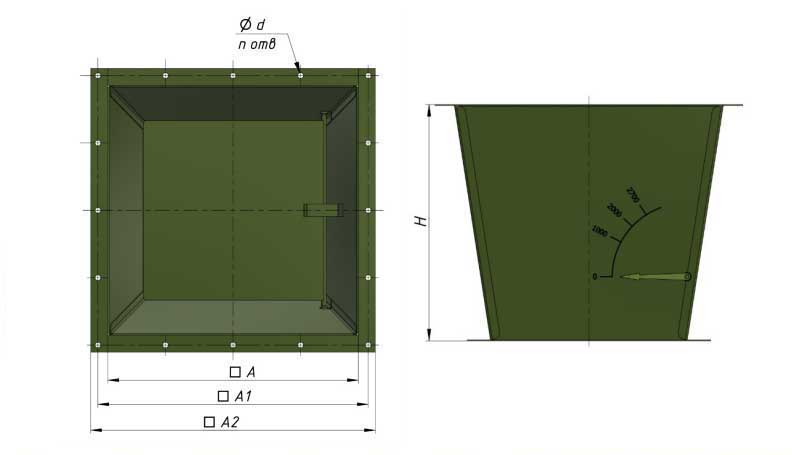

Overall dimensions of KVV flow meter valve
