K-G double hermetic valve

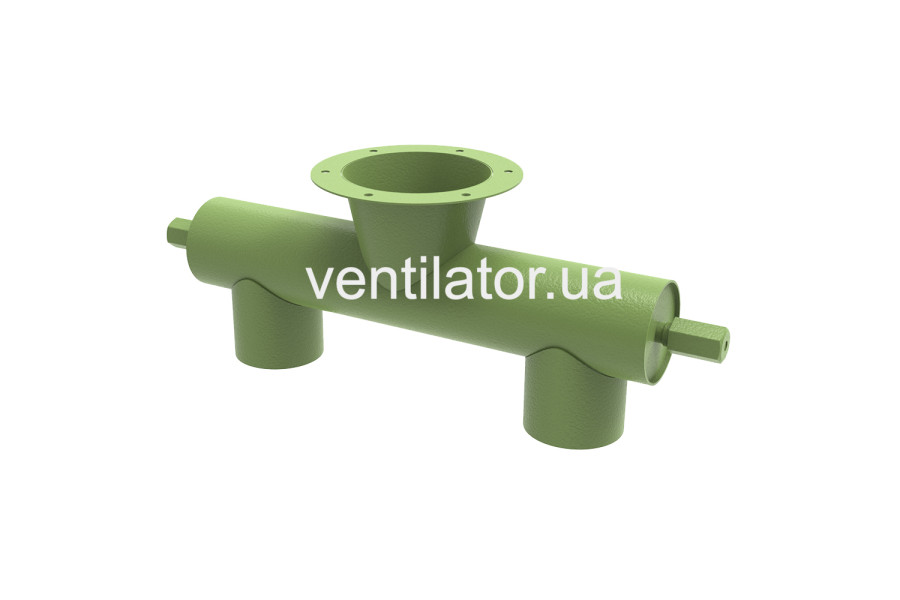

Double Hermetic Valve KGP
The double hermetic valve KGP is designed to switch the operation of a filter-ventilation unit from ventilation mode to filtration mode or to completely disconnect the unit from the ventilation system. The valve design includes one inlet pipe with a diameter of 150 mm and a flange for connection to an air intake duct or dust filter, and two outlet pipes with a diameter of 102 mm for connection to the bypass line and the unit's absorber filters. The inlet openings are closed by angular hermetic valves, which are pressed by turning the handle onto the valve's stuffing box. The valve is made of carbon steel with a powder coating.

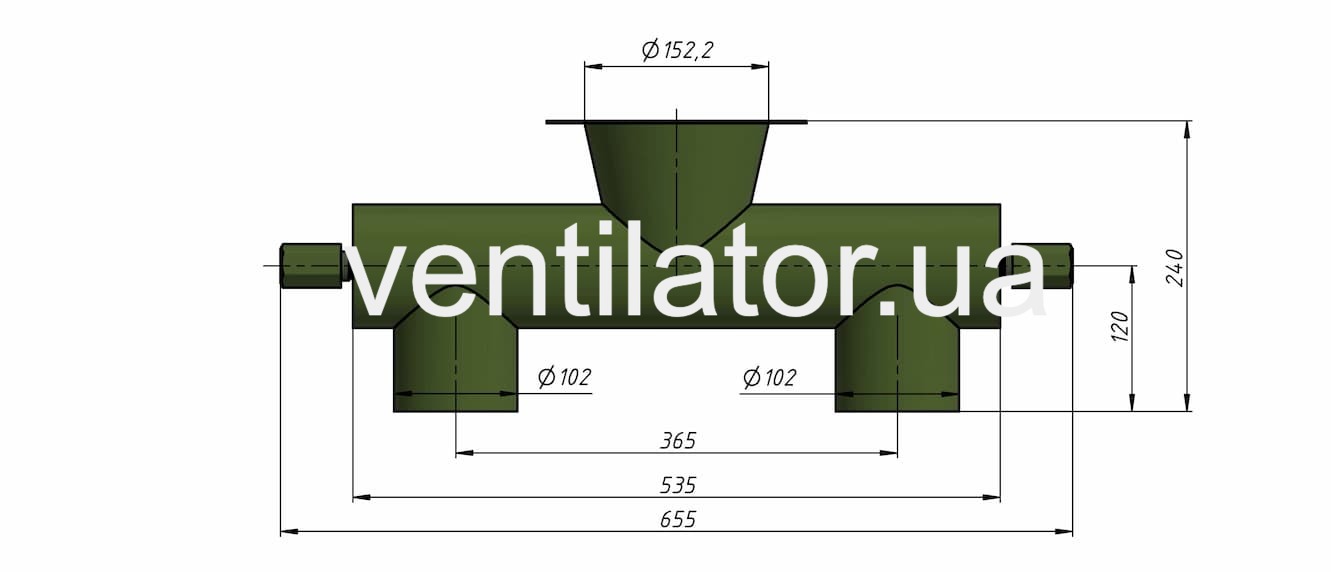

Overall and connection dimensions of KGP valves

Main design elements:

1. Valve body
2. Inlet pipe with flange
3. Two outlet pipes
4. Hermetic angular valves
5. Stuffing box unit with handle
