Hermetic valve KGRR with reducer

Hermetic valves

Brand: КВЗ
0
All about product
Description
Dimensions
Reviews 0
Questions0
New
Popular
Hermetic valve KGRR with reducer
In Stock
Product Code: ID38012
negotiable

The KGRR damper is installed in general industrial ventilation systems and is designed to reliably isolate one room from another or from the outside environment. It is intended for moving air in ventilation systems free from mechanical impurities, sticky, or fibrous substances. The damper serves as a shut-off device and is not intended for airflow regulation.

Delivery
Nova Poshta Nova Poshta
Delivery (saving 10% of the delivery cost) Delivery (saving 10% of the delivery cost)
Self-delivery Self-delivery
Hermetic valve KGRR with reducer
Description

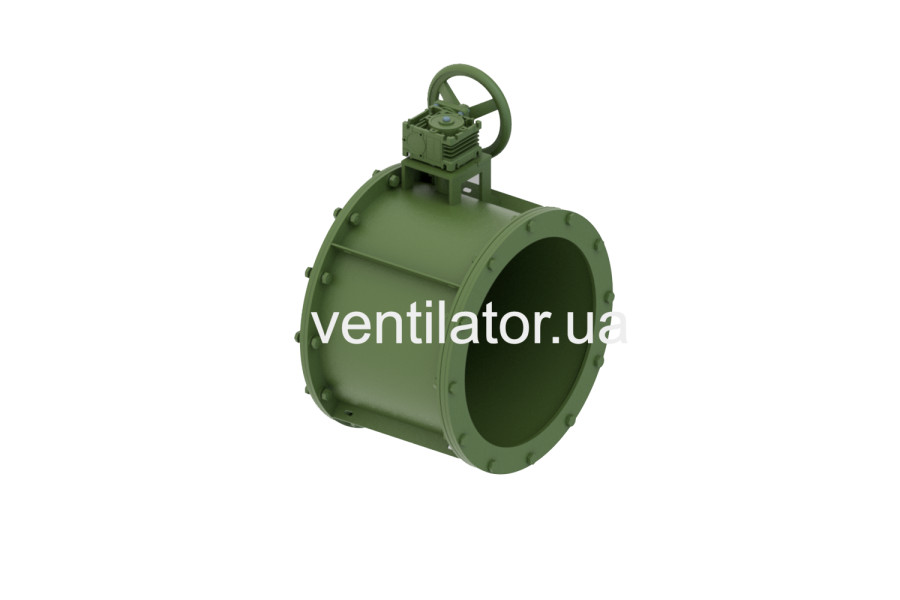

Round Airtight Damper KGRR
The KGRR damper is installed in general industrial ventilation systems and is designed to reliably isolate one room from another or from the outside environment. It is intended for moving air in ventilation systems free from mechanical impurities, sticky, or fibrous substances. The damper serves as a shut-off device and is not intended for airflow regulation.

Operating temperature range: from -45°C to +40°C. Climate version – U2 according to GOST 15150.

Produced in three drive options: manual drive, manual gearbox, or electric drive with manual override. The body is made of carbon steel with a powder coating.


Technical Specifications of KGRR

ParameterValue
Working mediumVentilation system air
Temperature, °C-45…+40
Working pressure, MPa (kgf/cm²)0.005 (0.05)
ConnectionFlanged
Flow directionTowards the disc (to enhance gasket sealing)


Overall and Connection Dimensions

ModelDDnd, mmn, pcsA, mmB, mmC, mm
KGRR-100200100118338495205
KGRR-150250150118388520205
KGRR-200300200118445545205
KGRR-225325225118470560205
KGRR-250350250118500580205
KGRR-3004003001112540605290
KGRR-3154003151112540605290
KGRR-4005004001112640630290

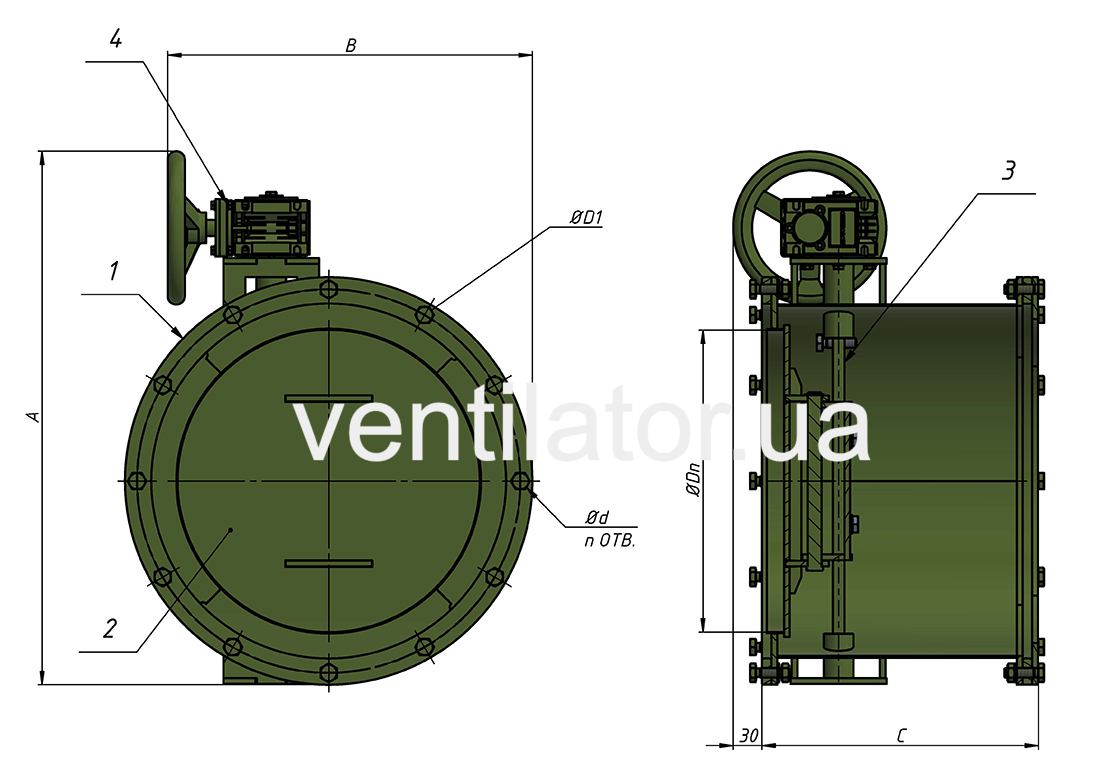

Overall dimensions of Hermetic valve KGRR with reducer
